CYLINDER

GS425 1979 (N) GENERAL EXPORT (E01)

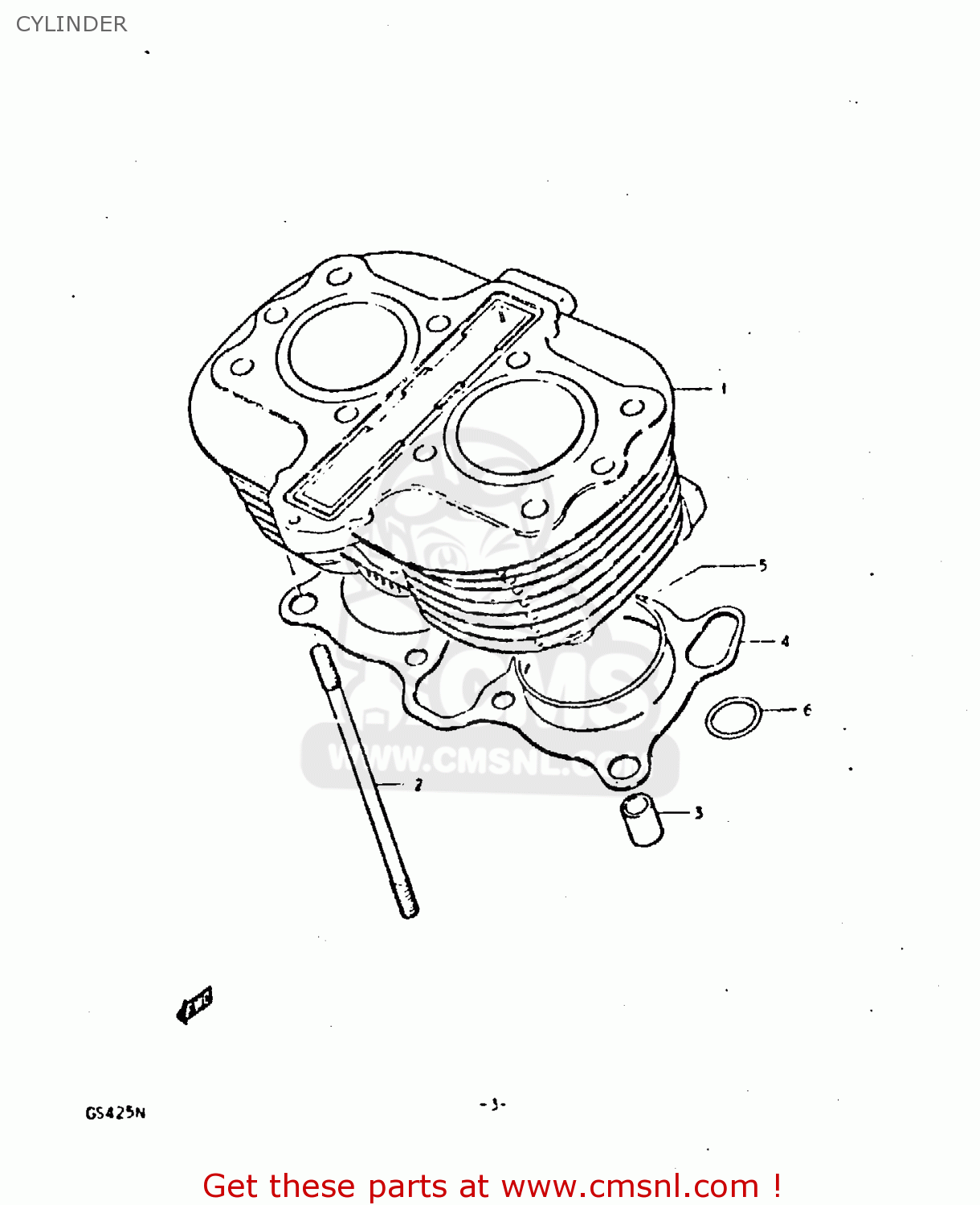

Cylinder diagram GS425 1979 (N) GENERAL EXPORT (E01)

CYLINDER GS425 1979 (N) GENERAL EXPORT (E01)

CYLINDER GS425 1979 (N) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1121044010
ref: 1

CYLINDER

€ 0.00

2

0910810028
ref: 2

STUD

€ 9.00

3

0920613001
ref: 3

PIN

€ 2.50

4

1124144000
ref: 4

GASKET,CYLINDER (MCA)

€ 16.00

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00
