MUFFLER
GS450EZ 1980 (T) USA (E03)

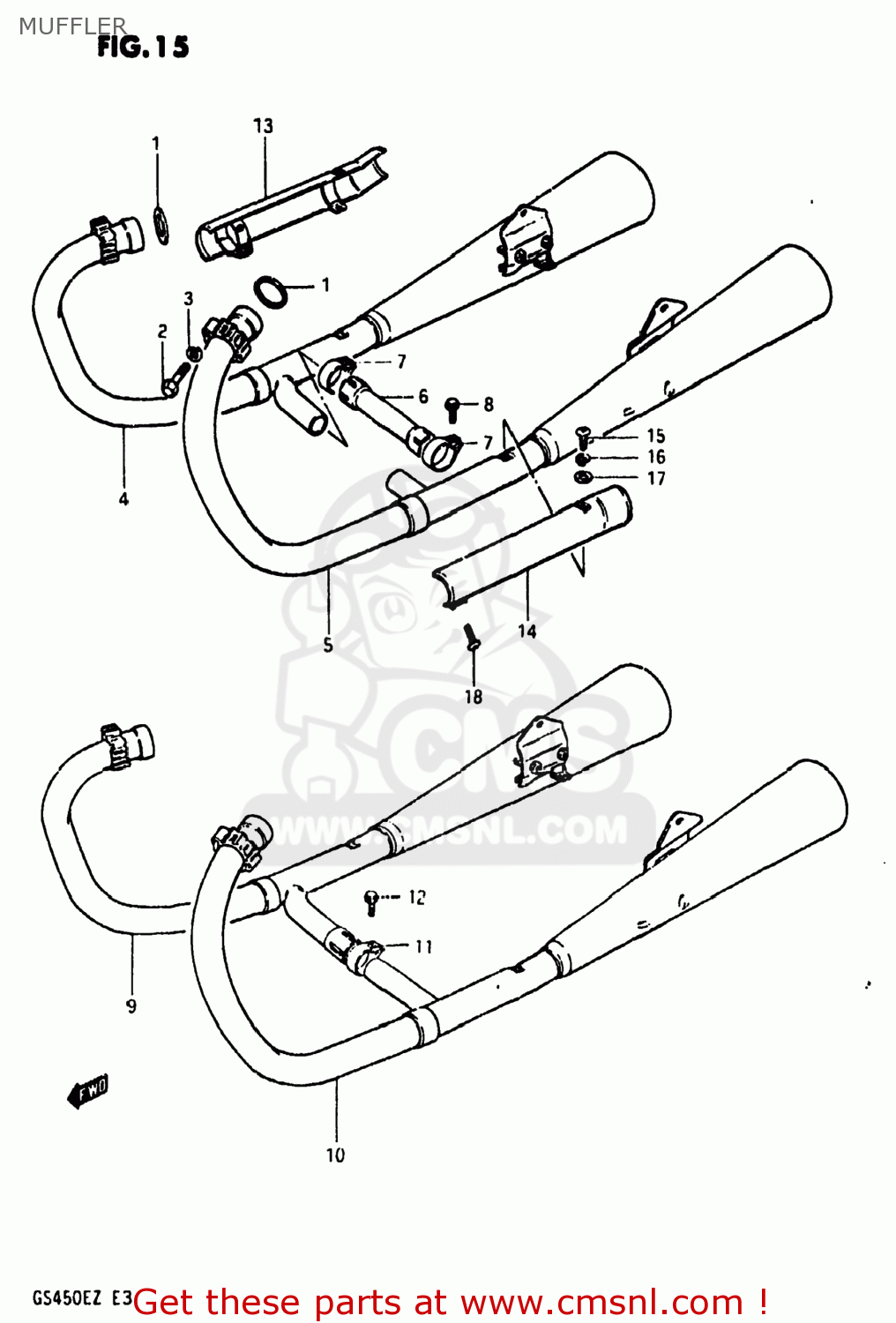

Muffler diagram GS450EZ 1980 (T) USA (E03)
MUFFLER GS450EZ 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418111010
ref: 1
14181-01D00
GASKET,EXHAUST PIPE (NAS)
€ 8.00
2
0110708358
ref: 2
01500-0835B
BOLT
€ 3.50
3
0832121088
ref: 3
08321-01087
LOCK WASHER
€ 2.00
4
1430144100
ref: 4
14301-44101-H01
MUFFLER ASSEMBLY
€ 385.00
5
1430244100
ref: 5
14302-44101-H01
MUFFLER ASSEMBLY
€ 296.00
6
1421144010
ref: 6
PIPE,EXHAUST COUPLER
€ 107.50
7
0940235601
ref: 7
CLAMP
€ 5.00
8
0151706258
ref: 8
01550-06257
BOLT
€ 2.50
9-1
1430144101
ref: 9-1
14301-44101-H01
MUFFLER ASSEMBLY
€ 385.00
9-2
1430144110
ref: 9-2
14301-44110-H01
MUFFLER ASSEMBLY
€ 151.50
10-1
1430244101
ref: 10-1
14302-44101-H01
MUFFLER ASSEMBLY
€ 296.00
10-2
1430244110
ref: 10-2
14302-44110-H01
MUFFLER ASSEMBLY
€ 118.50
11
0940235601
ref: 11
CLAMP
€ 5.00
12
0151706258
ref: 12
01550-06257
BOLT
€ 2.50
13-1
1478044100
ref: 13-1
14780-44900
COVER,MUFFLER
€ 25.00
13-2
1478044101
ref: 13-2
14780-44900
COVER,MUFFLER
€ 25.00
14-1
1479044100
ref: 14-1
14790-44900
COVER,MUFFLER
€ 33.50
14-2
1479044101
ref: 14-2
14790-44900
COVER,MUFFLER
€ 33.50
15
0211205088
ref: 15
02112-05087
SCREW
€ 2.00
16
0832121058
ref: 16
08321-0105A
LOCK WASHER
€ 2.00
17
0832221058
ref: 17
08322-01057
WASHER
€ 2.50
18
0211205168
ref: 18
02112-05167
SCREW
€ 2.50
