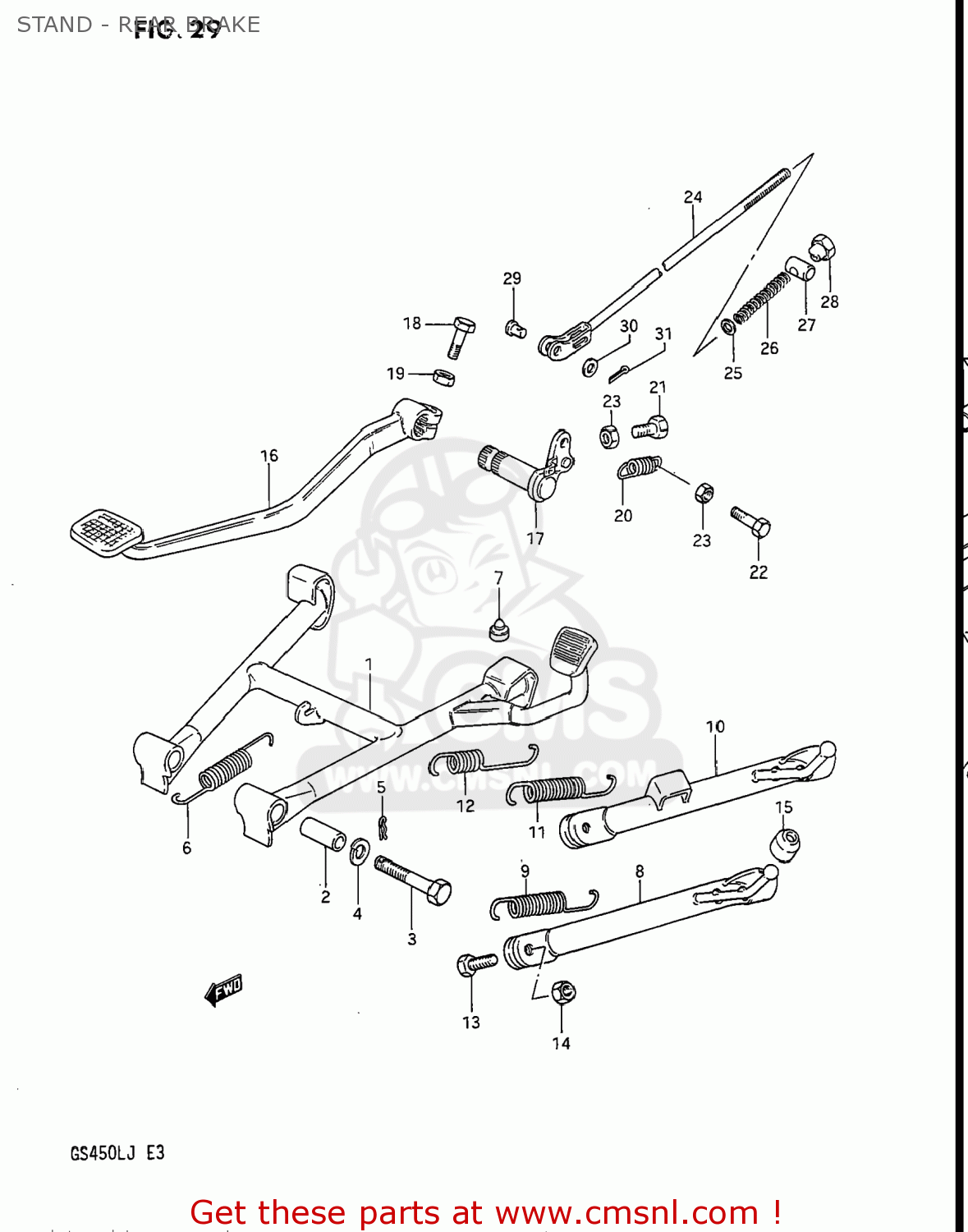

STAND - REAR BRAKE - GS450L 1985 (F) USA (E03)

ref

part #

description

quantity

1

4210044700
ref: 1

STAND,CENTER

€ 85.00

2

0918010040
ref: 2

SPACER(10X16X38.8)

€ 3.00

3

0910110034
ref: 3
09117-10029

BOLT

€ 6.50

4

0832121107
ref: 4
08321-01107

WASHER,LOCK,10

€ 2.00

5

0938510001
ref: 5
09385-10005

CLIP

€ 1.50

6

0944318006
ref: 6
09443-18006-XC0

SPRING

€ 5.50

7

0932110001
ref: 7

CUSHION

€ 2.50

8

4231044900
ref: 8

STAND,SIDE

€ 31.00

9

0944314028
ref: 9

SPRING

€ 3.00

10

4231044921
ref: 10

STAND,PROP

€ 0.00

11

0944315037
ref: 11

SPRING

€ 4.50

12

0944323001
ref: 12

SPRING

€ 7.50

13-1

0910010067
ref: 13-1

BOLT(10X30)

€ 3.50

13-2

0911110019
ref: 13-2
09111-10047

BOLT L:30

€ 4.50

14

0831022106
ref: 14
08310-0010A

NUTM10X1.25X8

€ 2.00

15

0932007001
ref: 15

CUSHION

€ 4.00

16

4311044900
ref: 16

PEDAL,BRAKE

€ 58.00

17

4312011501
ref: 17

ARM,BRAKE PEDAL

€ 21.00

18

0110708258
ref: 18
01500-08257

BOLT

€ 2.50

19

0832121088
ref: 19
08321-01087

LOCK WASHER

€ 2.00

20

0944314020
ref: 20
09443-14015

SPRING

€ 3.00

21

0110706207
ref: 21
01500-06207

BOLT

€ 2.00

22

0110706257
ref: 22
01500-06257

BOLT

€ 2.00

23

0831011067
ref: 23
08310-00067

NUT 6MM

€ 2.50

24-1

4330044401
ref: 24-1

ROD ASSY,RR BRAKE

€ 16.00

24-2

4330044900
ref: 24-2
43300-44401

ROD ASSEMBLY,REAR BRAKE

€ 16.00

25

0832221067
ref: 25
08322-01067

WASHER

€ 2.00

26

0944009004
ref: 26

SPRING

€ 2.00

27

0920913005
ref: 27
09209-13018

PIN

€ 3.50

28

0915006009
ref: 28
09150-06010

NUT (6MM)

€ 3.50

29

0920006013
ref: 29

PIN(L:13.5)

€ 2.00

30

0832221067
ref: 30
08322-01067

WASHER

€ 2.00

31

0411120208
ref: 31
04111-2020A

PIN 20X20

€ 1.50

STAND - REAR BRAKE
