FRONT FORK (MODEL Z)
GS450ST 1981 (X) USA (E03)

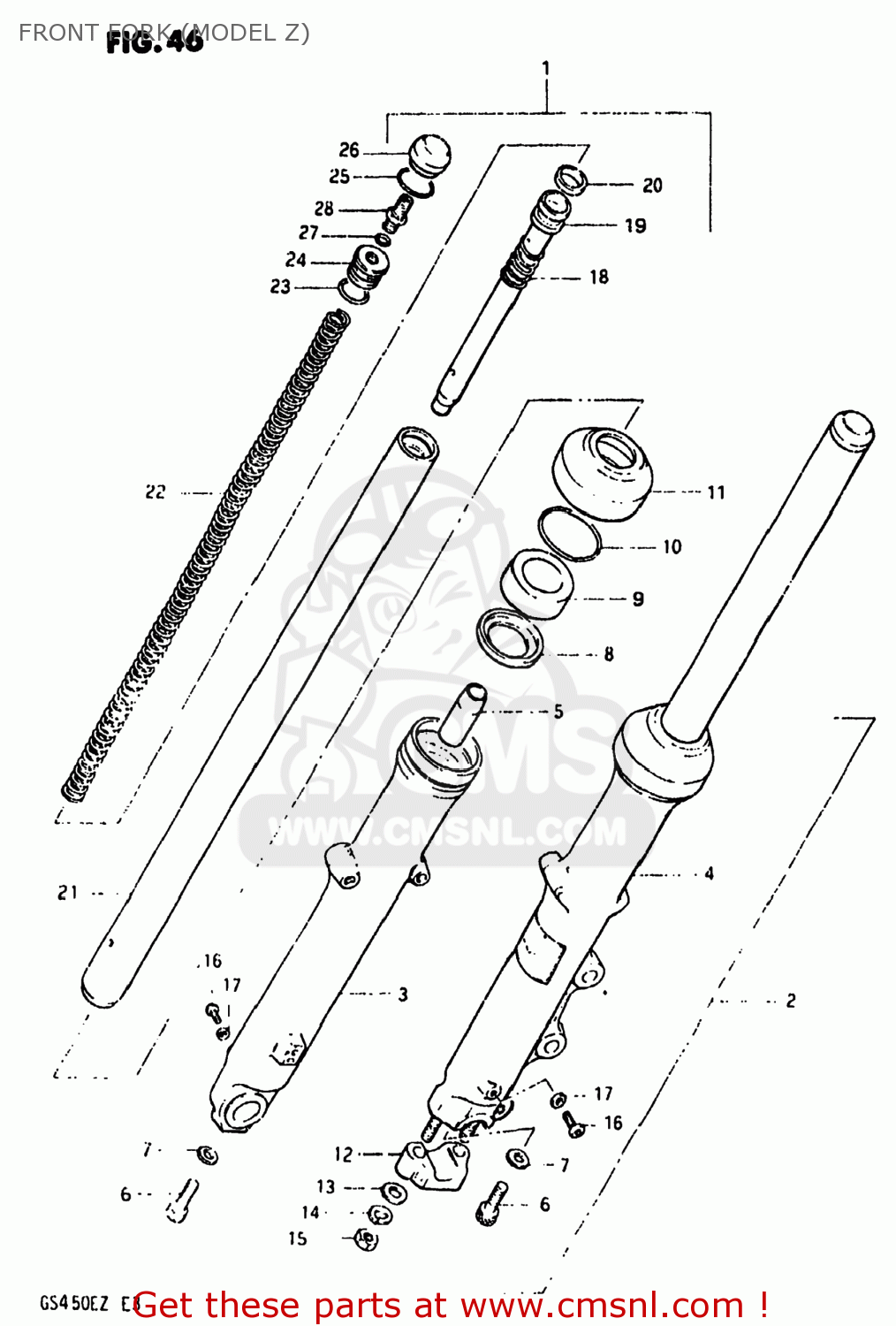

Front fork (model z) diagram GS450ST 1981 (X) USA (E03)
FRONT FORK (MODEL Z) GS450ST 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110344170
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 162.50
2
5110444170
ref: 2
DAMPER ASSEMBLY,LEFT
€ 133.00
3
5113044170291
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 0.00
4
5114044170291
ref: 4
TUBE,FORK,LEFT,OUTER
€ 0.00
5
5119548000
ref: 5
PIECE,OIL LOCK
€ 8.50
6
5114748130
ref: 6
BOLT(8X27)
€ 3.50
7
5114831030
ref: 7
51148-36011
GASKET (NAS)
€ 4.00
8
5116844030
ref: 8
SPACER,OIL SEAL
€ 4.50
9
5115337310
ref: 9
51153-02B00
OIL SEAL,FRONT FORK
€ 15.00
10
5115611420
ref: 10
51156-02B00
RING,OIL SEAL STOPPER
€ 4.50
11
5157137310
ref: 11
DUST SEAL
€ 22.00
12
5113244040291
ref: 12
51132-44040-15T
HOLDER,AXLE
€ 38.50
13
0832221088
ref: 13
08322-01087
WASHER
€ 2.00
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
0831012088
ref: 15
08310-00087
NUT
€ 2.00
16
0211204068
ref: 16
02112-0406B
SCREW 4X6
€ 2.00
17
5118333030
ref: 17
GASKET (NAS)
€ 6.50
18
5117736030
ref: 18
SPRING,REBOUND
€ 4.50
19
5114644031
ref: 19
51146-38300
CYLINDER,FRONT FORK
€ 42.00
20
5119633130
ref: 20
RING,PISTON
€ 7.50
21
5111044170
ref: 21
TUBE,FORK,INNER
€ 87.00
22
5117144170
ref: 22
SPRING
€ 17.50
23
5118133131
ref: 23
O RING
€ 5.00
24
5117244170
ref: 24
SEAT,SPRING
€ 0.00
25
5116948500
ref: 25
RING,STOPPER
€ 2.00
26
5118944170
ref: 26
CAP,FRONT FORK
€ 4.50
27
5111745440
ref: 27
09280-06005
O-RING
€ 2.50
28
5129345440
ref: 28
VALVE,AIR
€ 17.00
