STAND - REAR BRAKE
GS450SX 1981 (X) USA (E03)

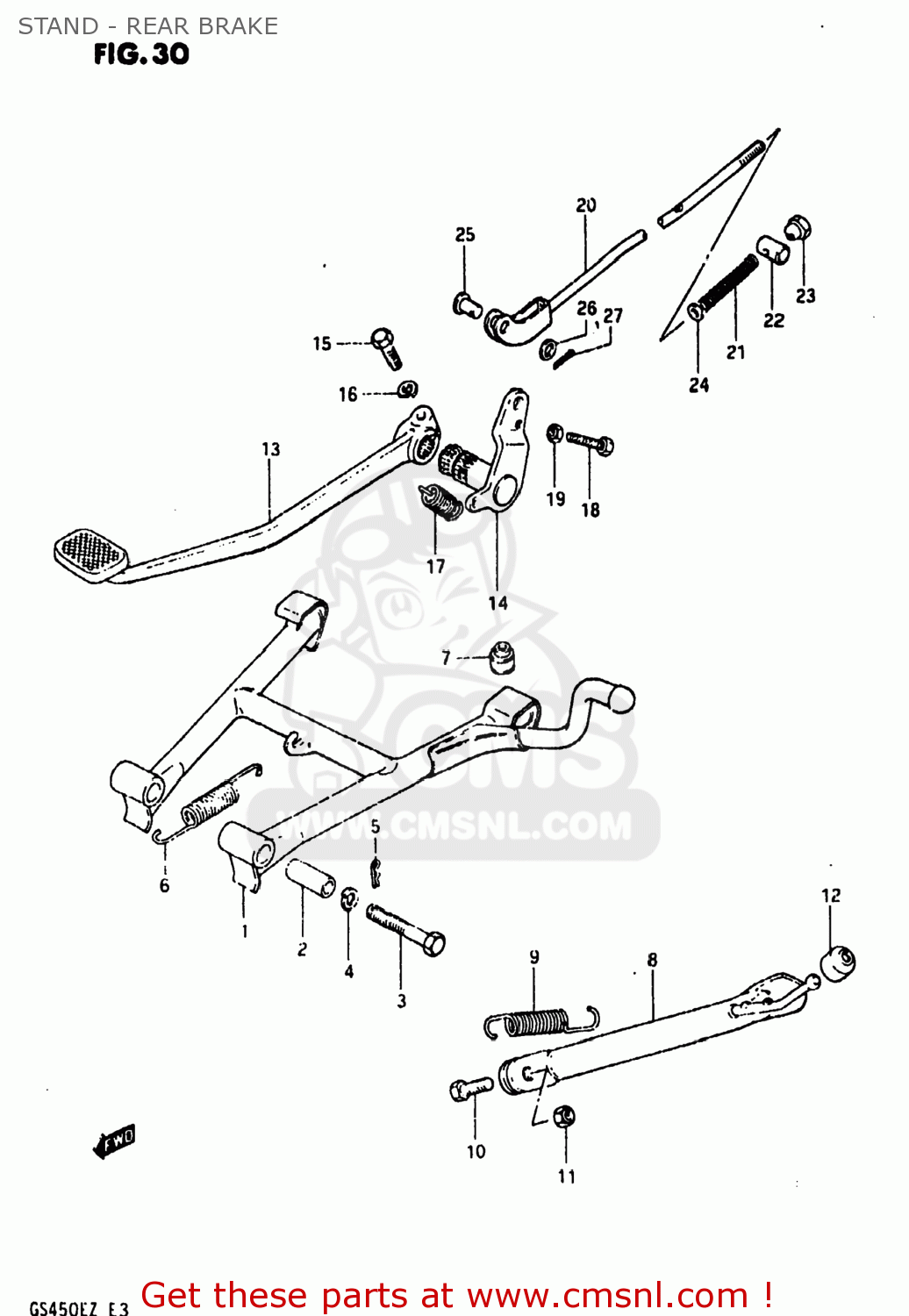

Stand - rear brake diagram GS450SX 1981 (X) USA (E03)
STAND - REAR BRAKE GS450SX 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4210044100
ref: 1
STAND,CENTER
€ 80.50
2
0918010040
ref: 2
SPACER(10X16X38.8)
€ 3.00
3
0910110018
ref: 3
09101-10030
BOLT
€ 5.50
4
0832121108
ref: 4
08321-01107
LOCK WASHER
€ 2.00
5
0938510001
ref: 5
09385-10005
CLIP
€ 1.50
6
0944318003
ref: 6
09443-18006-XC0
SPRING
€ 5.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8
4231044100
ref: 8
42310-44300
STAND,SIDE
€ 29.00
9
0944317005
ref: 9
09443-17008-XC0
SPRING
€ 11.50
10
0910010067
ref: 10
BOLT(10X30)
€ 3.50
11
0831022108
ref: 11
08310-00107
NUT
€ 2.50
12
0932007001
ref: 12
CUSHION
€ 4.00
13-1
4311044100
ref: 13-1
43110-44110
PEDAL,BRAKE
€ 75.00
13-2
4311044110
ref: 13-2
PEDAL,BRAKE
€ 75.00
14
4312044100
ref: 14
ARM,BRAKE PEDAL ROD
€ 41.50
15
0110708258
ref: 15
01500-08257
BOLT
€ 2.50
16
0832121088
ref: 16
08321-01087
LOCK WASHER
€ 2.00
17
0944314013
ref: 17
SPRING
€ 21.50
18
0110706208
ref: 18
01500-06207
BOLT
€ 2.00
19
0831011068
ref: 19
08310-00067
NUT
€ 2.50
20-1
4330044100
ref: 20-1
43300-44101
ROD ASSEMBLY,REAR BRAKE
€ 12.50
20-2
4330044101
ref: 20-2
ROD ASSEMBLY,REAR BRAKE
€ 12.50
21
0944009004
ref: 21
SPRING
€ 2.00
22
0920913003
ref: 22
09209-13018
PIN
€ 3.50
23
0915006001
ref: 23
09150-06010
NUT
€ 3.50
24
0832221068
ref: 24
08322-01067
WASHER
€ 2.00
25
0920006013
ref: 25
PIN(L:13.5)
€ 2.00
26
0832221068
ref: 26
08322-01067
WASHER
€ 2.00
27
0411120208
ref: 27
04111-2020A
PIN 20X20
€ 1.50
