Buy Suzuki GS Parts Online


FUEL COCK

GS500E 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E25 E53)

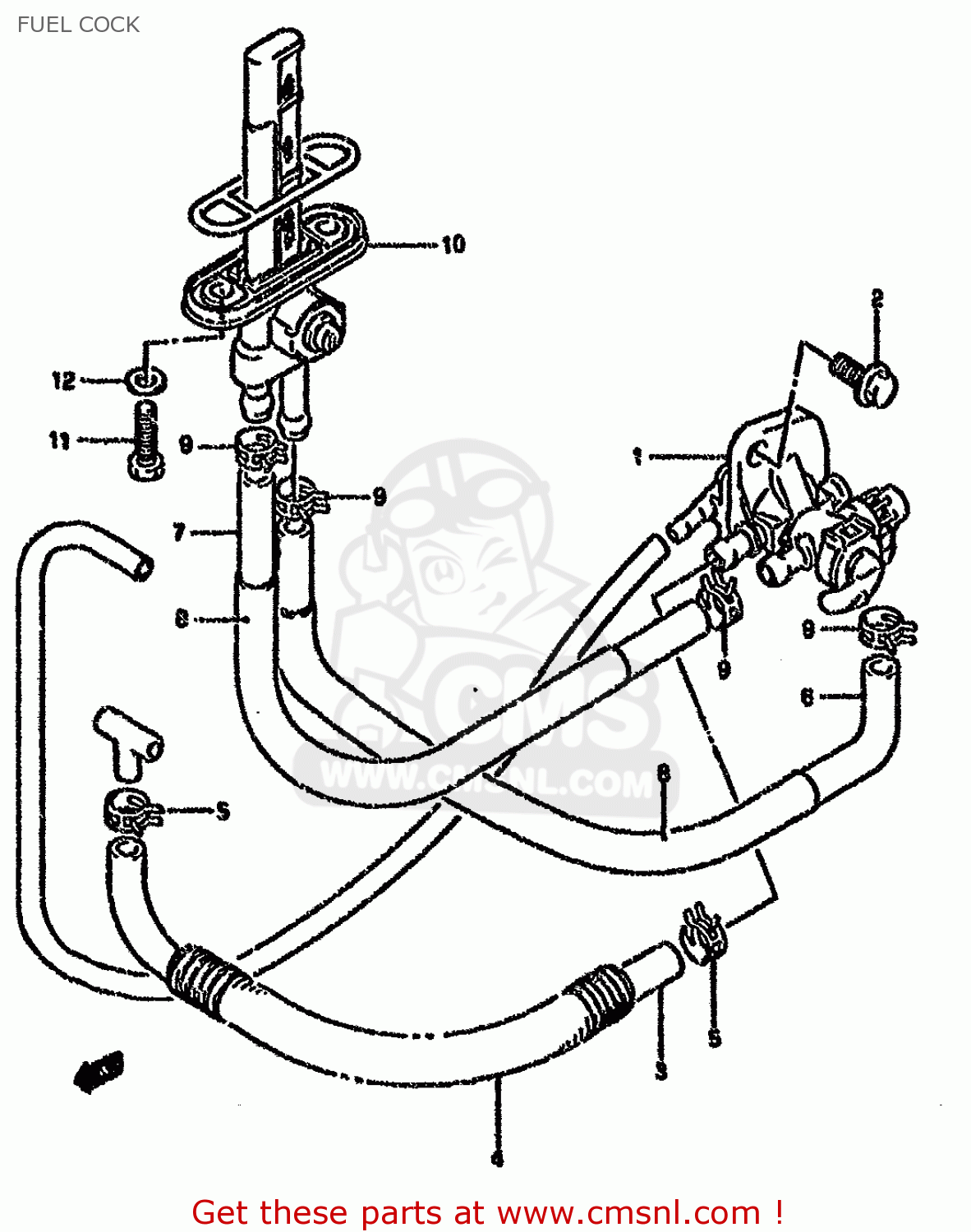

Fuel cock diagram GS500E 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E25 E53)

FUEL COCK GS500E 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E25 E53)
FUEL COCK GS500E 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E25 E53)
FUEL COCK GS500E 1992 (N) (E01 E02 E04 E16 E17 E18 E21 E22 E24 E25 E53)
prices are in EUR
ref
part #
description
quantity
1-1
4430001D00
ref: 1-1
MODEL K
COCK ASSEMBLY,FUEL
€ 109.50
1-2
4430001D20
ref: 1-2
MODEL L/M/N/P/R/S
COCK ASSEMBLY,FUEL
€ 109.50
1-3
4430001D21
ref: 1-3
MODEL T
COCK ASSY,FUEL
4430001D21
€ 109.50
2-1
0155006127
ref: 2-1
MODEL K/L/M/N/P/R
BOLT
0155006127
€ 2.50
2-2
0155006123
ref: 2-2
MODEL S/T
BOLT
0155006123
€ 2.50
3
0935470113600
ref: 3
HOSE(7X11X600)
0935470113600
€ 17.50
4
4431134C00
ref: 4
TUBE,FUEL HOSE
4431134C00
€ 4.50
5-1
0940111410
ref: 5-1
MODEL K/L/M/N/P/R
(CA) CLIP
0940111410
€ 2.50
5-2
0940111413
ref: 5-2
MODEL S/T
CLIP
0940111413
€ 2.50
6
0935470113600
ref: 6
HOSE(7X11X600)
0935470113600
€ 17.50
7
4444101D00
ref: 7
HOSE,FUEL RESERVE
4444101D00
€ 14.50
8-1
4446101D00
ref: 8-1
MODEL K
PROTECTOR,FUEL HOSE
€ 8.50
8-2
4446101D01
ref: 8-2
MODEL L/M/N/P/R/S/T
PROTECTOR,FUEL HOSE
4446101D01
€ 8.50
9-1
0940111410
ref: 9-1
MODEL K/L/M/N/P/R
(CA) CLIP
0940111410
€ 2.50
9-2
0940111413
ref: 9-2
MODEL S/T
CLIP
0940111413
€ 2.50
10
4430001D10
ref: 10
COCK ASSY,FUEL NO.1
4430001D10
€ 129.50
11
4434828070
ref: 11
O RING,FUEL COCK
4434828070
€ 4.50
12-1
0912806006
ref: 12-1
MODEL K/L/M/N/P/R/S
BOLT(6X20)
0912806006
€ 2.00
12-2
0912806057
ref: 12-2
MODEL T
BOLT(6X20)
0912806057
€ 2.00
13
0916806026
ref: 13
GASKET(6.4X11.5X0.8) (NAS)
0916806026
€ 3.50
