GENERATOR

GS500E 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E34 E53)

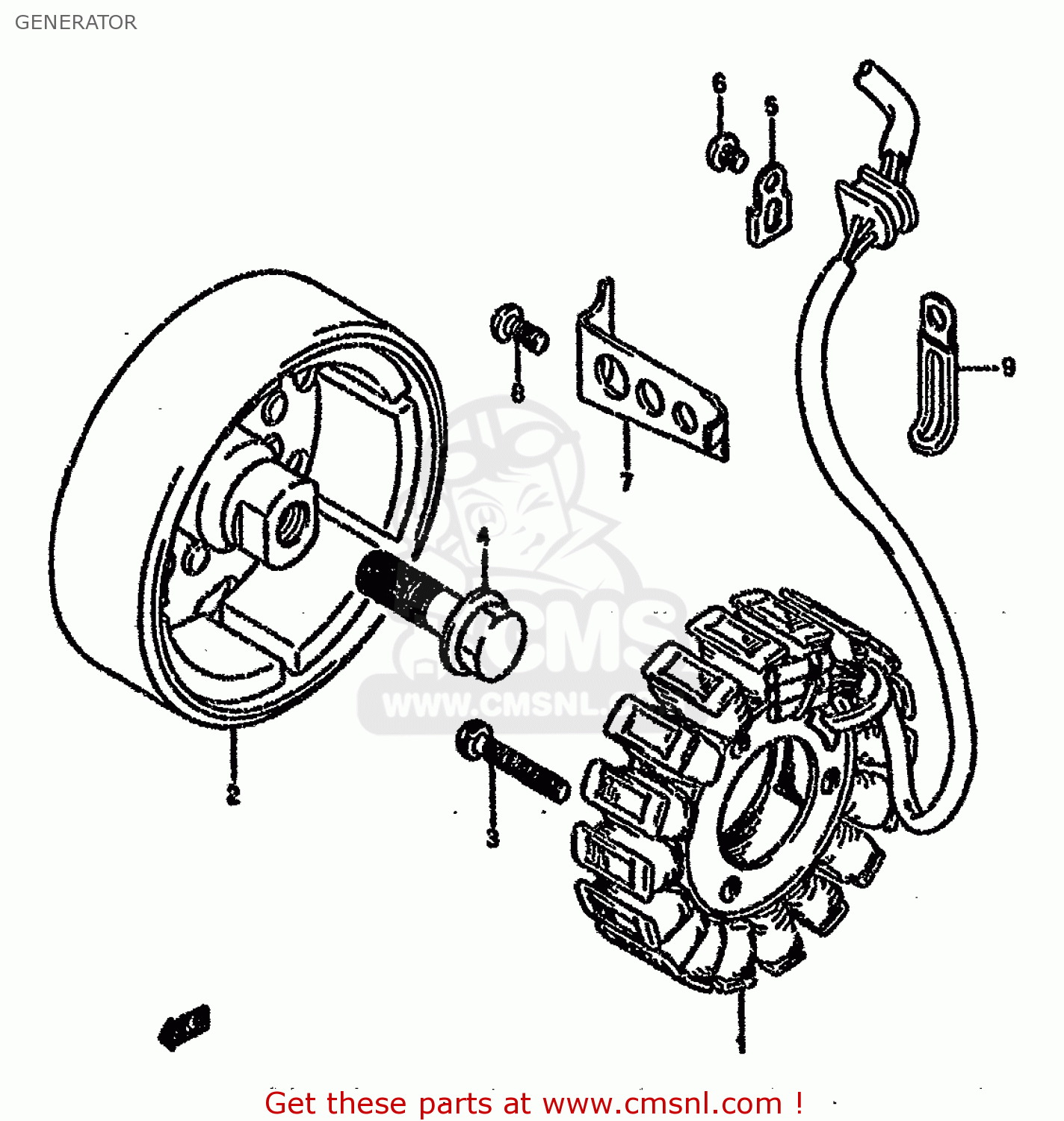

Generator diagram GS500E 1993 (P) (E01 E02 E04 E18 E21 E22 E24 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

3140147030
ref: 1

STARTER ASSY

€ 371.00

3140245030
ref: 2
-31402-47031

ROTOR ASSY

€ 385.00

0211235303
ref: 3

SCREW

€ 2.50

0910312004
ref: 4

BOLT(12X40)

€ 3.00

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205083
ref: 6

SCREW

€ 2.00

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206103
ref: 8

SCREW

€ 1.50

9-1

0940406402
ref: 9-1
MODEL K/L/M/N/P/R/S

CLAMP

€ 2.50

9-2

0940406429
ref: 9-2
MODEL T

CLAMP(L:45)

€ 2.50
