REAR WHEEL
GS550ES3 1983 (D) USA (E03)

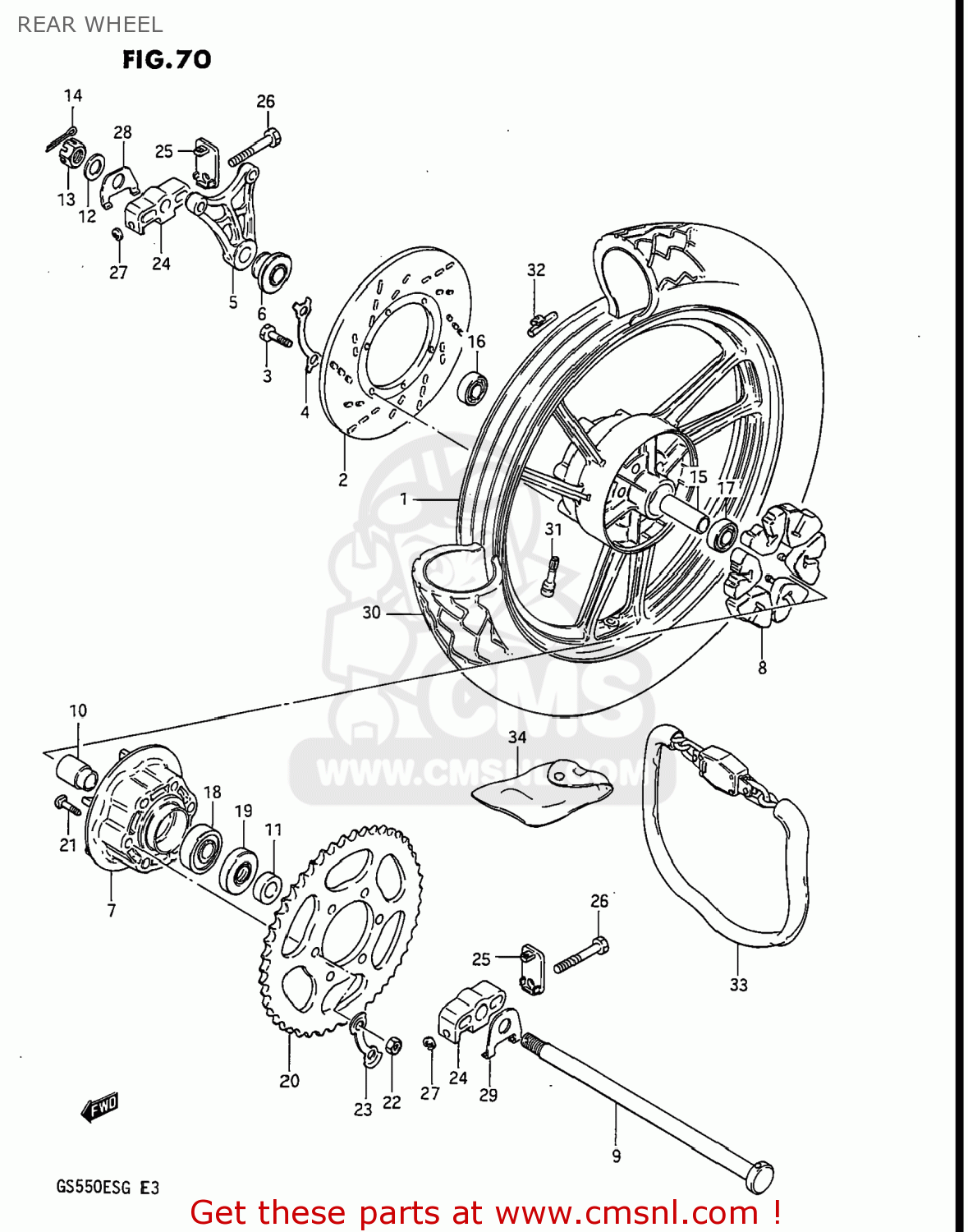

Rear wheel diagram GS550ES3 1983 (D) USA (E03)
REAR WHEEL GS550ES3 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
641113340119T
ref: 1-1
64111-33401-291
WHEEL,REAR
€ 563.00
1-1
641113340119T
ref: 1-1
64111-33401-291
WHEEL,REAR
€ 563.00
1-2
6411133401291
ref: 1-2
WHEEL,REAR (MT2.15X18)
€ 563.00
2
6921133250
ref: 2
DISC,REAR BRAKE
€ 204.50
3
0910008140
ref: 3
BOLT(8X25)
€ 2.00
4
0916908028
ref: 4
WASHER
€ 2.00
5
6972143400
ref: 5
BRACKET,RR,CALIPER
€ 51.50
6
6474033201
ref: 6
SPACER,REAR AXLE,RIGHT
€ 13.50
7
6461133200
ref: 7
DRUM,REAR SPROCKET MOUNT
€ 78.50
8
6465111300
ref: 8
ABSORBER,RR HUB SHOCK
€ 12.50
9
6471143400
ref: 9
AXLE,REAR
€ 58.50
10
6473334000
ref: 10
SPACER,REAR HUB BEARING
€ 24.00
11
0918017075
ref: 11
SPACER (17X30.5X13.5)
€ 5.50
12
0832211168
ref: 12
08322-01167
WASHER
€ 2.00
13
0914116001
ref: 13
NUT
€ 6.50
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
€ 1.50
15
0918017072
ref: 15
SPACER(17.5X25X81)
€ 13.50
16
0814363037
ref: 16
BEARING
€ 23.00
17
0814362037
ref: 17
BEARING
€ 18.50
18
0811362057
ref: 18
BEARING
€ 18.00
19
0928530001
ref: 19
SEAL,OIL(30.5X52X8)
€ 20.00
20
6451147610
ref: 20
SPROCKET,REAR
€ 0.00
21
0910510001
ref: 21
BOLT(10X35.5)
€ 3.50
22
0914010026
ref: 22
09140-10026-XC0
NUT
€ 2.00
23
0916910007
ref: 23
WASHER
€ 7.50
24
6141115500
ref: 24
BODY,CHAIN ADJUSTER
€ 23.50
25
6142115500
ref: 25
61421-15501
PLATE,CHAIN ADJUSTER
€ 107.00
26
6143116700
ref: 26
BOLT,CHAIN ADJUSTER
€ 4.50
27
0833211046
ref: 27
08332-1104A
E RING
€ 2.00
28
6471343400
ref: 28
WASHER,CHAIN ADJUSTER RH
€ 3.50
29
6471243401
ref: 29
WASHER,CHAIN ADJUSTER
€ 3.00
30
6510043450
ref: 30
TIRE
€ 0.00
31
4313075150
ref: 31
43130-78030
VALVE,TIRE
€ 14.50
32-1
5541100A0019T
ref: 32-1
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
32-1
5541100A0019T
ref: 32-1
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
32-2
5541200A0019T
ref: 32-2
55412-17G00
BALANCER,WHEEL
€ 7.00
32-2
5541200A0019T
ref: 32-2
55412-17G00
BALANCER,WHEEL
€ 7.00
32-3
5541300A0019T
ref: 32-3
55413-00A01
BALANCER,WHEEL
€ 4.00
32-3
5541300A0019T
ref: 32-3
55413-00A01
BALANCER,WHEEL
€ 4.00
32-4
5541100A00291
ref: 32-4
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
32-5
5541200A00291
ref: 32-5
55412-17G00
BALANCER,WHEEL
€ 7.00
32-6
5541300A00291
ref: 32-6
55413-00A01
BALANCER,WHEEL
€ 4.00
33
9414015501KEY
ref: 33
94100-27821
CHAIN LOCK ASSY
€ 53.50
34
9414131301
ref: 34
BAG,CHAIN LOCK
€ 0.00
