CYLINDER HEAD COVER
GS550ES3 1986 (G) USA (E03)

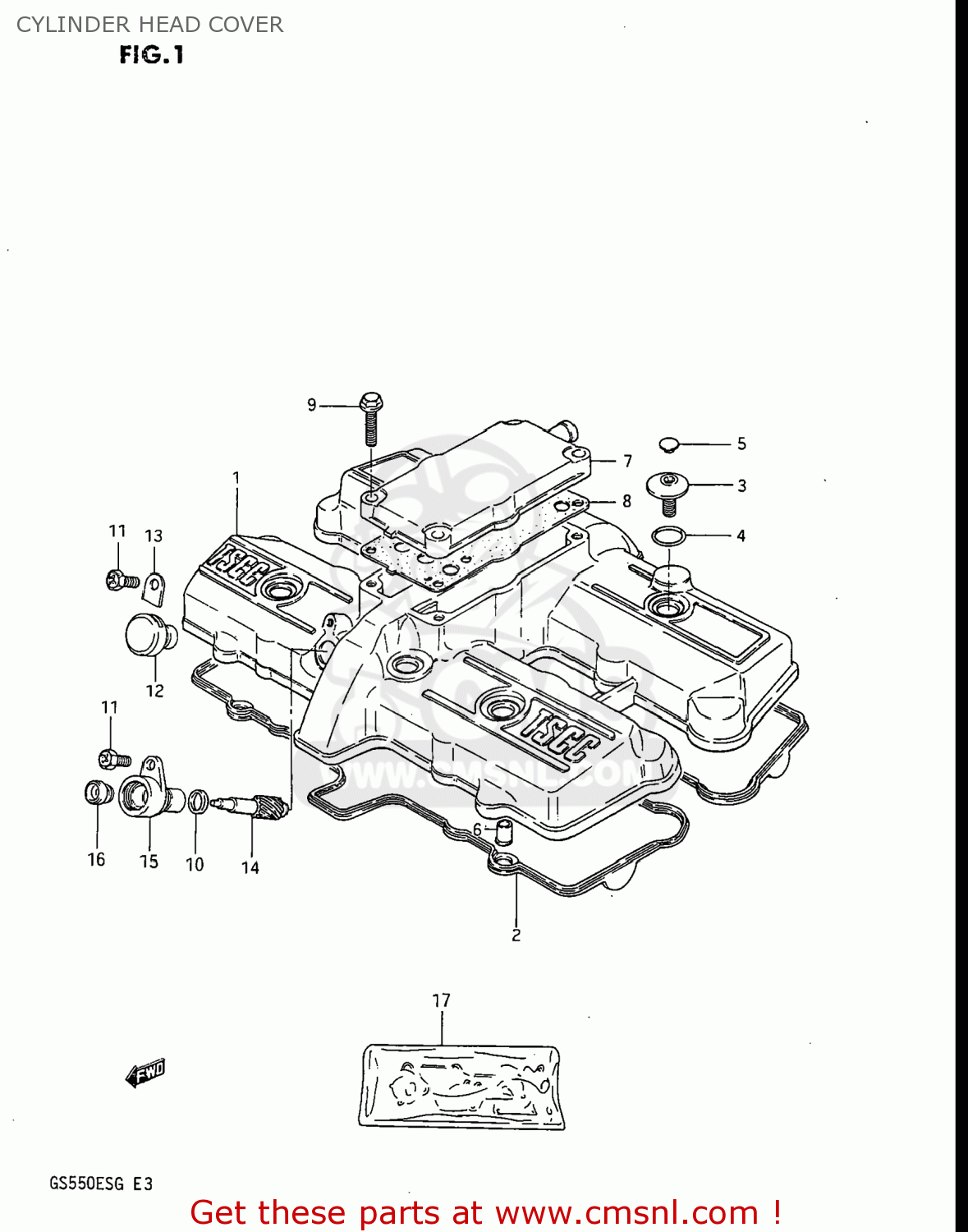

Cylinder head cover diagram GS550ES3 1986 (G) USA (E03)
CYLINDER HEAD COVER GS550ES3 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1117143403
ref: 1
COVER,CYLINDER HEAD
€ 135.00
2
1117343402
ref: 2
GASKET,CYL HEAD COVER (NAS)
€ 32.50
3
0910607001
ref: 3
BOLT(7X5.5)
€ 6.00
4
0928015006
ref: 4
O RING(D:1.9,ID:14.5)
€ 3.00
5
0925006008
ref: 5
CAP(OD:10)
€ 3.00
6
0422108129
ref: 6
PIN
€ 2.00
7
1117643402
ref: 7
COVER,BREATHER
€ 17.00
8
1117743403
ref: 8
11177-43403-H17
GASKET (MCA)
€ 11.50
9
0151706254
ref: 9
01550-0625A
BOLT
€ 2.50
10
2645145000A
ref: 10
SEAL,TACHOMETER DRIVEN
€ 4.50
11
0912805101
ref: 11
SCREW(5X12)
€ 1.50
12
2644245000
ref: 12
PLUG,TACH GEAR SLEEVE HOLE
€ 15.50
13
2644933000
ref: 13
PLATE,TACH DRIVE GEAR SLEEVE
€ 3.50
14
2643149200
ref: 14
26431-49201
GEAR,TACHOMETER DRIVEN
€ 40.00
15
2644149000
ref: 15
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
16
0928905002
ref: 16
SEAL,OIL(5X12X8)
€ 11.00
17
1140043833
ref: 17
11400-43837
GASKET SET (MCA)
€ 308.50
