CARBURETOR
GS550ESE 1985 (F) USA (E03)

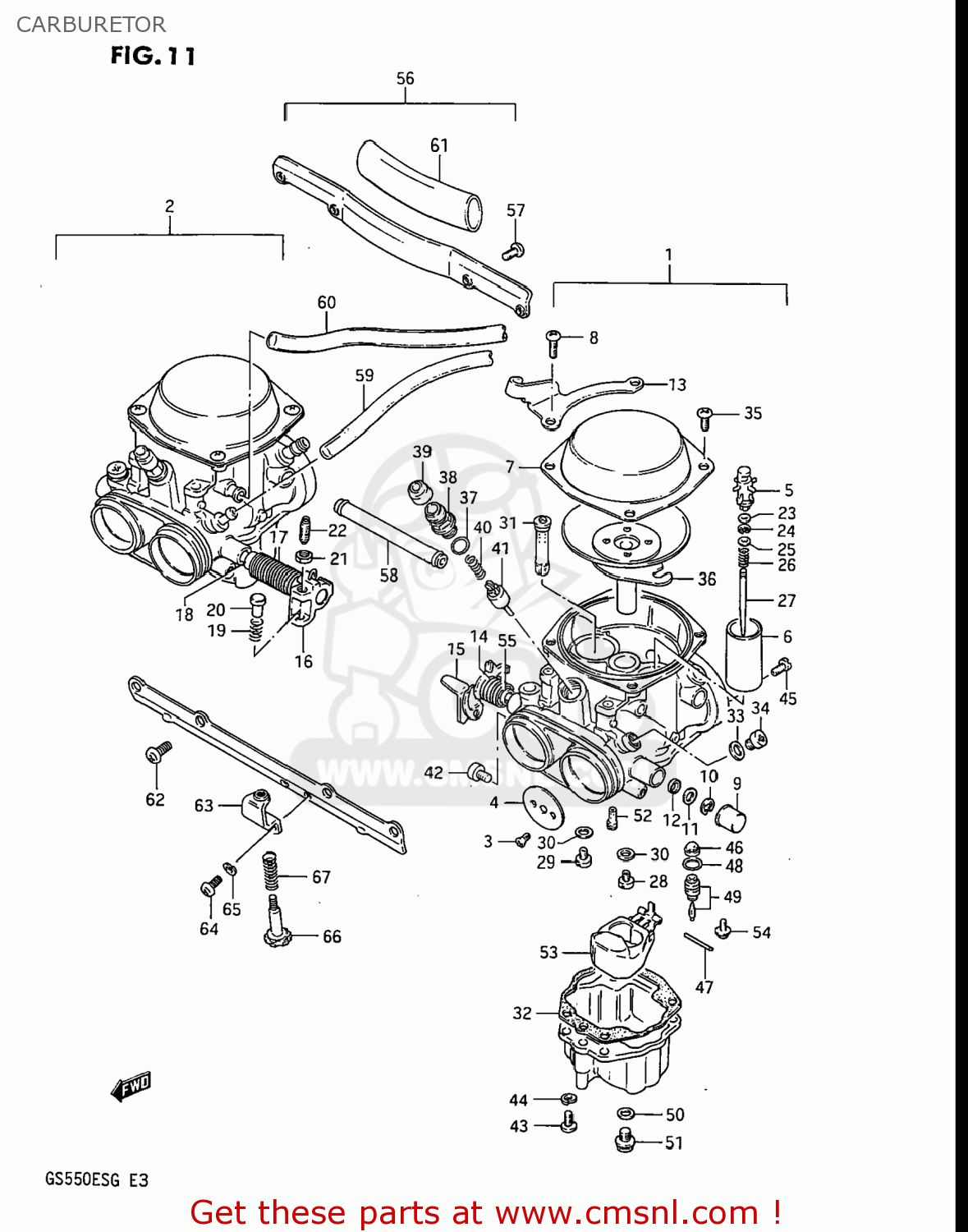

Carburetor diagram GS550ESE 1985 (F) USA (E03)
CARBURETOR GS550ESE 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320143440
ref: 1-1
CARBURETOR ASSEMBLY
€ 238.50
1-2
1320143560
ref: 1-2
CARBURETOR ASSEMBLY
€ 311.50
1-3
1320143660
ref: 1-3
CARBURETOR ASSEMBLY
€ 311.50
2-1
1320243440
ref: 2-1
CARBURETOR ASSEMBLY
€ 238.50
2-2
1320243560
ref: 2-2
CARBURETOR ASSEMBLY
€ 311.50
2-3
1320243660
ref: 2-3
CARBURETOR ASSEMBLY
€ 258.00
3
1360444080
ref: 3
SCREW
€ 3.50
4-1
1355143440
ref: 4-1
VALVE,THROTTLE
€ 0.00
4-2
1355143450
ref: 4-2
VALVE,THROTTLE
€ 0.00
5
1351143410
ref: 5
HOLDER,GUIDE
€ 6.50
6-1
1355143500
ref: 6-1
VALVE,THROTTLE
€ 0.00
6-2
1355143440
ref: 6-2
VALVE,THROTTLE
€ 0.00
7
1350243430
ref: 7
COVER,DIAPHRAGM
€ 0.00
8
0211205125
ref: 8
02112-0512A
SCREW
€ 1.50
9
1357845530
ref: 9
13578-47070
CAP,THROTTLE SHAFT
€ 5.50
10
1361744080
ref: 10
E RING
€ 3.50
11
1355747070
ref: 11
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
12
1365151010
ref: 12
SEAL
€ 4.00
13
1362143420
ref: 13
BRACKET,THROTTLE CABLE
€ 5.50
14
1357343410
ref: 14
SPRING,THROTTLE SHAFT
€ 6.50
15
1355043410
ref: 15
SHAFT ASSEMBLY
€ 0.00
16
1355043400
ref: 16
SHAFT ASSEMBLY
€ 0.00
17
1357343400
ref: 17
SPRING
€ 9.50
18
1357443410
ref: 18
RING
€ 0.00
19
1326844010
ref: 19
SPRING,THROTTLE SCREW
€ 3.00
20
1357547070
ref: 20
PIN,THROTTLE LEVER
€ 2.50
21
1360747070
ref: 21
NUT
€ 4.00
22
1360547080
ref: 22
SCREW
€ 7.00
23
1338747010
ref: 23
RING
€ 7.50
24
1341547070
ref: 24
13394-10010
CAP,LEVER
€ 4.50
25
1338244030
ref: 25
WASHER
€ 3.50
26
1338844030
ref: 26
SPRING
€ 6.00
27-1
1338343440
ref: 27-1
NEEDLE JET
€ 9.00
27-2
1338343560
ref: 27-2
NEEDLE JET
€ 8.50
27-2
1338343560
ref: 27-2
NEEDLE JET
€ 8.50
28-1
0949195005
ref: 28-1
JET,MAIN(95)
€ 8.50
28-2
0949190007
ref: 28-2
JET,MAIN(90)
€ 10.50
28-3
0949192004
ref: 28-3
JET,MAIN(92.5)
€ 8.50
29-1
0949120012
ref: 29-1
JET,MAIN(102.5)
€ 8.50
29-2
0949197003
ref: 29-2
JET,MAIN(97.5)
€ 8.50
29-3
0949120017
ref: 29-3
JET,MAIN
€ 10.50
30
1333244080
ref: 30
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
31
0949400452
ref: 31
JET,NEEDLE
€ 16.00
32
1325143410
ref: 32
13251-05C00
GASKET,FLOAT CHAMBER (MCA)
€ 10.50
33
1353143410
ref: 33
WASHER
€ 3.50
34
1360543410
ref: 34
SCREW
€ 0.00
35
0211205105
ref: 35
02112-0510A
SCREW
€ 2.00
36
1350043410
ref: 36
DIAPHRAGM,CARBURETOR
€ 181.50
37
1327847090
ref: 37
O RING
€ 2.00
38
1341843410
ref: 38
HOLDER,GUIDE
€ 6.50
39
1368104010
ref: 39
CAP
€ 3.00
40
1341743410
ref: 40
13417-01010
SPRING
€ 3.50
41
1341143410
ref: 41
VALVE,STARTER
€ 23.50
42
1360573000
ref: 42
SCREW
€ 10.50
43
0211204165
ref: 43
02112-0416A
SCREW
€ 1.00
44
0832121045
ref: 44
08321-0104A
LOCK WASHER
€ 2.00
45-1
0949228011
ref: 45-1
JET
€ 3.50
45-2
0949230004
ref: 45-2
JET,PILOT(150)
€ 7.50
46
1337665010
ref: 46
13376-19F00
FILTER
€ 6.50
47
1325420010
ref: 47
PIN,FLOAT
€ 3.00
48
1337444080
ref: 48
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
49
1337043410
ref: 49
13370-48B00
VALVE ASSEMBLY,NEEDLE
€ 70.50
50
1324644080
ref: 50
GASKET (NAS)
€ 3.50
51
1324743410
ref: 51
13247-44080
PLUG,DRAIN
€ 9.50
52
0949235010
ref: 52
JET,PILOT(37.5)
€ 10.50
53
1325043410
ref: 53
FLOAT
€ 28.00
54
1360243410
ref: 54
SCREW
€ 2.50
55
1357443400
ref: 55
RING,THROTTLE SHAFT
€ 0.00
55
1357443400
ref: 55
RING,THROTTLE SHAFT
€ 0.00
56
1321043420
ref: 56
FLANGE ASSEMBLY,CARBURETOR
€ 70.50
57
0211205125
ref: 57
02112-0512A
SCREW
€ 1.50
58
1368543410
ref: 58
PIPE,CARBURETOR
€ 25.50
59-1
1368345050
ref: 59-1
09355-45855-600
HOSE 4.5X8X390
€ 14.00
59-2
1368345050
ref: 59-2
09355-45855-600
HOSE 4.5X8X390
€ 14.00
60-1
1368343410
ref: 60-1
09352-70113-600
HOSE
€ 17.50
60-2
1368343650
ref: 60-2
HOSE
€ 13.50
61
1368443440
ref: 61
HOSE(16X19X100)
€ 6.50
62
0211206125
ref: 62
02112-0612A
SCREW
€ 1.50
63
1362143430
ref: 63
BRACKET,SLOW ADJUST
€ 6.00
64
0211205085
ref: 64
02112-0508A
SCREW
€ 2.00
65
0832121055
ref: 65
08321-0105A
WASHER,LOCK
€ 3.00
66
1326743420
ref: 66
13267-34390
ADJUSTER
€ 15.50
67
1326843410
ref: 67
13375-14D10
SPRING
€ 6.50
67
1326843410
ref: 67
13375-14D10
SPRING
€ 6.50
