REAR CALIPERS
GS550ESE 1986 (G) USA (E03)

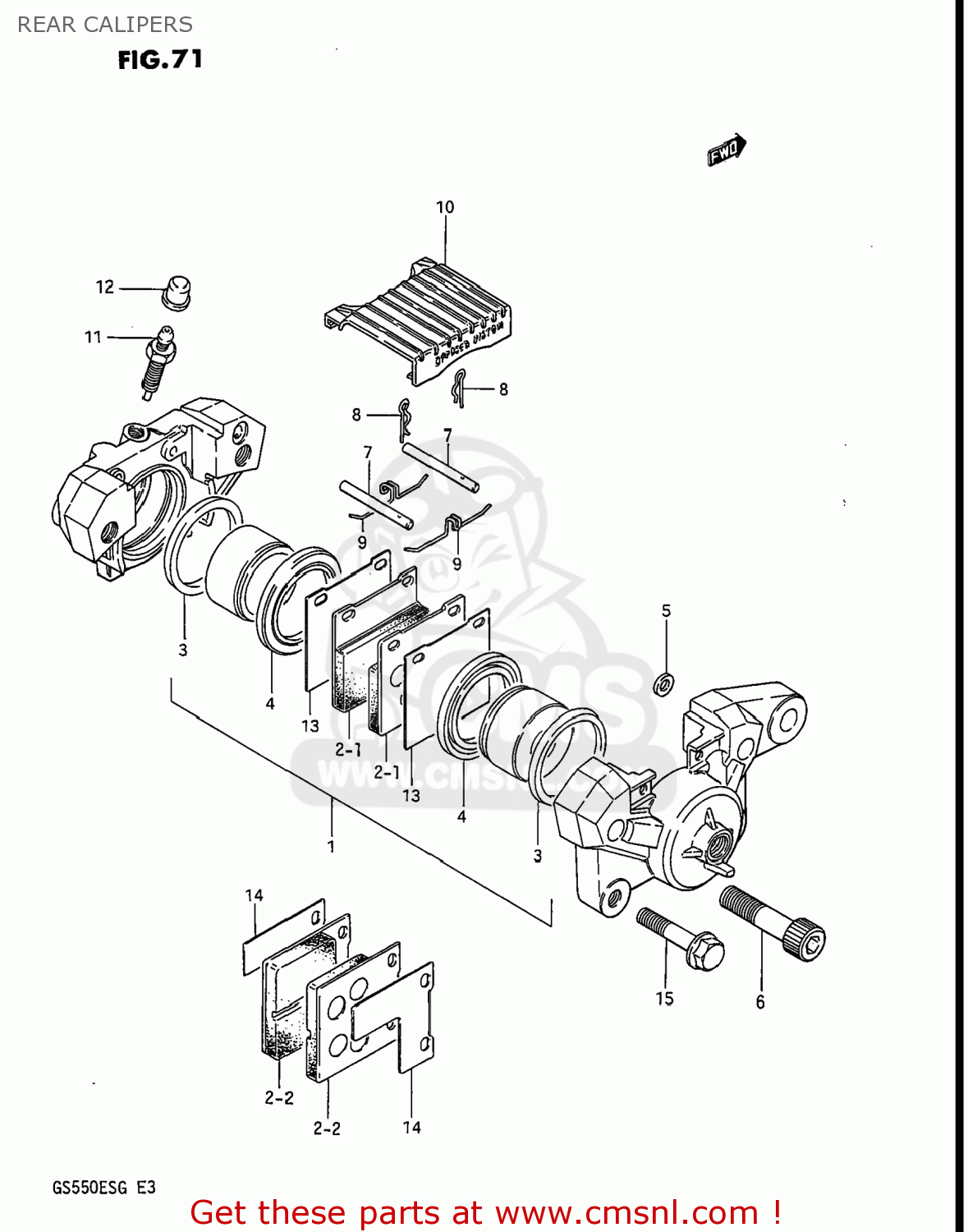

Rear calipers diagram GS550ESE 1986 (G) USA (E03)
REAR CALIPERS GS550ESE 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
6910033400
ref:
CALIPER ASSEMBLY,REAR (ASB)
€ 362.00
6910033420
ref:
CALIPER ASSEMBLY,REAR
€ 0.00
1-1
6910016810
ref: 1-1
69100-27821
PISTON SET
€ 192.50
1-2
6910016830
ref: 1-2
69100-27821
PISTON SET
€ 192.50
2-1
5913016700
ref: 2-1
59100-16820
PAD (MCA)
€ 43.00
2-2
5913016730
ref: 2-2
59100-16830
PAD
€ 41.50
3
5910718410
ref: 3
69107-05CF0
SEAL,PISTON
€ 17.00
4
5910816700
ref: 4
BOOT
€ 16.50
5
6910734200
ref: 5
SEAL,JOINT
€ 12.00
6
6914534200
ref: 6
59145-05C50
BOLT,CALIPER HOUSING
€ 9.50
7
6914145000
ref: 7
PIN,PAD
€ 6.50
8
6914245000
ref: 8
CLIP,PAD PIN
€ 4.50
9
5914316700
ref: 9
SPRING
€ 7.50
10
5915116700
ref: 10
59151-16701
COVER,CALIPER
€ 13.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5912218410
ref: 12
55156-66310
CAP,BREATHER
€ 6.00
13
5937133410
ref: 13
SHIM,PAD
€ 15.00
14
5937133420
ref: 14
SHIM
€ 14.00
15
0151708305
ref: 15
01550-0830A
BOLT
€ 3.00
