FRONT DAMPER (MODEL F/G)
GS550ESF 1985 (F) USA (E03)

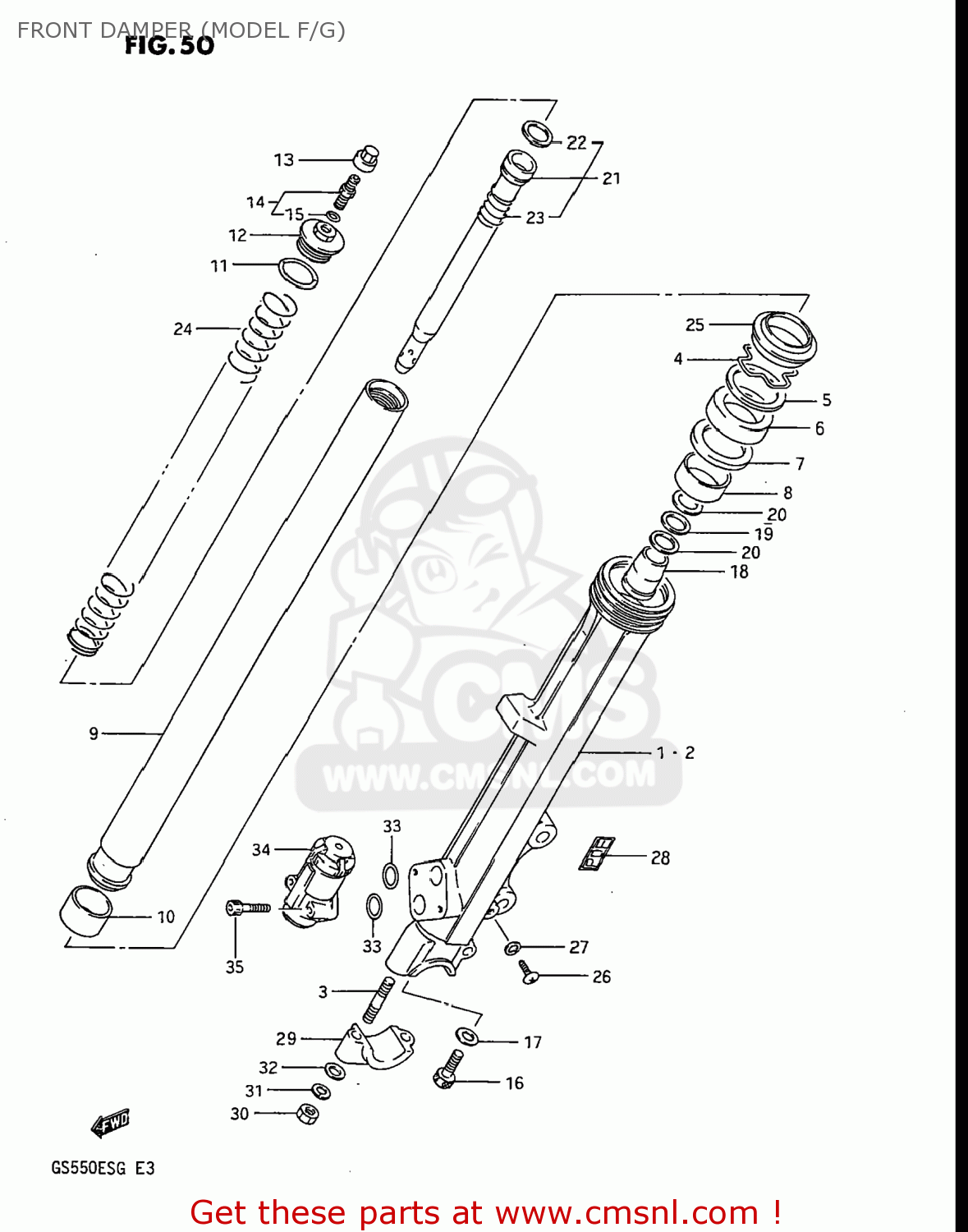

Front damper (model f/g) diagram GS550ESF 1985 (F) USA (E03)
FRONT DAMPER (MODEL F/G) GS550ESF 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110343405
ref:
DAMPER ASSEMBLY,RIGHT
€ 293.50
5110443405
ref:
DAMPER ASSEMBLY,LEFT
€ 293.50
1
511304340515T
ref: 1
TUBE,FORK,OUTER,RIGHT
€ 196.50
2
511404340515T
ref: 2
TUBE,FORK,LEFT,OUTER
€ 0.00
3
0141108308
ref: 3
01411-0830A
STUD 8X30
€ 2.00
4
5115640301
ref: 4
RING,STOPPER
€ 4.50
5
5115849000
ref: 5
WASHER. FRONT FORK
€ 7.00
6
5115349001
ref: 6
51153-08C20
OIL SEAL,FRONT FORK
€ 16.50
7
5115849500
ref: 7
WASHER
€ 4.00
8
5116749510
ref: 8
51167-01D00
METAL,SLIDE
€ 10.50
9
5111043420
ref: 9
TUBE,FORK,INNER
€ 264.00
10
5112149510
ref: 10
METAL,FR FORK PISTON
€ 17.50
11
5111738260
ref: 11
O RING
€ 2.50
12
5135116700
ref: 12
CAP
€ 0.00
13
5129449020
ref: 13
CAP,FRONT FORK AIR VALVE
€ 8.00
14
5129343400
ref: 14
62274-14400
VALVE,FRONT FORK AIR
€ 8.00
15
5111714210
ref: 15
09280-06005
O-RING
€ 2.50
16
5114716510
ref: 16
BOLT,FORK CYLINDER(10X25)
€ 3.50
17
5114841310
ref: 17
GASKET (NAS)
€ 2.50
18
5119545420
ref: 18
PIECE,OIL LOCK
€ 15.50
19
5112345420
ref: 19
WASHER
€ 3.50
20
5112545420
ref: 20
SPRING,LEAF
€ 3.50
21
5114643405
ref: 21
CYLINDER,FRONT FORK
€ 0.00
22
5119643400
ref: 22
RING,PISTON
€ 7.00
23
5117743400
ref: 23
SPRING,REBOUND
€ 0.00
24
5117143400
ref: 24
SPRING
€ 23.00
25
5117343400
ref: 25
SEAL,DUST
€ 14.00
26
0211204085
ref: 26
02112-0408A
SCREW
€ 2.00
27
5118303010
ref: 27
GASKET,DRAIN,PLUG (NAS)
€ 3.00
28
5116900A10
ref: 28
EMBLEM
€ 0.00
29
511324340015T
ref: 29
HOLDER,AXLE
€ 24.00
30
0831011085
ref: 30
08310-0008A
NUT
€ 1.50
31
0832121084
ref: 31
08321-0108A
WASHER,LOCK,8.
€ 2.50
32
0832211084
ref: 32
08322-0108A
WASHER
€ 1.50
33
5179900A00
ref: 33
O RING
€ 5.50
34
5177043405
ref: 34
PDF ASSEMBLY
€ 169.50
35
0711006408
ref: 35
07130-06407
BOLT
€ 2.50
up
