SPEEDOMETER - TACHOMETER (GS550ES3/ESE/ESF/ESG)

GS550ESF 1986 (G) USA (E03)

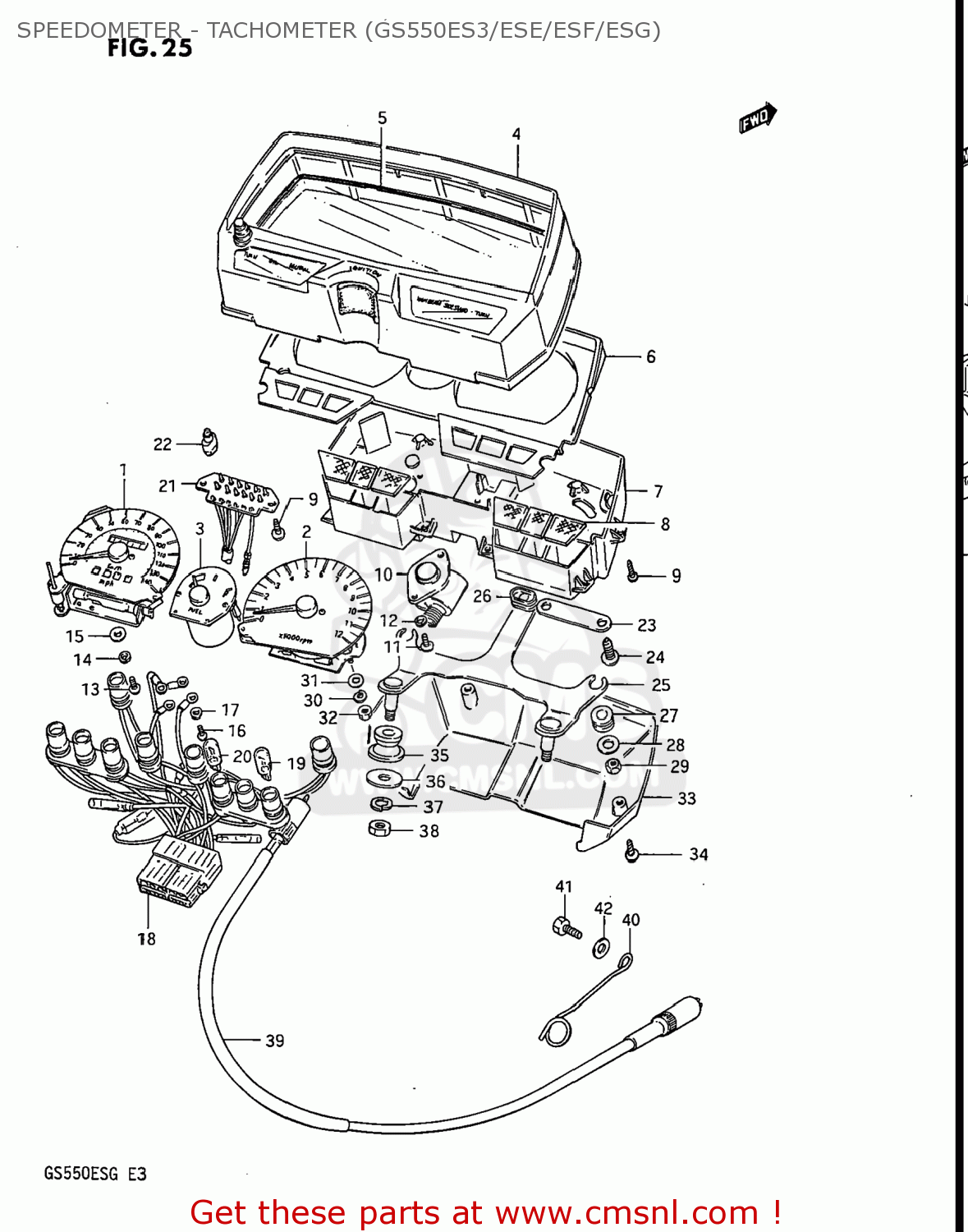

Speedometer - tachometer (gs550es3/ese/esf/esg) diagram GS550ESF 1986 (G) USA (E03)

SPEEDOMETER - TACHOMETER (GS550ES3/ESE/ESF/ESG) GS550ESF 1986 (G) USA (E03)
SPEEDOMETER - TACHOMETER (GS550ES3/ESE/ESF/ESG) GS550ESF 1986 (G) USA (E03)
SPEEDOMETER - TACHOMETER (GS550ES3/ESE/ESF/ESG) GS550ESF 1986 (G) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3412043461
ref: 1
34120-43450
SPEEDOMETER
€ 157.00
2-1
3422043461
ref: 2-1
34220-43402
TACHOMETER
€ 459.50
2-2
3422043462
ref: 2-2
34220-43402
TACHOMETER
€ 459.50
3
3432043410
ref: 3
METER,FUEL
3432043410
€ 78.50
4
3415043410
ref: 4
HOOD,METER
3415043410
€ 72.50
5
3411243410
ref: 5
GLASS,SPEEDOMETER
3411243410
€ 36.50
6
3415343410
ref: 6
PLATE,METER WINDOW
3415343410
€ 17.50
7
3411143400
ref: 7
CASE,METER,INNER
3411143400
€ 51.00
8
3630043810
ref: 8
LENS SET,PILOT
€ 24.00
9
3645634510
ref: 9
09132-03501
SCREW,GEAR INDICATOR
€ 2.00
10
3413143400
ref: 10
BOX,GEAR
€ 121.50
11
0211204108
ref: 11
02112-04107
SCREW 4X10
€ 2.00
12
0832121047
ref: 12
08321-0104A
WASHER,LOCK 4M
0832121047
€ 2.00
13
0211203108
ref: 13
02112-03107
SCREW
0211203108
€ 1.50
14
0832121038
ref: 14
09162-03001
LOCK WASHER
€ 1.50
15
0832221038
ref: 15
08322-01037
WASHER
0832221038
€ 2.00
16
0211203068
ref: 16
02112-0306B
SCREW
0211203068
€ 2.00
17
0832221038
ref: 17
08322-01037
WASHER
0832221038
€ 2.00
18
3417043400
ref: 18
SOCKET,METER
€ 0.00
19
0947112082
ref: 19
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
20
0947112077
ref: 20
BULB(12V1.7W,T10,WB121)
0947112077
€ 1.00
21
3645343410
ref: 21
SOCKET,GEAR INDICATOR
3645343410
€ 30.00
22
0947112071
ref: 22
BULB(14V1.12W)
0947112071
€ 5.00
23
3418243400
ref: 23
PLATE,COUPLER
€ 3.00
24
0321204109
ref: 24
03211-0410B
SCREW
€ 2.00
25
3495043410
ref: 25
BRACKET,METER
3495043410
€ 17.00
26
3499545720
ref: 26
CUSHION,METER
€ 3.00
27
3499643410
ref: 27
CUSHION,METER
3499643410
€ 3.00
28
3418130520
ref: 28
09160-05037
WASHER,METER
3418130520
€ 1.50
29
0831022058
ref: 29
08310-00057
NUT
€ 2.50
30
0832121047
ref: 30
08321-0104A
WASHER,LOCK 4M
0832121047
€ 2.00
31
3418143400
ref: 31
WASHER,SPEEDOMETER
€ 2.00
32
0831011048
ref: 32
08310-00047
NUT
0831011048
€ 2.00
33
3419343400
ref: 33
COVER,METER,UNDER
3419343400
€ 51.00
34
0311204125
ref: 34
03111-0412A
SCREW
0311204125
€ 1.50
34
0311204125
ref: 34
03111-0412A
SCREW
0311204125
€ 1.50
35
3495631001
ref: 35
CUSHION,METER BRACKET
3495631001
€ 4.50
36
0916008057
ref: 36
09160-08135
WASHER (8.5X20X1.6)
0916008057
€ 2.00
37
0832121084
ref: 37
08321-0108A
WASHER,LOCK,8.
0832121084
€ 2.50
38
0831011085
ref: 38
08310-0008A
NUT
€ 1.50
39
3491038430
ref: 39
CABLE ASSY,SPEEDOMETER
3491038430
€ 22.50
40
3493845100
ref: 40
CLAMP,SPEEDOMETER CABLE
3493845100
€ 14.50
41
0110706168
ref: 41
01500-06167
BOLT, UPPER
€ 3.00
42
0832221068
ref: 42
08322-01067
WASHER
0832221068
€ 2.00
42
0832221068
ref: 42
08322-01067
WASHER
0832221068
€ 2.00
