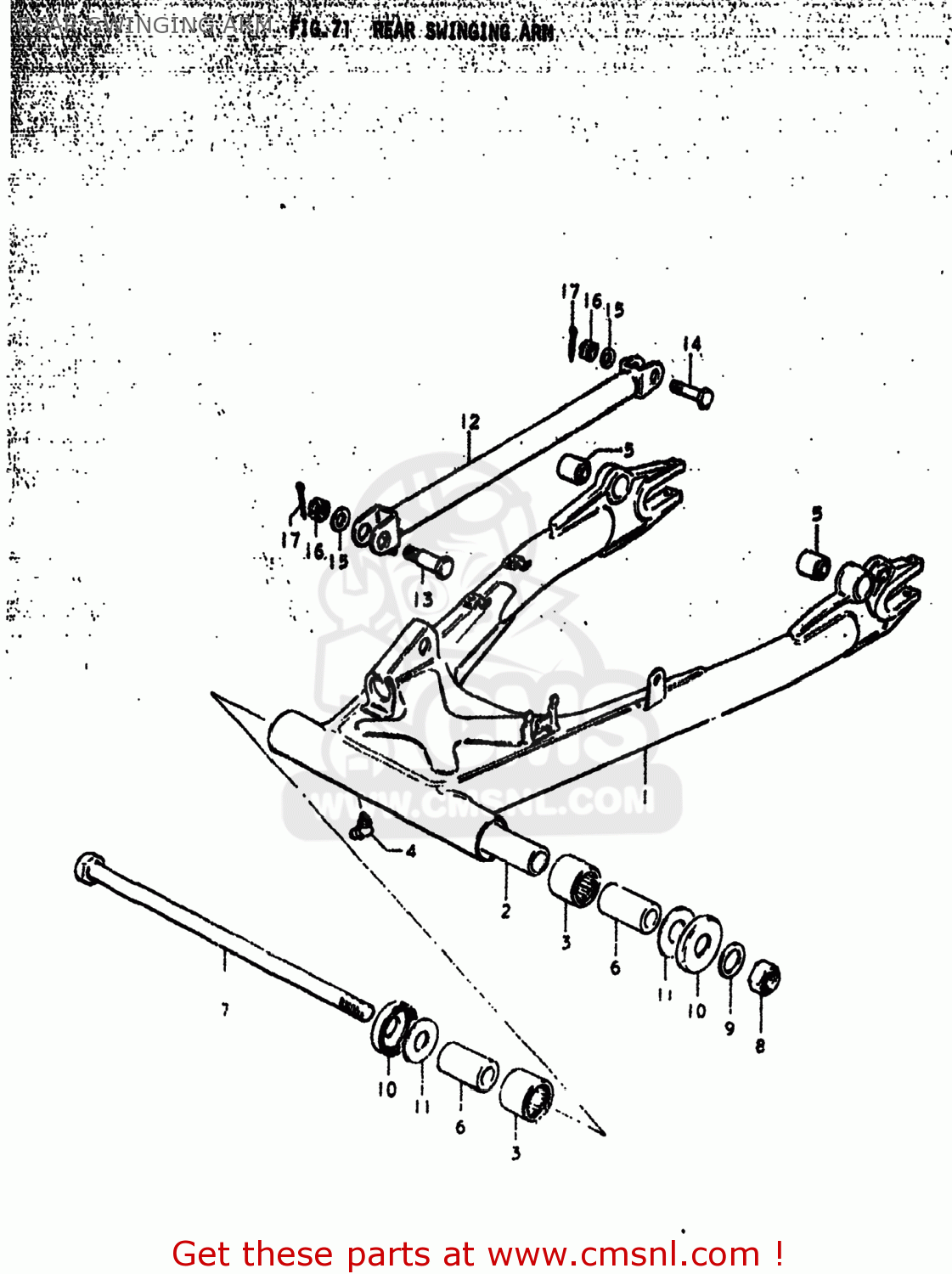

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6110045810019
ref: 1-1
61100-45812-019

SWING ARM ASSEMBLY,REAR

€ 108.50

1-2

6110045811019
ref: 1-2
61100-45812-019

SWING ARM ASSEMBLY,REAR

€ 108.50

2-1

6128045000
ref: 2-1

SPACER,SWING ARM,CENTER

€ 14.50

2-2

6128045001
ref: 2-2
61281-45001

SPACER,SWING ARM,CENTER

€ 19.50

2-3

6128145001
ref: 2-3

SPACER,RR SWGARM PIVOT CTR

€ 19.50

3

0926322017
ref: 3

BEARING(22X29X30)

€ 18.50

4

0835131008
ref: 4
08351-3100A

NIPPLE,GREASE

€ 10.50

5

0931910008
ref: 5

BUSH

€ 8.00

6-1

6125145001
ref: 6-1

SPACER,RR SWGARM PIVOT

€ 12.50

6-2

6125145000
ref: 6-2

SPACER,RR SWGARM PIVOT

€ 15.50

7

6121131001
ref: 7
61211-3100V

SHAFT,REAR SWING ARM

€ 62.50

8

0831921148
ref: 8
08319-2114A

NUT 14MM

€ 3.00

9

0832211148
ref: 9
08322-01147

WASHER

€ 2.00

10-1

6126245001
ref: 10-1
61262-45002

COVER,REAR SWING ARM DUST

€ 4.50

10-2

6126245002
ref: 10-2

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

11

0916014020
ref: 11

WASHER(14.2X34X1)

€ 2.50

12

6431045000019
ref: 12
64310-49000-019

LINK,REAR TORQUE

€ 16.00

13

0911110011
ref: 13
09111-10022-XC0

BOLT

€ 8.00

14

0910110017
ref: 14

BOLT(10X39)

€ 5.00

15

0832211108
ref: 15
08322-01107

WASHER

€ 2.50

16

0831441108
ref: 16
08314-4010B

NUT

€ 2.50

17

0411120208
ref: 17
04111-2020A

PIN 20X20

€ 1.50

all assemblies
