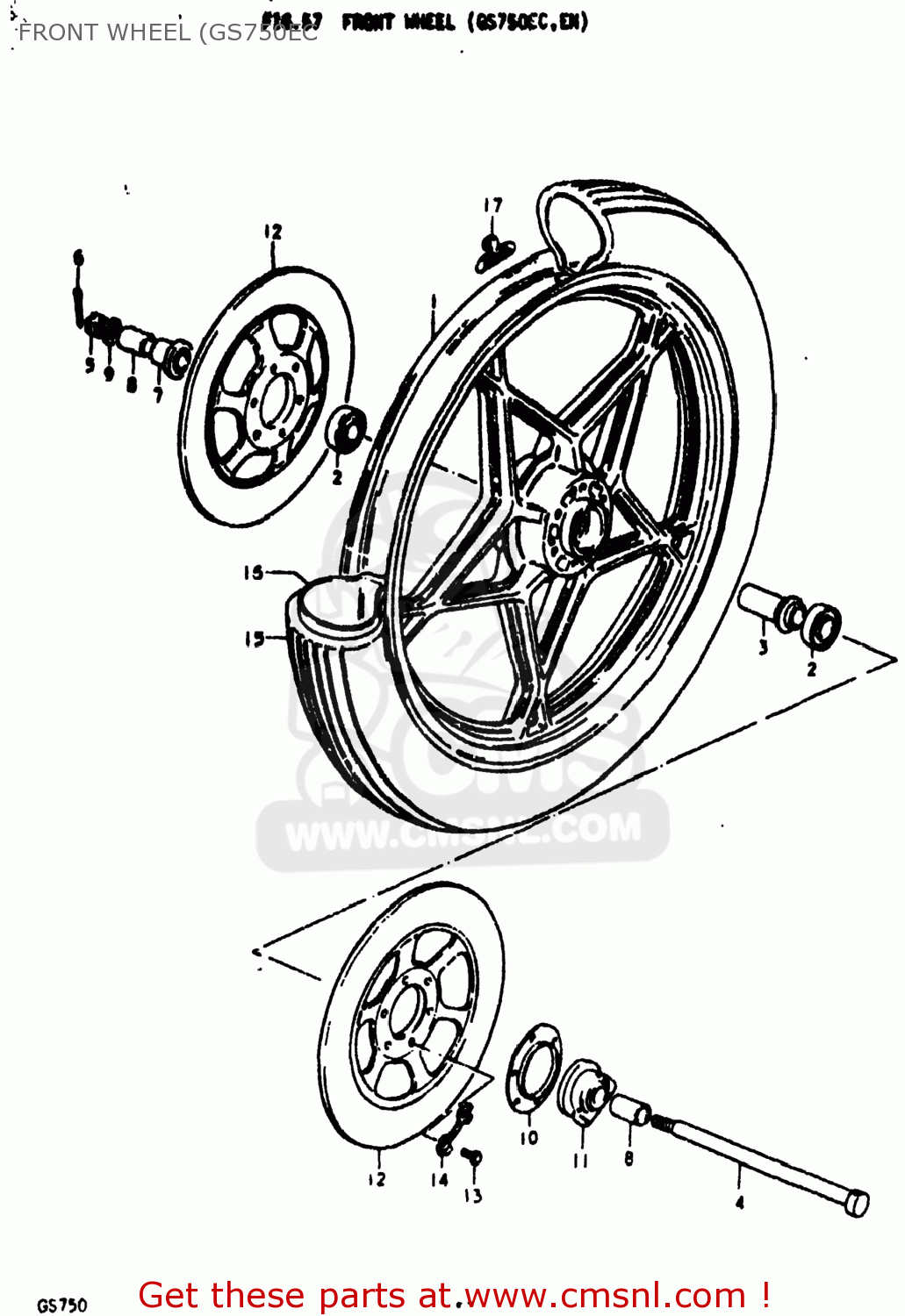

FRONT WHEEL (GS750EC
GS750C 1977 (B) USA (E03)
Front wheel (gs750ec diagram GS750C 1977 (B) USA (E03)
FRONT WHEEL (GS750EC GS750C 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411147601
ref: 1-1
54111-49350-291
WHEEL,FR(19XMT1.85)
€ 491.00
1-2
5411147620
ref: 1-2
54111-49350-291
WHEEL, FRONT
€ 491.00
2-1
0812363020
ref: 2-1
08123-63027
BEARING
€ 19.00
2-2
0812363027
ref: 2-2
BEARING
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
€ 13.00
4
5471133002
ref: 4
54711-3300V
AXLE,FRONT
€ 41.00
5
0831431128
ref: 5
08314-3112A
NUT 12MM
€ 2.00
6
0411130308
ref: 6
04111-3030A
COTTER PIN
€ 1.50
7-1
5474018401
ref: 7-1
54740-18402
SPACER,FRONT AXLE,RIGHT
€ 18.50
7-2
5474018402
ref: 7-2
SPACER,FR AXLE,R
€ 18.50
8
0918015034
ref: 8
SPACER(15X22X30)
€ 7.00
9
0832221128
ref: 9
08322-01127
WASHER
€ 2.00
10
5487145010
ref: 10
DUST SEAL,SPEEDOMETER GEAR BOX
€ 21.00
10
5487145010
ref: 10
DUST SEAL,SPEEDOMETER GEAR BOX
€ 21.00
11
5460018401
ref: 11
54600-18402
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 90.50
12
5921144000
ref: 12
DISC,REAR BRAKE
€ 250.50
13
0910008140
ref: 13
BOLT(8X25)
€ 2.00
14
0916908016
ref: 14
WASHER
€ 3.50
15
5510045030
ref: 15
TIRE,FRONT
€ 71.00
16
5520015010
ref: 16
55200-44610
TUBE,INNER
€ 41.00
17-1
5541147000
ref: 17-1
55411-47001
BALANCER,WHEEL
€ 4.00
17-2
5541247000
ref: 17-2
55412-47001
BALANCER,WHEEL
€ 3.50
