Buy Suzuki GS Parts Online


OIL PAN

GS750C 1978 (C) USA (E03)

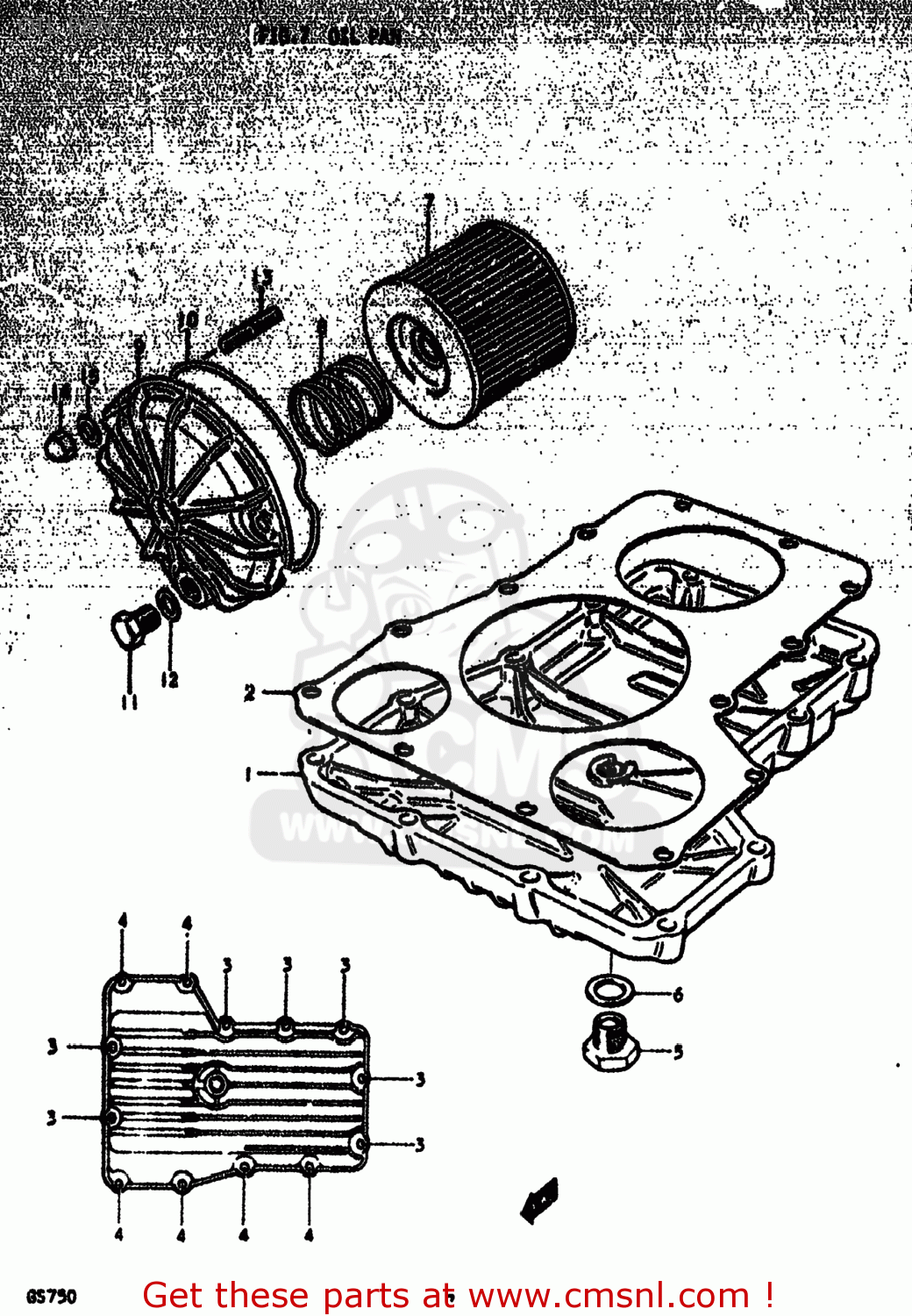

Oil pan diagram GS750C 1978 (C) USA (E03)

OIL PAN GS750C 1978 (C) USA (E03)
OIL PAN GS750C 1978 (C) USA (E03)
OIL PAN GS750C 1978 (C) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1151145000
ref: 1-1
PAN,OIL
1151145000
€ 143.50
2-1
1148945000
ref: 2-1
11489-45001-H17
GASKET,OIL PAN (MCA)
1148945000
€ 15.50
2-2
1148945001
ref: 2-2
11489-45001-H17
GASKET,OIL PAN (MCA)
1148945001
€ 15.50
3
0151706308
ref: 3
01550-06307
BOLT
€ 2.00
4
0151706258
ref: 4
01550-06257
BOLT
0151706258
€ 2.50
5
0924714001
ref: 5
09247-14002
PLUG
0924714001
€ 5.00
6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
7
1651045040
ref: 7
FILTER ASSY,ENGINE OIL
1651045040
€ 7.50
8
0944032004
ref: 8
SPRING
0944032004
€ 13.50
9-1
1651245000
ref: 9-1
16512-45101
CAP,OIL FILTER
1651245000
€ 37.50
9-2
1651245001
ref: 9-2
16512-45101
CAP,OIL FILTER
€ 37.50
10
1651845000
ref: 10
O RING,OIL FILTER CHAMBER CAP
1651845000
€ 7.50
11
0924710001
ref: 11
PLUG
0924710001
€ 3.00
12
0916810002
ref: 12
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
13
0142106208
ref: 13
01421-0620A
STUD 6X20
0142106208
€ 2.50
14
0831311068
ref: 14
08313-10067
NUT
0831311068
€ 2.00
15
0832221068
ref: 15
08322-01067
WASHER
0832221068
€ 2.00
