FRONT MASTER CYLINDER

GS750L 1981 (X) USA (E03)

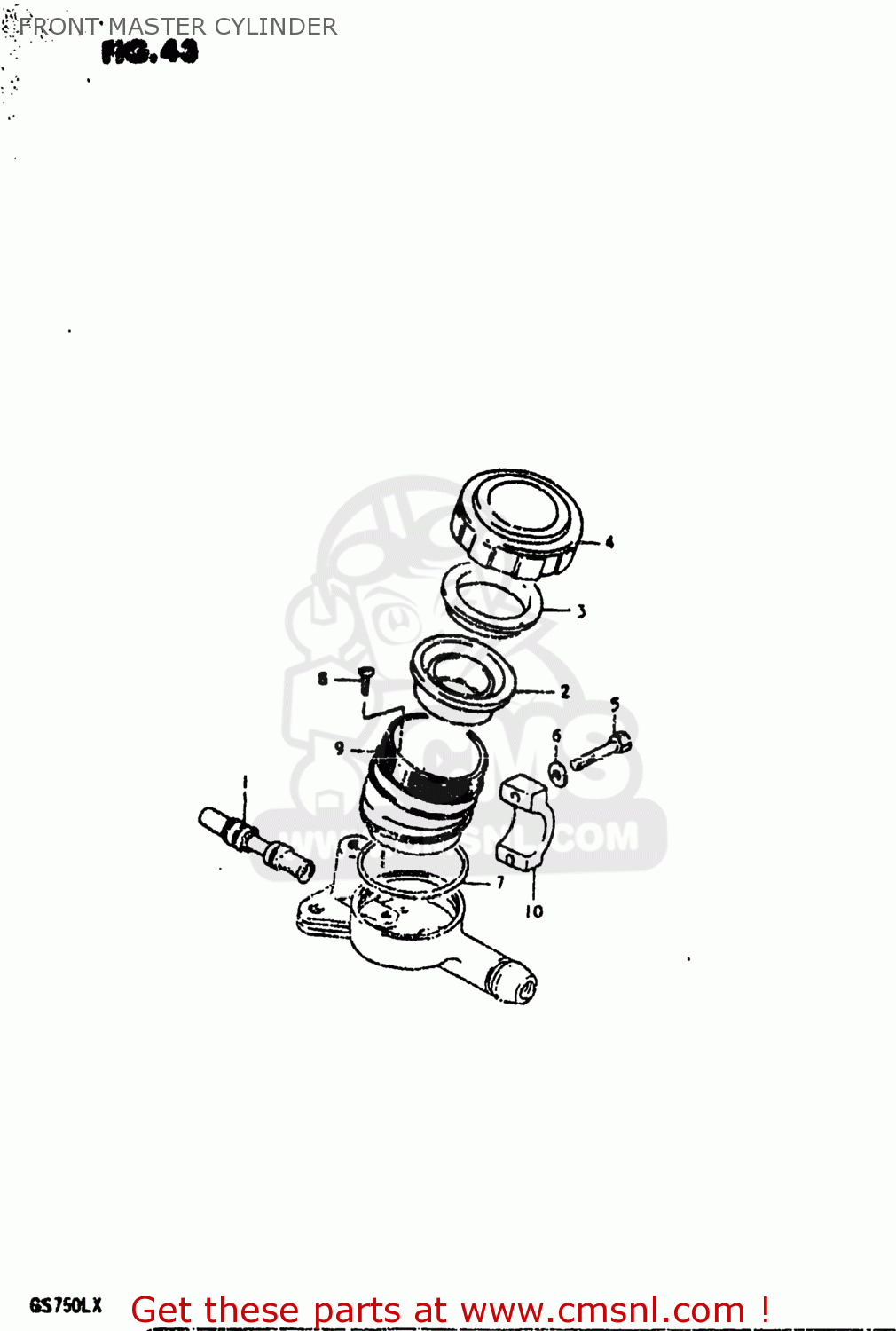

Front master cylinder diagram GS750L 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

5960045060
ref: 0
59600-450V0

CYLINDER ASSEMBLY,MASTER

€ 129.50

1-1

5960045810
ref: 1-1
59600-45811

CUP SET,MASTER CYLINDER

€ 73.50

1-2

5960045811
ref: 1-2

PISTON & CUP SET

€ 73.50

5966718441
ref: 2

DIAPHRAGM

€ 8.50

5966818441
ref: 3

PLATE,DIAPHRAGM

€ 3.50

5966933603
ref: 4
59669-07D00

CAP

€ 16.50

0110706258
ref: 5
01500-06257

BOLT

€ 2.00

0832221068
ref: 6
08322-01067

WASHER

€ 2.00

5968633600
ref: 7

O RING

€ 14.00

5968833601
ref: 8

SCREW,MASTER CYLINDER

€ 2.00

5968745050
ref: 9

RESERVOIR

€ 18.50

5967118441
ref: 10

HOLDER,MASTER CYLINDER

€ 5.50

all assemblies
