CARBURETOR
GS850G 1981 (X) USA (E03)

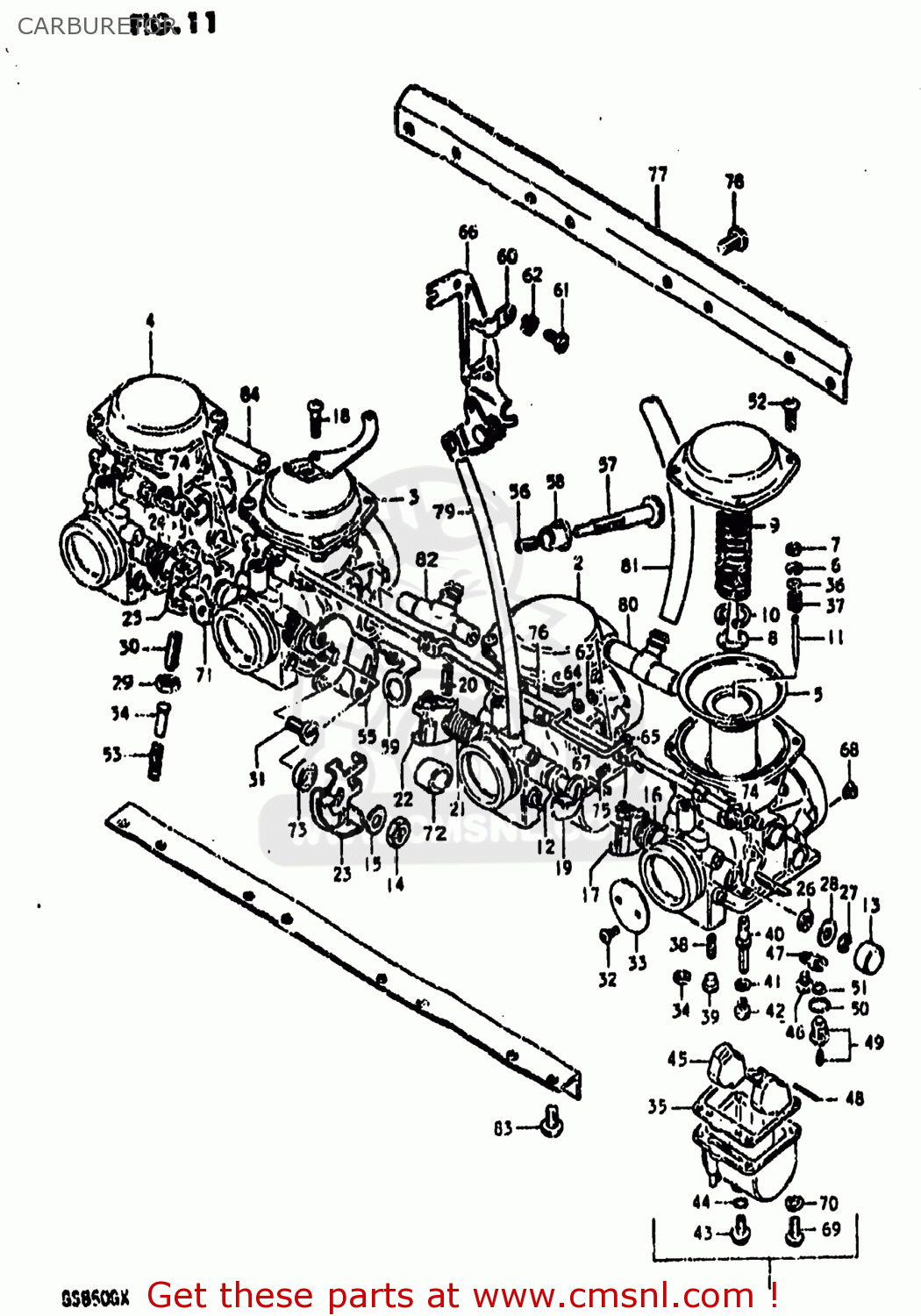

Carburetor diagram GS850G 1981 (X) USA (E03)
CARBURETOR GS850G 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
1320045110
ref: 0
CARBURETOR ASSEMBLY
€ 485.00
1
1320145110
ref: 1
CARBURETOR ASSEMBLY
€ 200.50
2
1320245110
ref: 2
CARBURETOR ASSEMBLY
€ 173.50
3
1320345110
ref: 3
CARBURETOR ASSEMBLY
€ 145.50
4
1320445110
ref: 4
CARBURETOR ASSEMBLY
€ 202.50
5
1350045110
ref: 5
DIAPHRAGM
€ 170.50
6
1339431210
ref: 6
CLIP,NEEDLE
€ 3.50
7
1338744030
ref: 7
RING
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
€ 10.50
9
1350344080
ref: 9
SPRING
€ 11.50
10
1358144030
ref: 10
E RING
€ 6.50
11
1338345110
ref: 11
NEEDLE JET
€ 15.00
12
1355795210
ref: 12
GASKET,THROTTLE SHAFT (NAS)
€ 2.50
13
1357847070
ref: 13
CAP
€ 5.50
14
0831012088
ref: 14
08310-00087
NUT
€ 2.00
15
1360647070
ref: 15
WASHER
€ 3.00
16
1357347070
ref: 16
SPRING,THROTTLE SHAFT
€ 6.00
17
1355047070
ref: 17
SHAFT,THROTTLE
€ 44.50
18
0211105158
ref: 18
02112-05167
SCREW
€ 2.50
19
1355045110
ref: 19
SHAFT ASSEMBLY
€ 0.00
20
1356347070
ref: 20
PIN,THROTTLE SHAFT
€ 0.00
21
1357345110
ref: 21
SPRING,THROTTLE SHAFT
€ 0.00
22
1355347070
ref: 22
LEVER,THROTTLE SHAFT
€ 0.00
23
1355547070
ref: 23
LEVER ASSEMBLY,THROTTLE
€ 0.00
24
1357347080
ref: 24
SPRING,THROTTLE SHAFT
€ 0.00
25
1355047090
ref: 25
SHAFT,THROTTLE
€ 0.00
26
1355631210
ref: 26
13651-51010
SEAL
€ 4.00
27
1361744080
ref: 27
E RING
€ 3.50
28
1355747070
ref: 28
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
29
1360747070
ref: 29
NUT
€ 4.00
30
1360547070
ref: 30
SCREW
€ 5.50
31
1360545110
ref: 31
SCREW
€ 0.00
32
1360444080
ref: 32
SCREW
€ 3.50
33
1355145110
ref: 33
VALVE,THROTTLE
€ 0.00
34
1325844080
ref: 34
GASKET (NAS)
€ 4.00
35
1325144080
ref: 35
13251-44080-H17
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
36
1338244030
ref: 36
WASHER
€ 3.50
37
1338844030
ref: 37
SPRING
€ 6.00
38
0949240007
ref: 38
JET,PILOT
€ 17.50
39
1335744080
ref: 39
PLUG,NEEDLE JET
€ 4.50
40
0949400263
ref: 40
JET,NEEDLE
€ 20.50
41
1333244080
ref: 41
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
42
0949123011
ref: 42
JET,MAIN(115)
€ 10.50
43
1324744080
ref: 43
PLUG,DRAIN
€ 9.50
44
1324644080
ref: 44
GASKET (NAS)
€ 3.50
45
1325044080
ref: 45
FLOAT
€ 31.00
46
0211104067
ref: 46
02112-0406B
SCREW
€ 2.00
47
1337339110
ref: 47
PLATE
€ 6.50
48
1325492311
ref: 48
PIN,FLOAT
€ 2.00
49
1337044080
ref: 49
13370-44500
VALVE ASSEMBLY,NEEDLE
€ 40.50
50
6626399050
ref: 50
13374-35C00
O RING
€ 6.00
51
1337644080
ref: 51
13376-19F00
FILTER
€ 6.50
52
0211205128
ref: 52
02112-05127
SCREW
€ 2.50
53
1326844010
ref: 53
SPRING,THROTTLE SCREW
€ 3.00
54
1357547070
ref: 54
PIN,THROTTLE LEVER
€ 2.50
55
1362745110
ref: 55
BRACKET,THROTTLE ADJUST
€ 0.00
56
1327193011
ref: 56
SPRING
€ 4.50
57
1326747070
ref: 57
SCREW
€ 21.00
58
1327631210
ref: 58
BUSH
€ 4.00
59
1362744090
ref: 59
BRACKET,THROTTLE ADJUST
€ 0.00
60
1342147070
ref: 60
BRACKET,STARTER
€ 9.00
61
0110405108
ref: 61
01500-0510B
BOLT
€ 1.50
62
0832121058
ref: 62
08321-0105A
LOCK WASHER
€ 2.00
63
1341547070
ref: 63
13394-10010
CAP,LEVER
€ 4.50
64
1352398010
ref: 64
SEAT,SPRING
€ 5.00
65
1342247070
ref: 65
LEVER ASSY
€ 11.50
66
1362445110
ref: 66
BRACKET
€ 0.00
67
1342545110
ref: 67
ROD,STARTER LEVER
€ 6.00
68
0949338001
ref: 68
JET,AIR(190)
€ 9.00
69
0211205168
ref: 69
02112-05167
SCREW
€ 2.50
70
0832121058
ref: 70
08321-0105A
LOCK WASHER
€ 2.00
71
1355045120
ref: 71
SHAFT ASSEMBLY
€ 0.00
72
1357445110
ref: 72
RING
€ 3.50
73
1357445120
ref: 73
RING
€ 2.50
74
1342244080
ref: 74
LEVER
€ 10.00
75
1360547070
ref: 75
SCREW
€ 5.50
76
1341045110
ref: 76
SHAFT,STARTER
€ 0.00
77
1362845110
ref: 77
BRACKET
€ 0.00
78
1360547090
ref: 78
02142-05127
SCREW
€ 1.50
79
1368345110
ref: 79
09355-45855-600
HOSE
€ 14.00
80
1368547070
ref: 80
NIPPLE
€ 25.00
81
1368347070
ref: 81
09352-60103-600
HOSE
€ 18.00
82
1368545110
ref: 82
NIPPLE
€ 31.50
83
0211206126
ref: 83
02112-0612A
SCREW
€ 1.50
84
1368547080
ref: 84
NIPPLE,CARBURETOR
€ 25.50
