FRONT WHEEL

GS850G (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

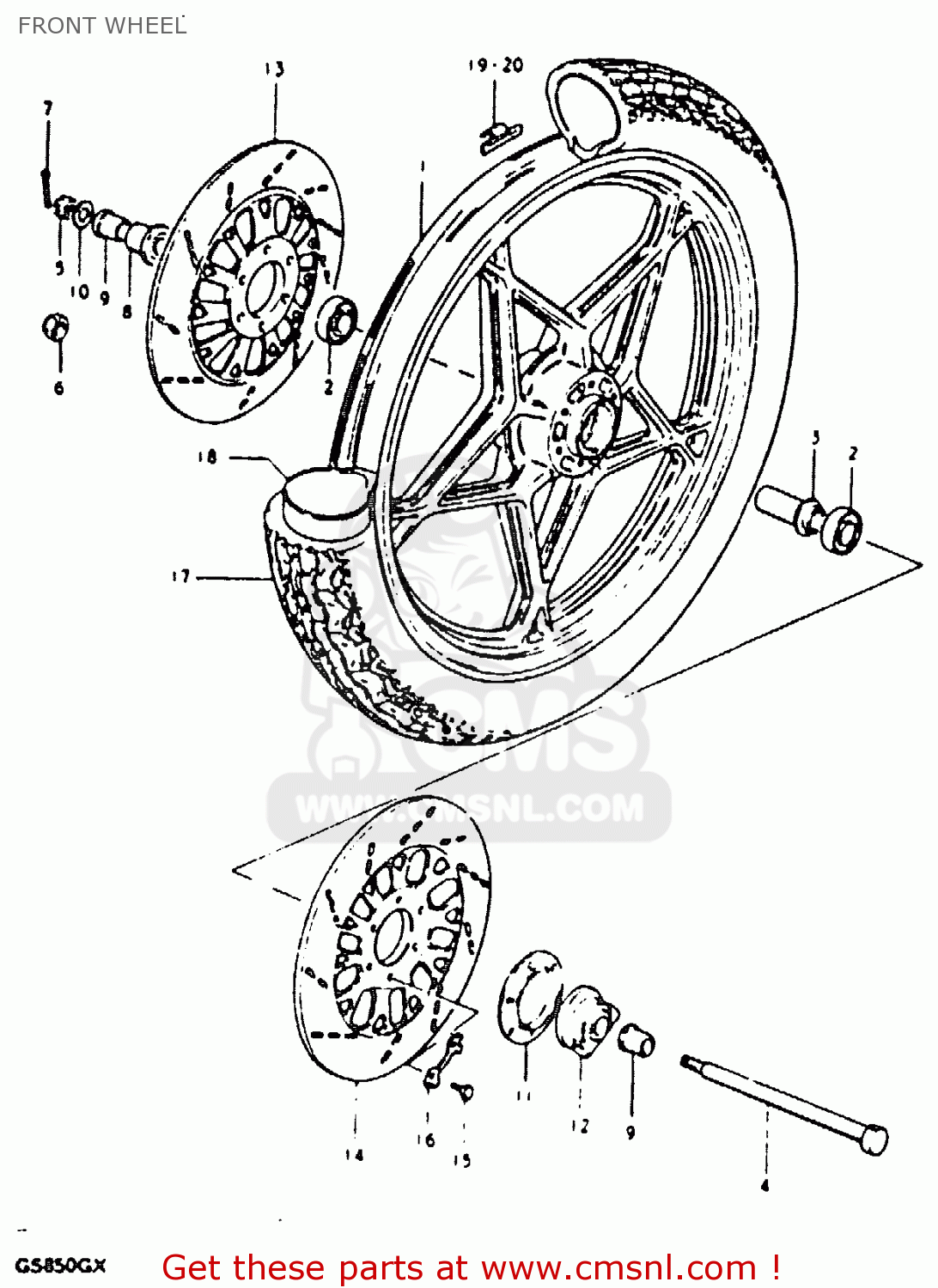

Front wheel diagram GS850G (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

FRONT WHEEL GS850G (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

FRONT WHEEL GS850G (E01 E02 E04 E17 E18 E21 E22 E24 E25 E26 E34 E39

prices are in EUR

ref

part #

description

quantity

1

541114510112U
ref: 1
FROM 54111-45101

CASTING WHEEL,FRONT 1.85

€ 547.00

2

0812363027
ref: 2

BEARING

€ 19.00

3

5473018400
ref: 3

SPACER,FR HUB BEARING

€ 12.00

4

5471149000
ref: 4

AXLE,FR

€ 41.00

5

0831431128
ref: 5

NUT 12MM

€ 2.00

6

NOTUSED
ref: 6

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

7

0411130308
ref: 7

COTTER PIN

€ 1.50

8

5474018402
ref: 8

SPACER,FR AXLE,R

€ 18.50

9

5474149000
ref: 9

SPACER,FR AXLE,L

€ 14.00

10

0832221128
ref: 10

WASHER

€ 2.00

11

5487145010
ref: 11

DUST SEAL,SPEEDOMETER GEAR BOX

€ 19.00

12

5460018401
ref: 12

BOX ASSEMBLY,SPEEDOMETER GEAR

€ 90.50

13

5921145250
ref: 13

DISC,FR BRAKE,R

€ 149.00

14

5922145250
ref: 14

DISC,FR BRAKE,L

€ 149.00

15

0910008140
ref: 15

BOLT(8X25)

€ 2.00

16

0916908016
ref: 16

WASHER

€ 3.50

17

5510045116
ref: 17

TIRE,FRONT

€ 0.00

18

5520015010
ref: 18

TUBE,INNER

€ 41.00

19

5541145100
ref: 19

BALANCER,WHEEL

€ 6.00

20

5541245100
ref: 20

BALANCER,WHEEL

€ 4.00
