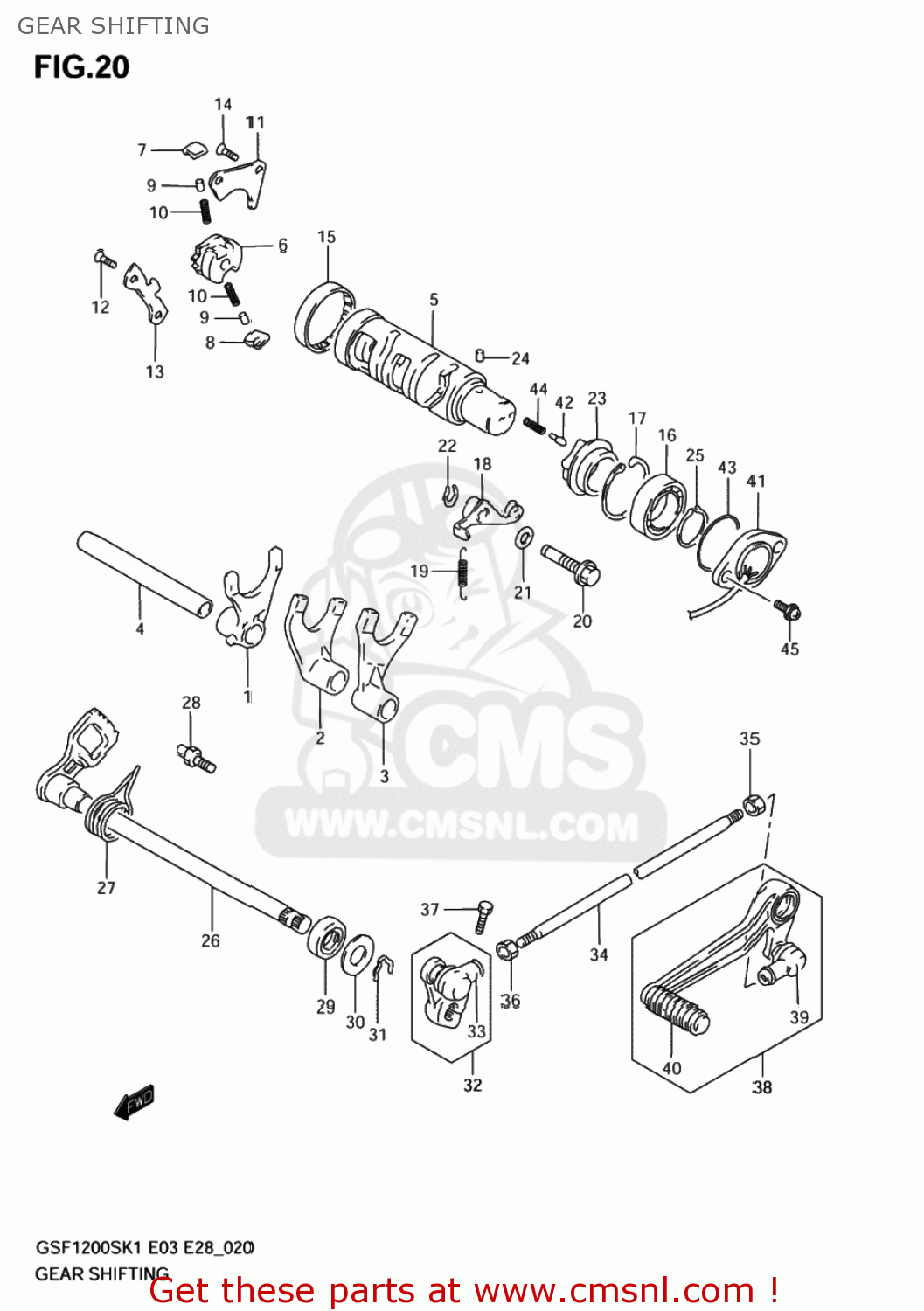

GEAR SHIFTING

ref

part #

description

quantity

1

2521106B02
ref: 1

FORK,GEAR SHIFT NO.1

€ 83.50

2

2522106B00
ref: 2

FORK,GEAR SHIFT NO.2

€ 83.50

3

2523106B00
ref: 3

FORK,GEAR SHIFT NO.3

€ 83.50

4

2541127A00
ref: 4

SHAFT,GEAR SHIFT FORK(L:128)

€ 23.50

5

2531006B03
ref: 5

CAM,GEAR SHIFT

€ 196.50

6

2532231310
ref: 6

GEAR,GEAR SHIFT CAM DRIVEN

€ 14.50

7

2532334201
ref: 7

PAWL,GEAR SHIFT NO.1

€ 6.00

8

2532434201
ref: 8

PAWL,GEAR SHIFT NO.2

€ 6.00

9

0926105003
ref: 9

PIN(5X8)

€ 1.50

10

0944004003
ref: 10

SPRING

€ 1.50

11

2533131301
ref: 11
25331-31310

LIFTER,GEAR SHIFT PAWL

€ 7.00

12

0912606011
ref: 12

SCREW(6X12)

€ 2.00

13

2534127A00
ref: 13

GUIDE,GEAR SHIFT CAM

€ 8.50

14

0912606011
ref: 14

SCREW(6X12)

€ 2.00

15

0926343001
ref: 15

BEARING(43X49X12)

€ 30.00

16

0811369050
ref: 16

BEARING

€ 36.00

17

0833141426
ref: 17
08331-4142A

CIRCLIP

€ 1.50

18

2535027A10
ref: 18

STOPPER,GEAR SHIFT CAM

€ 21.00

19

0944309033
ref: 19

SPRING

€ 7.00

20

2535327A00
ref: 20

SHAFT,GEAR SHIFT CAM STOPPER

€ 5.50

21

0916810002
ref: 21

GASKET(10X14X3.6) (NAS)

€ 2.00

22

0833131086
ref: 22
08331-3108A

CIRCLIP

€ 2.00

23

2538138400
ref: 23

PLATE,STOPPER

€ 22.00

24

0422104069
ref: 24

PIN

€ 2.00

25

0833131256
ref: 25
08331-3125A

CIRCLIP

€ 2.00

26

2551019C01
ref: 26

SHAFT,GEAR SHIFT

€ 91.50

27

0944426017
ref: 27

SPRING

€ 5.00

28

2567101011
ref: 28

STOPPER,GEAR SHIFT ARM

€ 3.00

29

0928512002
ref: 29
09285-12006

OIL SEAL

€ 7.00

30

0916012090
ref: 30
09160-12089

WASHER (12.5X26X1.6)

€ 2.00

31

0833131126
ref: 31
08331-3112A

CIRCLIP,12 MM

€ 2.00

32

2552022A00
ref: 32

ARM,GEAR SHIFT LINK

€ 46.50

33

2552647000
ref: 33

COVER,DUST

€ 3.50

34

2552526E01
ref: 34

ROD,GEAR SHIFT LINK

€ 14.50

35-1

0914006011
ref: 35-1

NUT

€ 1.50

35-2

0914006025
ref: 35-2

NUT

€ 2.00

36

0831000067
ref: 36

NUT

€ 2.50

37

0150006203
ref: 37
01500-0620A

BOLT

€ 2.00

38

2560033E00
ref: 38

LEVER ASSY,GEAR SHIFT

€ 106.00

39

2552647000
ref: 39

COVER,DUST

€ 3.50

40

2565220C00
ref: 40

RUBBER,GEAR SHIFT PEDAL

€ 8.00

41

3772020C10
ref: 41

BASE ASSY,GEAR SHIFT TERMINAL

€ 90.50

42

0920905011
ref: 42

PIN(5X15.5)

€ 2.00

43

0928035006
ref: 43

O RING(D:2.4,ID:35.5)

€ 4.00

44

0944004010
ref: 44

SPRING

€ 1.50

45-1

0211275163
ref: 45-1
02112-7516A

SCREW

€ 2.50

45-2

0913805015
ref: 45-2

SCREW(5X16)

€ 2.00
