FUEL TANK (MODEL W/X)

GSF1200S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

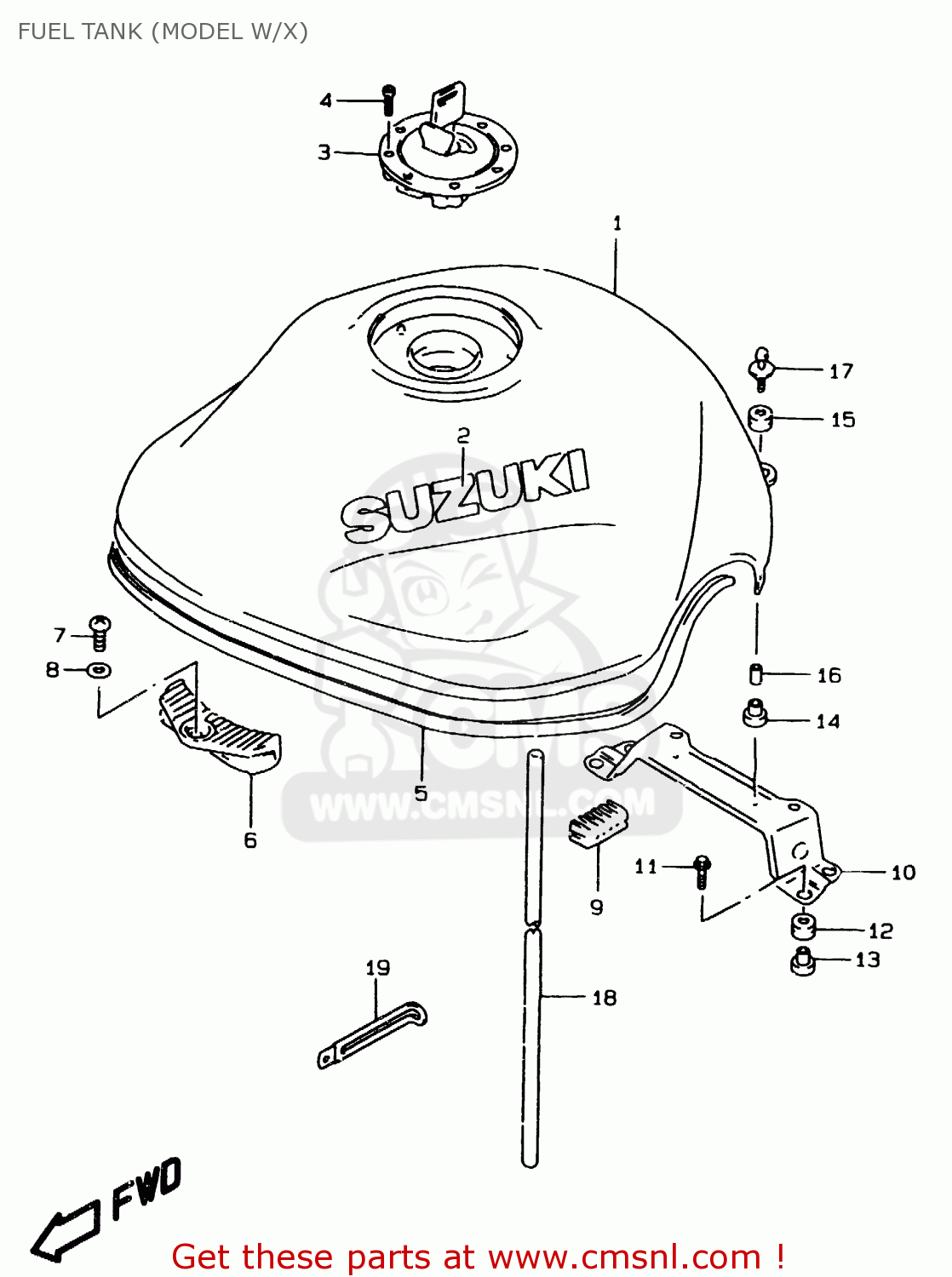

Fuel tank (model w/x) diagram GSF1200S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

FUEL TANK (MODEL W/X) GSF1200S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

FUEL TANK (MODEL W/X) GSF1200S 1996 (T) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4410026E61Y1X
ref: 1

TANK ASSEMBLY,FUEL

€ 644.00

1

4410026E612JX
ref: 1

TANK ASSEMBLY,FUEL (BLACK)

€ 502.50

1

4410026E611UH
ref: 1
MODEL W

TANK ASSEMBLY,FUEL

€ 811.50

1

4410026E61Y4H
ref: 1
MODEL W

TANK ASSEMBLY,FUEL (SILVER)

€ 775.00

1

4410026E61Y7F
ref: 1
MODEL X

TANK ASSEMBLY,FUEL (BROWN)

€ 795.50

1

4410026E61Y7G
ref: 1
MODEL X

TANK ASSEMBLY,FUEL (GREEN)

€ 596.00

2

6811147C0024G
ref: 2
FOR Y1X, 2JX

EMBLEM,FUEL TANK

€ 17.50

2

6811147C001RR
ref: 2
FOR 1UH, Y7F, Y7G

EMBLEM,FUEL TANK (GOLD)

€ 13.00

2

6811147C0029F
ref: 2
FOR Y4H

EMBLEM,FUEL TANK

€ 16.00

3

4420101832
ref: 3

CAP SET,FUEL TANK

€ 204.00

4

0910605017
ref: 4

BOLT(5X20)

€ 3.00

5

6824104X5000B
ref: 5

MOLDING

€ 23.00

6

4451127E00
ref: 6

CUSHION,FUEL TANK FR

€ 11.00

7

0214205103
ref: 7

SCREW

€ 2.50

8

0916905012
ref: 8

WASHER

€ 3.00

9

4514931300
ref: 9

CUSHION,SEAT(40X20X15)

€ 2.00

10

4453026E00
ref: 10

BRACKET,FUEL TANK RR

€ 35.00

11

0911606146
ref: 11

BOLT(6X25)

€ 2.50

12

0932009009
ref: 12

CUSHION

€ 5.00

13

0916906062
ref: 13

WASHER

€ 3.00

14

0932010038
ref: 14

CUSHION

€ 4.00

15

0932014017
ref: 15

CUSHION

€ 3.00

16

0918006271
ref: 16

SPACER(6.5X9X18)

€ 2.00

17

0911606172
ref: 17

BOLT(6X30)

€ 2.50

18

093527010300B
ref: 18

HOSE(7X10.2X2000)

€ 17.50

19

0940410417
ref: 19

CLAMP(L:97)

€ 2.50
