AIR CLEANER

GSF600S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

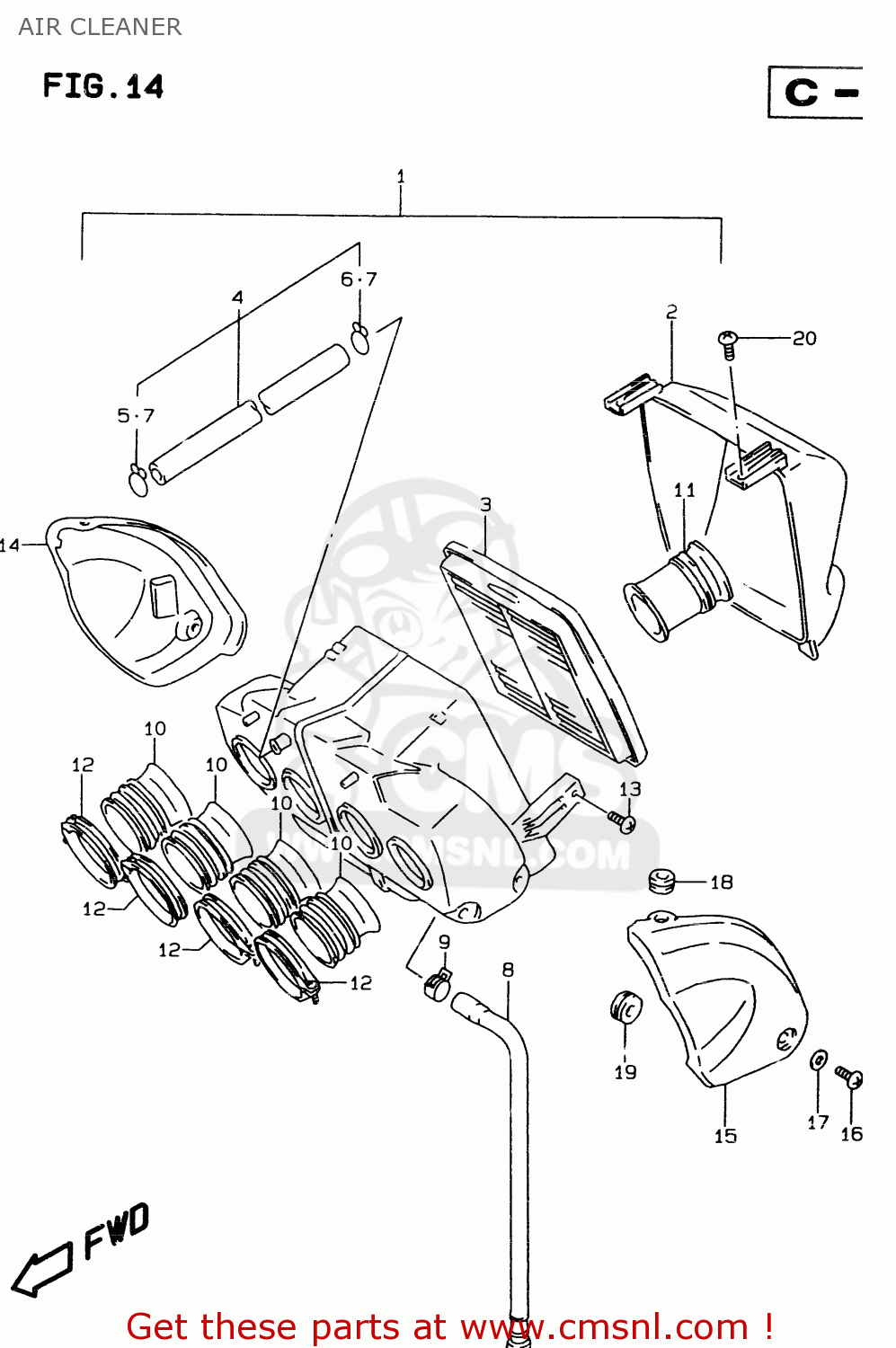

Air cleaner diagram GSF600S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

AIR CLEANER GSF600S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

AIR CLEANER GSF600S 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

1370026E00
ref: 1-1

CLEANER ASSY,AIR

€ 296.00

1-2

1370026E10
ref: 1-2
E18

CLEANER ASSEMBLY,AIR

€ 0.00

2

1374017E02
ref: 2

CAP,AIR CLEANER

€ 38.50

3

1378017E00
ref: 3

FILTER,AIR

€ 34.50

4-1

1385027E00
ref: 4-1

TUBE,BREATHER

€ 18.00

4-2

1385026E10
ref: 4-2
E18

TUBE,BREATHER

€ 0.00

5

0940114301
ref: 5

CLIP

€ 2.00

6

0940116401
ref: 6

CLIP

€ 3.00

7

0940114301
ref: 7
E18

CLIP

€ 2.00

8

1387021458
ref: 8

TUBE,DRAIN

€ 23.50

9-1

0940113413
ref: 9-1
MODEL S/T/V

CLIP

€ 2.50

9-2

0940113417
ref: 9-2
MODEL W

CLIP

€ 2.50

10

1388126E00
ref: 10

TUBE,OUTLET

€ 28.50

11

1389117E00
ref: 11

TUBE,INLET

€ 22.50

12

0940256208
ref: 12

CLAMP

€ 3.50

13

0214205127
ref: 13

SCREW

€ 1.50

14-1

1391026E00
ref: 14-1
MODEL S/T/V

COVER,AIR CLEANER,RIGHT

€ 80.00

14-2

1391027E00
ref: 14-2
MODEL W

COVER COMP,AIR CLEANER,RIGHT

€ 69.00

15-1

1392026E00
ref: 15-1
MODEL S/T/V

COVER,AIR CLEANER,LEFT

€ 73.00

15-2

1392027E00
ref: 15-2
MODEL W

COVER COMP,AIR CLEANER,LEFT

€ 72.50

16

0913905025
ref: 16

SCREW(5X14)

€ 2.00

17

0916905013
ref: 17

WASHER

€ 8.00

18-1

0932005006
ref: 18-1
MODEL S/T/V

CUSHION

€ 4.00

18-2

0932006504
ref: 18-2
MODEL W

CUSHION

€ 4.00

19

0932008018
ref: 19

CUSHION

€ 4.00

20

0214206123
ref: 20

SCREW 6X12

€ 2.00
