STEERING STEM

GSF600S1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

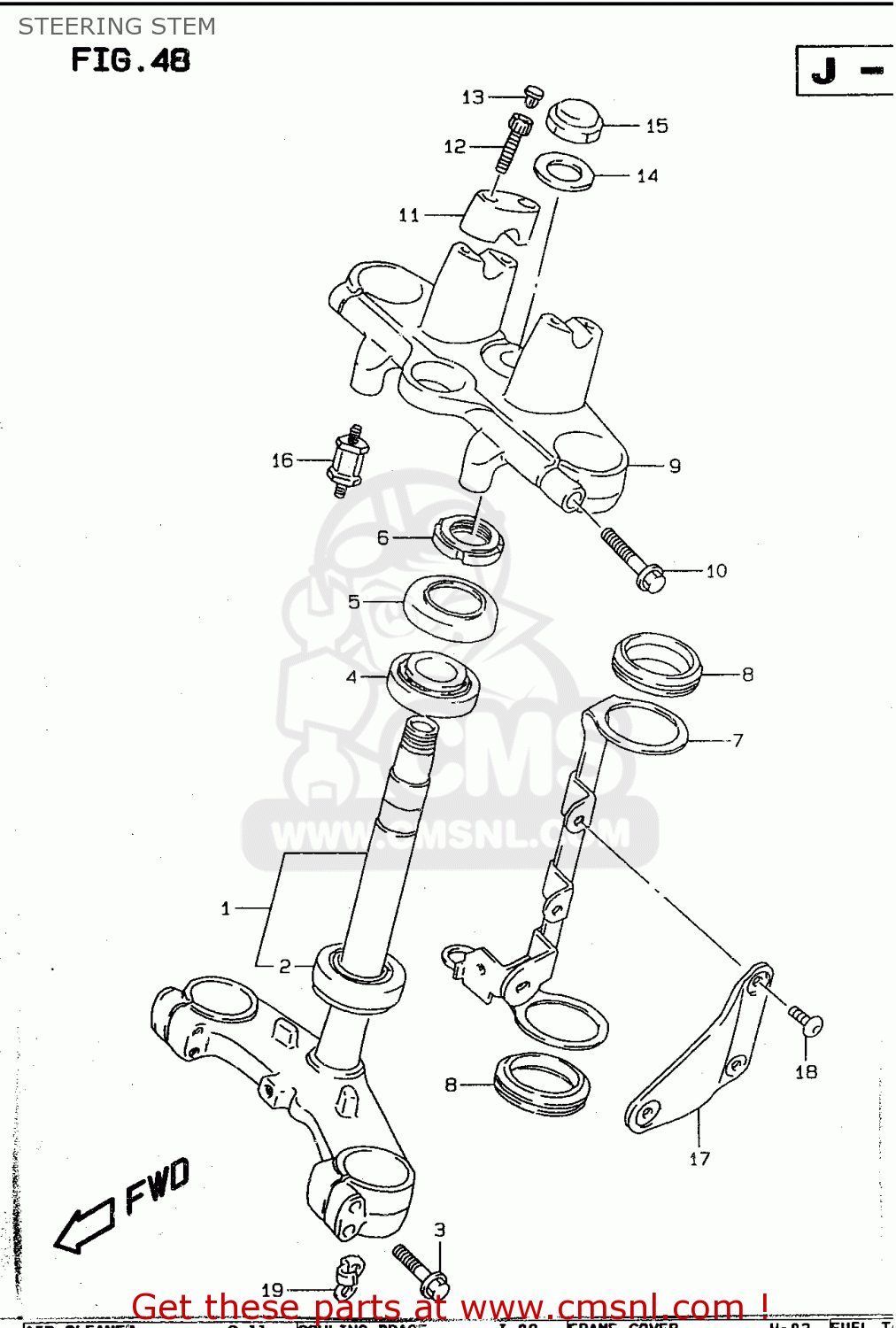

Steering stem diagram GSF600S1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

STEERING STEM GSF600S1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

STEERING STEM GSF600S1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

5141026E00
ref: 1

STEM,STEERING

€ 411.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

0155008407
ref: 3

BOLT

€ 3.50

4

0926525019
ref: 4

BEARING(25X47X15)

€ 48.50

5

5164349002
ref: 5

SEAL,STEERING UPR DUST

€ 7.50

6

5163128000
ref: 6

NUT,STEERING STEM(25X44X10)

€ 12.50

7-1

5153026E00
ref: 7-1
GSF600S/US/T/UT/V/UV

BRACKET,HEADLAMP HOUSING,R

€ 132.50

7-2

5154026E00
ref: 7-2
GSF600S/US/T/UT/V/UV

BRACKET,HEADLAMP HOUSING,L

€ 32.50

8

5155338C00
ref: 8
GSF600S/US/T/UT/V/UV

DAMPER,HEADLAMP HSG BRACKET

€ 8.50

9

5131126E00
ref: 9

HEAD,STEERING STEM

€ 260.50

10

0155008407
ref: 10

BOLT

€ 3.50

11

5621111D100FP
ref: 11

HOLDER,HANDLE UPR

€ 16.00

12

0713008307
ref: 12

BOLT

€ 4.50

13

0925006011
ref: 13

CAP(OD:11)

€ 2.50

14

5135610D03
ref: 14

WASHER(22.5X35.9X1.6)

€ 3.00

15

5135324B00
ref: 15

NUT,CAP

€ 21.50

16

1778810D00
ref: 16

BOLT,SPEEDOMETER CUSHION

€ 8.50

17-1

5185126E00
ref: 17-1
GSF600S/US/T/UT/V/UV

STAY,HEADLAMP HOUSING,R

€ 40.00

17-2

5186126E00
ref: 17-2
GSF600S/US/T/UT/V/UV

STAY,HEADLAMP HOUSING,L

€ 35.50

18

0913906027
ref: 18
GSF600S/US/T/UT/V/UV

SCREW(6X12)

€ 3.00

19

3493826E20
ref: 19
GSF600ST/SUT/SV/SUV/

GUIDE,SPEEDOMETER CABLE

€ 7.00
