FRONT FENDER (GSF600S/US/T/UT/V/UV/W/UW)

GSF600U 1995 (S) GERMANY (E22)

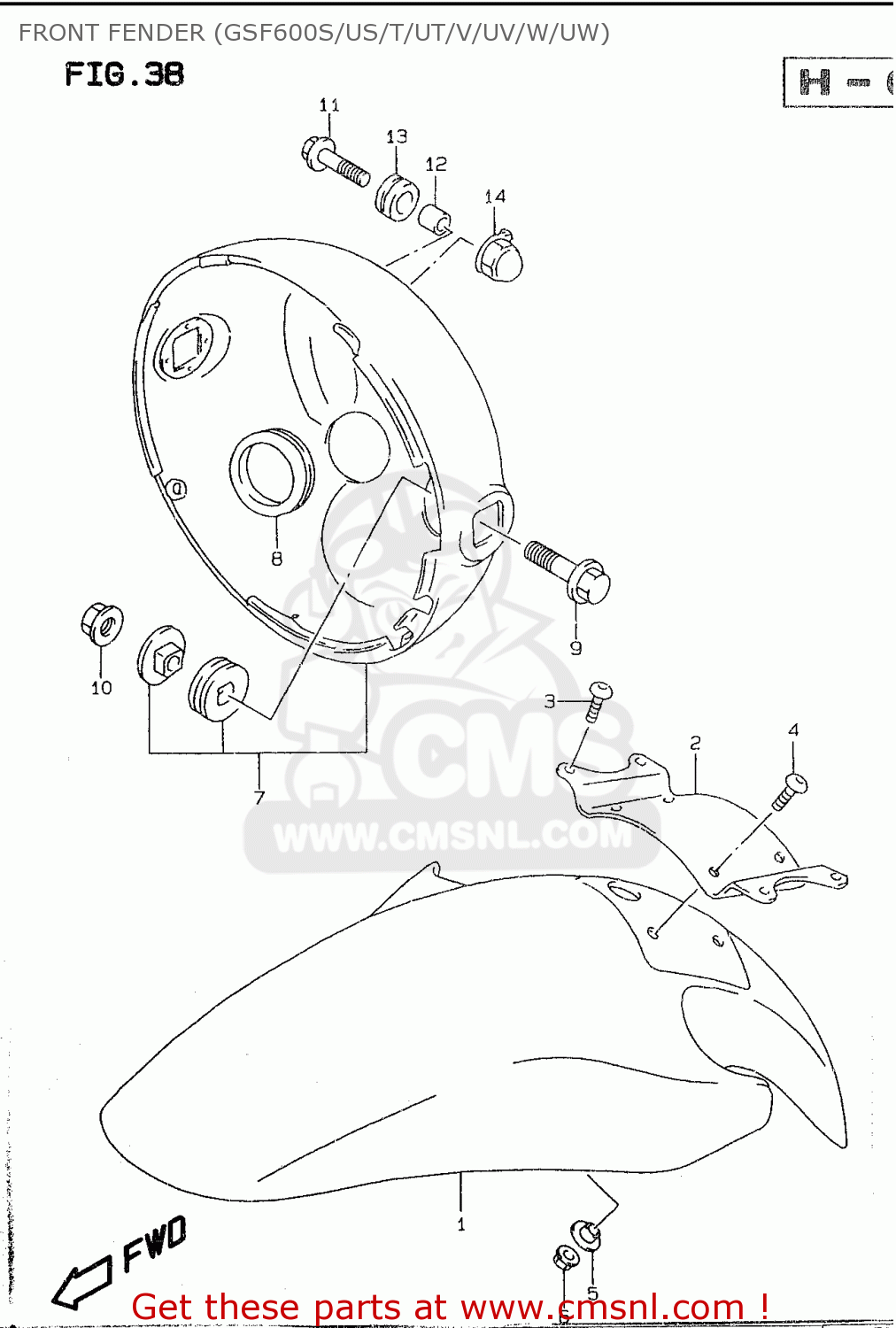

Front fender (gsf600s/us/t/ut/v/uv/w/uw) diagram GSF600U 1995 (S) GERMANY (E22)

FRONT FENDER (GSF600S/US/T/UT/V/UV/W/UW) GSF600U 1995 (S) GERMANY (E22)

FRONT FENDER (GSF600S/US/T/UT/V/UV/W/UW) GSF600U 1995 (S) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1-1

5310921E110WP
ref: 1-1
MODEL S/T

FENDER SET,FR

€ 145.50

1-2

5310921E1128V
ref: 1-2
MODEL S/T/V

FENDER SET,FR

€ 149.50

1-3

5310921E111ZV
ref: 1-3
MODEL T

FENDER SET,FR

€ 180.50

1-4

5310921E11Y0V
ref: 1-4
MODEL V/W

FENDER SET,FR

€ 150.50

1-5

5310921E1133J
ref: 1-5
MODEL V/W

FENDER SET,FR

€ 149.00

1-6

5310921E11Y3H
ref: 1-6
MODEL W

FENDER SET,FR

€ 150.50

2

5311421E00
ref: 2

BRACE,FR FENDER

€ 50.00

3

0913906027
ref: 3

SCREW(6X12)

€ 3.00

4

0913905042
ref: 4

SCREW(5X16)

€ 2.50

5

0916905010
ref: 5

WASHER

€ 3.00

6

0915905026
ref: 6

NUT

€ 2.50

7

5181001D11
ref: 7

HOUSING,HEADLAMP

€ 124.00

8-1

5181701D00
ref: 8-1
MODEL S/T/V

GROMMET

€ 4.50

8-2

5181701D01
ref: 8-2
MODEL W

GROMMET

€ 4.50

9

0124408307
ref: 9

BOLT

€ 4.00

10

0831610083
ref: 10

NUT

€ 3.00

11

0911806007
ref: 11

BOLT

€ 3.00

12

0918007004
ref: 12

SPACER(6.5X10.5X12)

€ 2.50

13

0932010015
ref: 13

CUSHION

€ 2.50

14

5181506C00
ref: 14

PLATE,HEADLAMP

€ 5.00
