PUMP ASSY (MODEL K1/K2/K3)

GSX1300R HAYABUSA 2000 (Y) USA (E03)

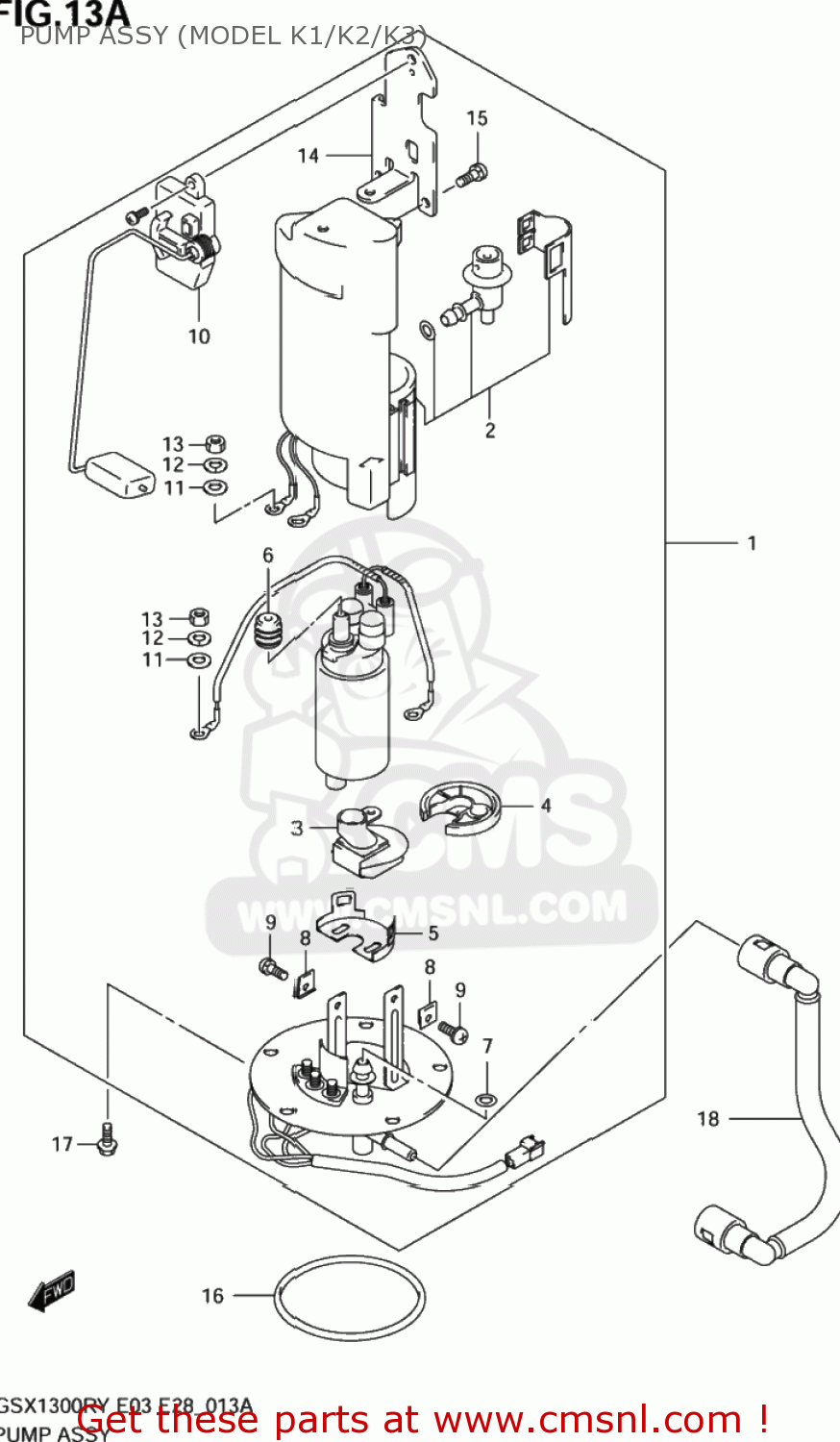

Pump assy (model k1/k2/k3) diagram GSX1300R HAYABUSA 2000 (Y) USA (E03)

PUMP ASSY (MODEL K1/K2/K3) GSX1300R HAYABUSA 2000 (Y) USA (E03)

PUMP ASSY (MODEL K1/K2/K3) GSX1300R HAYABUSA 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1510024FA0
ref: 1-1
15100-24FB0

PUMP ASSY,FUEL

€ 1,164.50

1-2

1510024FB0
ref: 1-2

PUMP ASSY,FUEL

€ 1,164.50

2-1

1541024FA0
ref: 2-1
15909-24FV0

FUEL FILTER ASS

€ 258.00

2-2

1541024FB0
ref: 2-2

FILTER,FUEL

€ 320.00

3-1

1542035F01
ref: 3-1

STRAINER,FUEL PUMP

€ 55.00

3-2

1542024FB0
ref: 3-2

STRAINER,FUEL PUMP

€ 55.00

4

1511135F00
ref: 4

CUSHION

€ 8.50

5-1

1511235F00
ref: 5-1

HOLDER,FUEL PUMP

€ 9.00

5-2

1511242F00
ref: 5-2

HOLDER,FUEL PUMP

€ 18.50

6

1511435F00
ref: 6

BUSH,FUEL PUMP

€ 17.00

7

1511335F00
ref: 7

O RING

€ 7.50

8

1511535F00
ref: 8

NUT

€ 10.50

9-1

1511635F00
ref: 9-1
15116-35F10

SCREW

€ 6.00

9-2

1511635F10
ref: 9-2

SCREW

€ 6.00

10

3481024FA0
ref: 10

GAUGE ASSY,FUEL LEVEL

€ 205.00

11

1517135F00
ref: 11

WASHER

€ 6.00

12

1517235F00
ref: 12

WASHER,SPRING

€ 4.00

13

1517335F00
ref: 13

NUT

€ 4.50

14-1

1518124FA0
ref: 14-1

BRACKET,FUEL GAUGE

€ 25.50

14-2

1518124FB0
ref: 14-2

BRACKET,FUEL GAUGE

€ 36.50

15

1518224FA0
ref: 15
15116-35F10

SCREW,FUEL GAU

€ 6.00

16

1520135F00
ref: 16

O RING,FUEL PUMP

€ 26.00

17

0712006123
ref: 17
07120-0612B

BOLT

€ 3.50

18

1581024FA0
ref: 18

HOSE,FUEL

€ 75.50
