FRAME COVER (GSX400LT)

GSX400L 1980 (T) GENERAL EXPORT (E01)

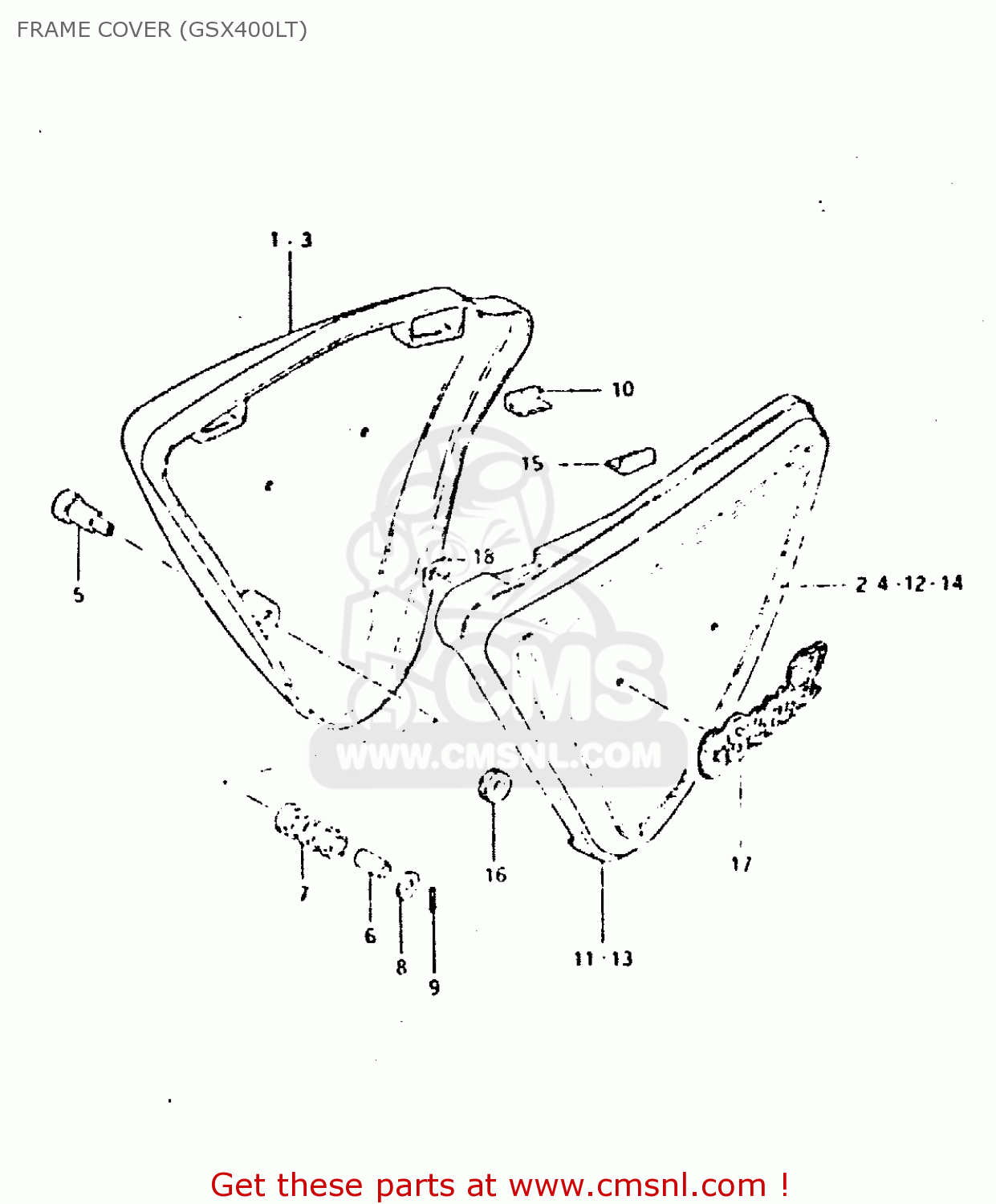

Frame cover (gsx400lt) diagram GSX400L 1980 (T) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

4711144210019
ref: 1

COVER,FRAME,RIGHT

€ 58.00

681304421066Y
ref: 2

TAPE SET,FRAME COVER

€ 13.50

471114421000J
ref: 3

COVER,FRAME,RIGHT

€ 52.00

681304421071P
ref: 4

TAPE SET,FRAME COVER,RIGHT

€ 17.00

4713044200
ref: 5

KNOB,FRAME COVER,R

€ 8.50

0918014009
ref: 6

SPACER(14.9X17.3X13.5)

€ 5.50

0944020009
ref: 7

SPRING

€ 2.50

0916006004
ref: 8

WASHER (6.5X24X1.6)

€ 1.50

0920502011
ref: 9

PIN,SPRING(2.5X18)

€ 1.50

4711745000
ref: 10

CUSHION,FRAME COVER

€ 1.50

4721144210019
ref: 11

COVER,FRAME,LEFT

€ 52.00

681404421066Y
ref: 12

TAPE SET,FRAME COVER

€ 15.00

472114421000J
ref: 13

COVER,FRAME,LEFT

€ 52.00

681404421071P
ref: 14

TAPE SET,FRAME COVER,LEFT

€ 16.00

4711745000
ref: 15

CUSHION,FRAME COVER

€ 1.50

0932008018
ref: 16

CUSHION

€ 4.00

6813144200
ref: 17

EMBLEM

€ 20.50

0914803002
ref: 18

NUT

€ 3.00
