COWLING (GSX550EFF)

GSX550EF 1985 (F) (E01 E02 E04 E06 E17 E18 E21 E22 E24 E25 E34)

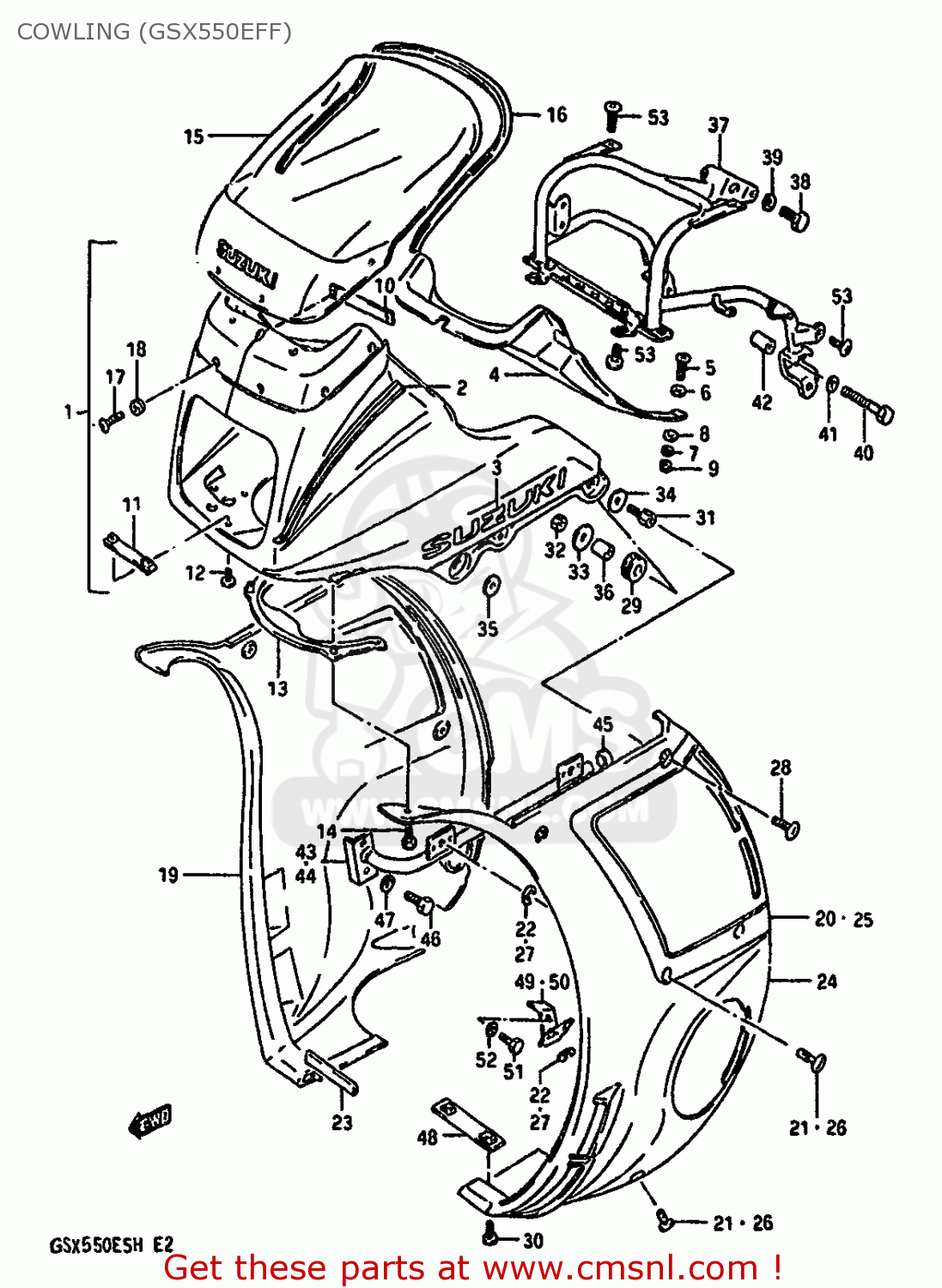

Cowling (gsx550eff) diagram GSX550EF 1985 (F) (E01 E02 E04 E06 E17 E18 E21 E22 E24 E25 E34)

COWLING (GSX550EFF) GSX550EF 1985 (F) (E01 E02 E04 E06 E17 E18 E21 E22 E24 E25 E34)
COWLING (GSX550EFF) GSX550EF 1985 (F) (E01 E02 E04 E06 E17 E18 E21 E22 E24 E25 E34)
COWLING (GSX550EFF) GSX550EF 1985 (F) (E01 E02 E04 E06 E17 E18 E21 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
94700434007JH
ref: 1-1
COWLING ASSY (WHITE/BLUE)
94700434007JH
€ 983.50
1-2
94700434007JJ
ref: 1-2
COWLING ASSY (WHITE/RED)
94700434007JJ
€ 909.50
2
6819043430019
ref: 2
TAPE SET
€ 0.00
3-1
681124340008K
ref: 3-1
FOR 7JH
EMBLEM
681124340008K
€ 7.50
3-2
681124340007G
ref: 3-2
FOR 7JJ
EMBLEM (ORANGE)
€ 9.50
4
9442243400
ref: 4
PANEL,COWLING,UPPER
€ 16.50
5
0214205165
ref: 5
SCREW
0214205165
€ 2.50
6
0832221055
ref: 6
WASHER,5MM
0832221055
€ 2.50
7
0832121055
ref: 7
WASHER,LOCK
0832121055
€ 3.00
8
0832221055
ref: 8
WASHER,5MM
0832221055
€ 2.50
9
0831012055
ref: 9
NUT ,5MM
0831012055
€ 2.50
10
9441643400
ref: 10
BRACKET,COWLING,UPPER
€ 3.50
11
9442043400
ref: 11
BRACKET,COWLING,LOWER
€ 2.50
12
0214205128
ref: 12
SCREW
0214205128
€ 1.50
13
9448043410
ref: 13
COVER,COWLING,LOWER
9448043410
€ 19.00
14
0214205165
ref: 14
SCREW
0214205165
€ 2.50
15-1
9461143421
ref: 15-1
WINDOW
9461143421
€ 281.50
15-2
9461143431
ref: 15-2
E17
WINDOW,COWLING
€ 281.50
16-1
9463143400
ref: 16-1
MOLDING,LOWER
9463143400
€ 18.00
16-2
9463143410
ref: 16-2
E17
MOULDING
€ 14.00
17
0214205165
ref: 17
SCREW
0214205165
€ 2.50
18
0932005008
ref: 18
CUSHION
0932005008
€ 5.00
19-1
94430434507JH
ref: 19-1
FOR 7JH
COVER,COWLING
94430434507JH
€ 148.00
19-2
94430434507JJ
ref: 19-2
FOR 7JJ
COVER,RH (WHITE/RED)
94430434507JJ
€ 148.00
20-1
68680434407JF
ref: 20-1
FOR 7JH
TAPE SET
€ 29.50
20-2
68680434407JG
ref: 20-2
FOR 7JJ
TAPE SET
€ 0.00
21
9449143400
ref: 21
FASTENER,COWL SIDE COVER
9449143400
€ 8.00
22
0833211075
ref: 22
E-RING
€ 2.00
23
9463143450
ref: 23
MOLDING,LOWER
€ 3.50
24-1
94440434507JH
ref: 24-1
FOR 7JH
COVER,LH (WHITE/BLUE)
94440434507JH
€ 175.50
24-2
94440434507JJ
ref: 24-2
FOR 7JJ
COVER,LH (WHITE/RED)
€ 175.50
25-1
68690434407JF
ref: 25-1
FOR 7JH
TAPE SET
€ 33.50
25-2
68690434407JG
ref: 25-2
FOR 7JJ
TAPE SET
€ 0.00
26
9449143400
ref: 26
FASTENER,COWL SIDE COVER
9449143400
€ 8.00
27
0833211075
ref: 27
E-RING
€ 2.00
28
9443943400
ref: 28
SCREW,COWLING SIDE COVER
9443943400
€ 3.50
29
0932008018
ref: 29
CUSHION
0932008018
€ 4.00
30
0214206127
ref: 30
SCREW 6X12
0214206127
€ 1.50
31
9447543400
ref: 31
BOSS,COWLING BODY,SIDE
9447543400
€ 8.50
32
0831011065
ref: 32
NUT
€ 2.00
33
0916006004
ref: 33
WASHER (6.5X24X1.6)
0916006004
€ 1.50
34
0916006081
ref: 34
WASHER, QUTER, REAR
€ 2.00
35
0916006028
ref: 35
WASHER(6.5X18X1)
0916006028
€ 1.50
36
0918006027
ref: 36
SPACER (6.3X9.1X6.7)
0918006027
€ 3.00
37
9451043400
ref: 37
BRACE,COWLING
9451043400
€ 112.50
38
0110708165
ref: 38
BOLT
€ 2.00
39
0832121084
ref: 39
WASHER,LOCK,8.
0832121084
€ 2.50
40
0110708455
ref: 40
BOLT
€ 2.50
41
0832121084
ref: 41
WASHER,LOCK,8.
0832121084
€ 2.50
42
0918008057
ref: 42
SPACER (8.2X12.5X23.5)
0918008057
€ 2.00
43
9452043400
ref: 43
BRACE,COWLING SIDE,RIGHT
9452043400
€ 33.50
44
9456043400
ref: 44
BRACE,COWLING SIDE,LEFT
9456043400
€ 33.50
45
0932912004
ref: 45
CUSHION
0932912004
€ 1.50
46
0110706125
ref: 46
BOLT
€ 2.00
47
0832121064
ref: 47
WASHER,LOCK
0832121064
€ 2.00
48
9457043400
ref: 48
BRACE,COWLING,LOWER,FRONT
9457043400
€ 3.50
49
9458043400
ref: 49
BRACKET,COWLING SIDE,RIGHT
9458043400
€ 7.00
50
9459043400
ref: 50
BRACKET,COWLING SIDE,LEFT
9459043400
€ 7.50
51
0110706125
ref: 51
BOLT
€ 2.00
52
0832121064
ref: 52
WASHER,LOCK
0832121064
€ 2.00
53
0214206125
ref: 53
SCREW 6X12
0214206125
€ 2.00
