WIRING HARNESS (MODEL T)

GSX600F 1988 (J) (E04 E18 E22 E34 E75 E77)

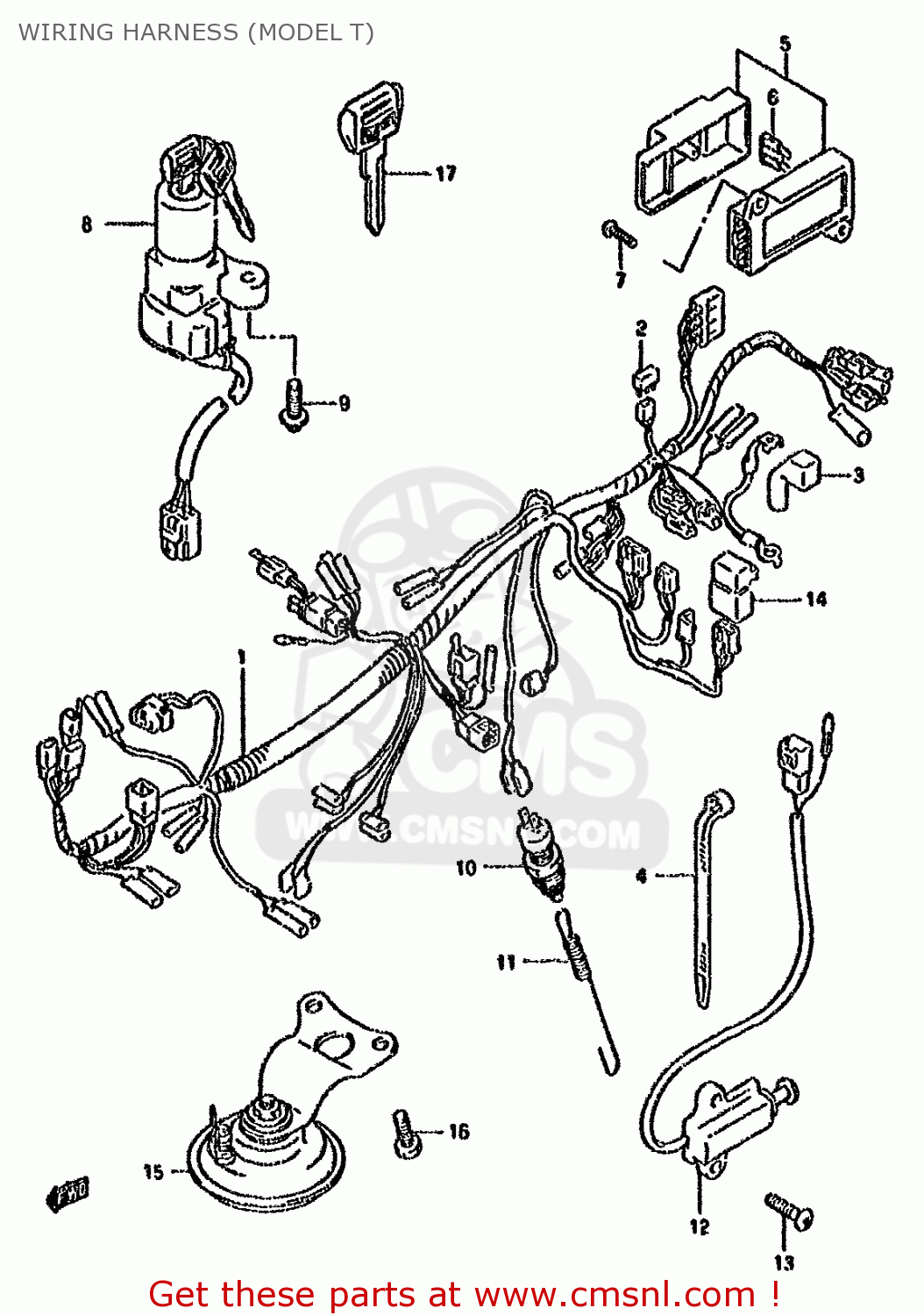

Wiring harness (model t) diagram GSX600F 1988 (J) (E04 E18 E22 E34 E75 E77)

WIRING HARNESS (MODEL T) GSX600F 1988 (J) (E04 E18 E22 E34 E75 E77)
WIRING HARNESS (MODEL T) GSX600F 1988 (J) (E04 E18 E22 E34 E75 E77)
WIRING HARNESS (MODEL T) GSX600F 1988 (J) (E04 E18 E22 E34 E75 E77)
prices are in EUR
ref
part #
description
quantity
1
3661019C60
ref: 1
HARNESS,WIRING
€ 395.50
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3362443500
ref: 3
CAP,BATTERY PLUS TERMINAL
3362443500
€ 3.50
4-1
0940710403
ref: 4-1
CLAMP(L:95)
€ 2.50
4-2
0940714403
ref: 4-2
CLAMP(L:125)
0940714403
€ 2.50
4-3
0940718403
ref: 4-3
CLAMP L:165
€ 2.50
5
3674019C00
ref: 5
BOX ASSY,FUSE
3674019C00
€ 88.00
6-1
0948110101
ref: 6-1
FUSE(10A)
0948110101
€ 2.50
6-2
0948125101
ref: 6-2
FUSE (25A)
0948125101
€ 2.50
7
0214206203
ref: 7
SCREW
0214206203
€ 2.00
8
3710026D02
ref: 8
LOCK ASSEMBLY,STEERING
3710026D02
€ 134.00
9
0913906026
ref: 9
SCREW(6X18)
0913906026
€ 2.50
10
3774024A00
ref: 10
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
11
0944306005
ref: 11
SPRING
0944306005
€ 6.00
12
3784044X50
ref: 12
SWITCH ASSY,SIDE STAND
3784044X50
€ 75.50
13
0155006203
ref: 13
BOLT
0155006203
€ 2.50
14
3874024X50
ref: 14
RELAY ASSY
3874024X50
€ 37.50
15
3850019C01
ref: 15
HORN ASSY
3850019C01
€ 54.00
16
0155006163
ref: 16
BOLT
0155006163
€ 2.50
17
3714626D10
ref: 17
OPT
KEY,BLANK
3714626D10
€ 41.50
10
3710017C00
ref: 10
MODEL J/K/L
LOCK ASSEMBLY,STEERING
€ 134.00
11
0913906026
ref: 11
MODEL J/K/L
SCREW(6X18)
0913906026
€ 2.50
12-1
3710017C01
ref: 12-1
MODEL M,-37100-26D02
LOCK ASSEMBLY,STEERING
€ 134.00
12-2
3710033D00
ref: 12-2
MODEL N/P
LOCK ASSEMBLY,STEERING
3710033D00
€ 134.00
12-3
3710026D02
ref: 12-3
MODEL R
LOCK ASSEMBLY,STEERING
3710026D02
€ 134.00
13
0913906026
ref: 13
MODEL M/N/P/R
SCREW(6X18)
0913906026
€ 2.50
14
3774024A00
ref: 14
SWITCH ASSY,STOP LAMP
3774024A00
€ 20.50
15
0944306005
ref: 15
SPRING
0944306005
€ 6.00
16-1
3784020A10
ref: 16-1
MODEL J/K
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
16-2
3784024X50
ref: 16-2
MODEL L/M/N/P/R-3784
SWITCH ASSEMBLY,SIDE STAND
€ 75.50
17-1
0211236205
ref: 17-1
MODEL J/K/L/M/N/P
SCREW
€ 2.00
17-2
0155006203
ref: 17-2
MODEL R
BOLT
0155006203
€ 2.50
18
3874024B10
ref: 18
RELAY ASSEMBLY
3874024B10
€ 37.50
19-1
3850019C00
ref: 19-1
MODEL J/K/L/M/N
HORN ASSEMBLY
€ 54.00
19-2
3850019C01
ref: 19-2
MODEL P/R
HORN ASSY
3850019C01
€ 54.00
20-1
0111706165
ref: 20-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
20-2
0155006163
ref: 20-2
MODEL R
BOLT
0155006163
€ 2.50
21
3685219C01
ref: 21
E34
WIRE, HORN RELAY
€ 0.00
22
3874024X50
ref: 22
E34,-38640-06B10
RELAY ASSY
3874024X50
€ 37.50
23
38620353A1
ref: 23
E34,-38621-22200
BRACKET,TURN SIGNAL RELAY
€ 6.00
24
0211236123
ref: 24
E34
BOLT
€ 2.00
25
3714626D10
ref: 25
OPT
KEY,BLANK
3714626D10
€ 41.50
