CLUTCH (MODEL N/P/R/S/T)

GSX600F 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

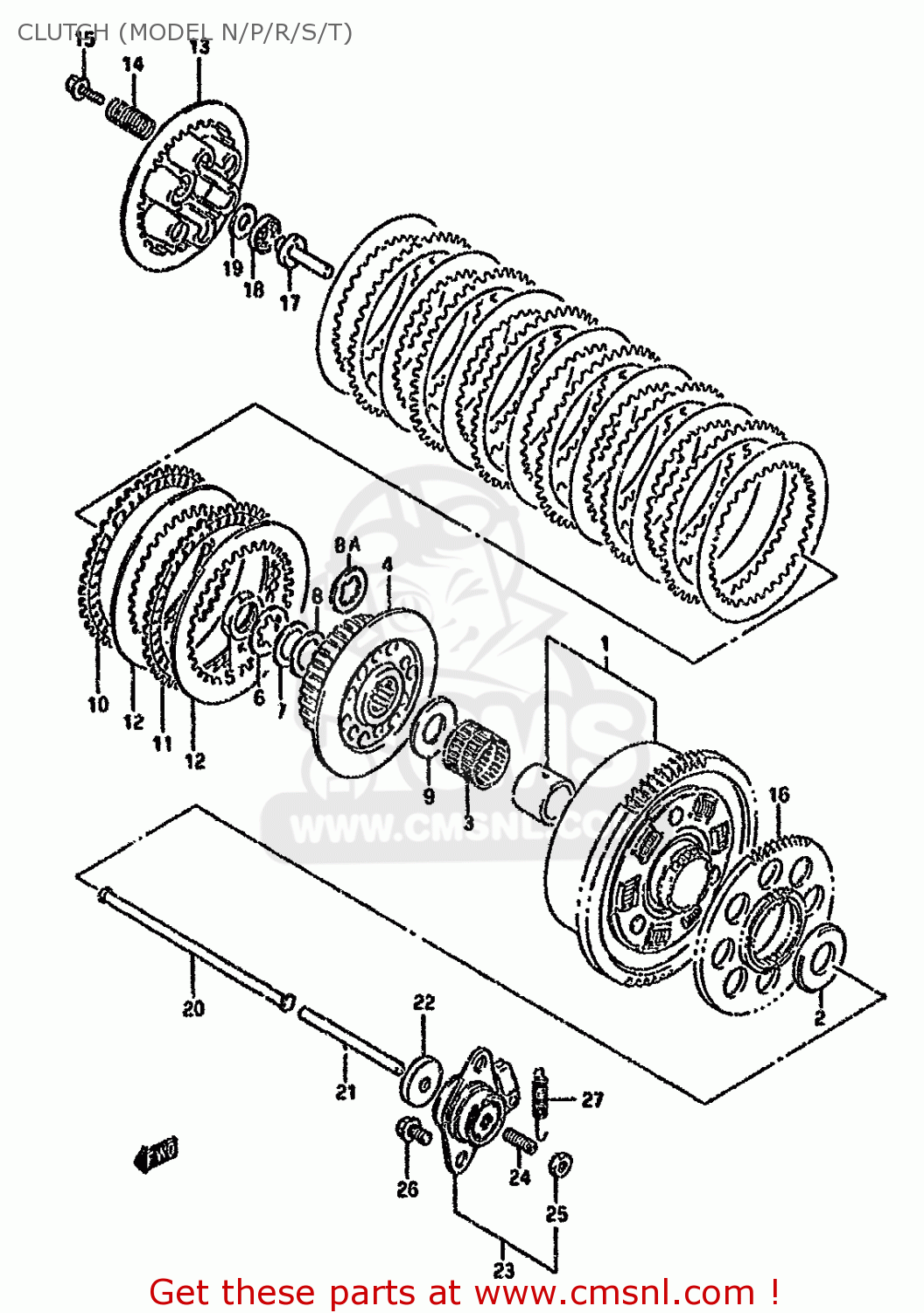

Clutch (model n/p/r/s/t) diagram GSX600F 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)

CLUTCH (MODEL N/P/R/S/T) GSX600F 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
CLUTCH (MODEL N/P/R/S/T) GSX600F 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
CLUTCH (MODEL N/P/R/S/T) GSX600F 1990 (L) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
prices are in EUR
ref
part #
description
quantity
1-1
2120007864
ref: 1-1
MODEL N
GEAR ASSEMBLY,PRIMARY DRIVE
2120007864
€ 235.50
1-2
2120007866
ref: 1-2
MODEL P/R/S/T
GEAR ASSEMBLY,PRIMARY DRIVE
2120007866
€ 235.50
2
0916025067
ref: 2
WASHER(25X54X2.5)
0916025067
€ 9.00
3
0926335017
ref: 3
BEARING(35X40X35.8)
0926335017
€ 36.50
4
2141017D01
ref: 4
HUB,CLUTCH SLEEVE
2141017D01
€ 101.50
5
0914024012
ref: 5
NUT
0914024012
€ 6.00
6
0916725007
ref: 6
WASHER,LOCK
0916725007
€ 7.50
7
0916424006
ref: 7
WASHER
0916424006
€ 4.00
8
0822125365
ref: 8
MODEL N
SHIM
0822125365
€ 4.50
8A
0916725024
ref: 8A
MODEL P/R/S/T
WASHER,LOCK
0916725024
€ 3.00
9
0916025056
ref: 9
WASHER(25X50X2.5)
0916025056
€ 9.50
10
2144120C00
ref: 10
PLATE,CLUTCH DRIVE (NAS)
2144120C00
€ 23.50
11
2144217C00
ref: 11
PLATE,CLUTCH DRIVE NO.2 (NAS)
2144217C00
€ 19.00
12
2145117C00
ref: 12
PLATE,CLUTCH DRIVEN (NAS)
2145117C00
€ 9.50
13
2146217E01
ref: 13
-21462-17D01
DISC,CLUTCH PRESSURE
2146217E01
€ 76.00
14
0944020020
ref: 14
SPRING
0944020020
€ 8.50
15
0911606150
ref: 15
BOLT(6X25)
0911606150
€ 2.50
16
2272117D01
ref: 16
-22721-17D00
GEAR,GENERATOR DRIVE,N
€ 140.00
17
2312107A00
ref: 17
PIECE,CLUTCH PUSH
2312107A00
€ 18.50
18
0926315003
ref: 18
BEARING(15X28X2)
0926315003
€ 7.00
19-1
0916015015
ref: 19-1
MODEL J/K/L/M/N/P
WASHER
€ 4.00
19-2
0916015045
ref: 19-2
MODEL R/S/T
WASHER(15.5X28X1)
0916015045
€ 4.00
20
2311020C00
ref: 20
ROD,CLUTCH PUSH,R
2311020C00
€ 23.00
21
2311131301
ref: 21
ROD,CLUTCH PUSH,L
2311131301
€ 14.50
22
0928506015
ref: 22
SEAL,OIL(6X34X5.5)
0928506015
€ 8.50
23
2320031300
ref: 23
SCREW ASSY,CLUTCH RELEASE
2320031300
€ 104.50
24
0913406010
ref: 24
SCREW(6X25)
0913406010
€ 3.00
25
0831000067
ref: 25
NUT
0831000067
€ 2.50
26-1
0151706167
ref: 26-1
MODEL J/K/L/M/N/P
BOLT 6X16
0151706167
€ 1.50
26-2
0155006163
ref: 26-2
MODEL R/S/T
BOLT
0155006163
€ 2.50
27
0944307038
ref: 27
SPRING
0944307038
€ 4.00
