REAR MASTER CYLINDER

GSX600F 1992 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E53)

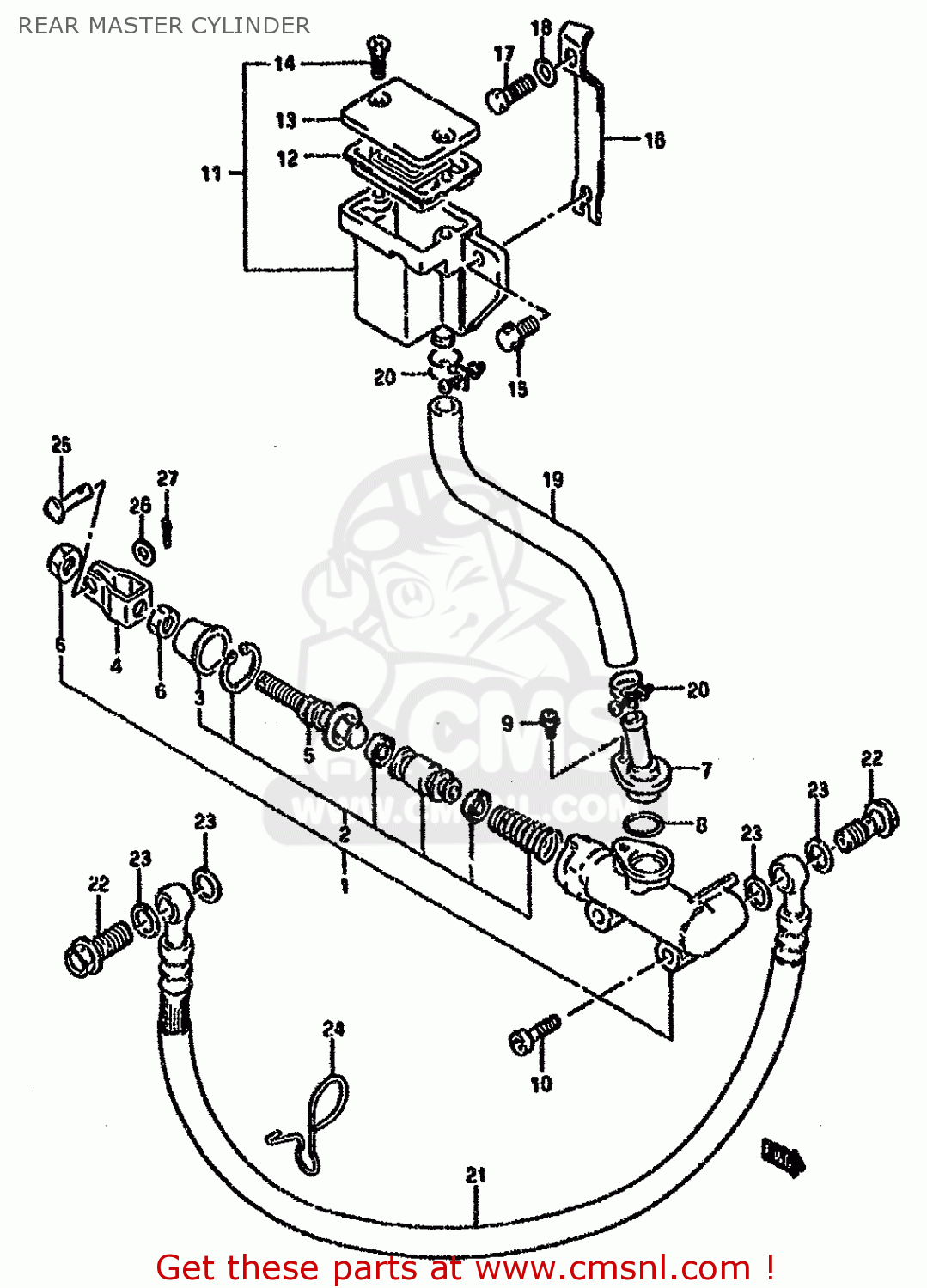

Rear master cylinder diagram GSX600F 1992 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E53)

REAR MASTER CYLINDER GSX600F 1992 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E53)
REAR MASTER CYLINDER GSX600F 1992 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E53)
REAR MASTER CYLINDER GSX600F 1992 (N) (E01 E02 E04 E17 E18 E21 E22 E24 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
6960019C00
ref: 1
CYLINDER ASSEMBLY,REAR MASTER
€ 140.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6969219A00
ref: 4
YOKE
6969219A00
€ 10.50
5
6967019C00
ref: 5
ROD,PUSH
€ 25.00
6-1
6969324A00
ref: 6-1
-69693-05A00
NUT
€ 1.50
6-2
6969305A00
ref: 6-2
NUT
6969305A00
€ 1.50
7
6967220A00
ref: 7
CONNECTOR
6967220A00
€ 7.00
8
6968634200
ref: 8
O RING
6968634200
€ 3.50
9
0211274123
ref: 9
SCREW
€ 2.50
10-1
0711006167
ref: 10-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
10-2
0713006163
ref: 10-2
MODEL R/S/T
BOLT,OIL FILLE
0713006163
€ 3.00
11-1
6974024A00
ref: 11-1
MODEL J/K/L/M/N
TANK ASSEMBLY,RESERVOIR
6974024A00
€ 99.50
11-2
6974024A01
ref: 11-2
MODEL P/R/S/T
TANK ASSY,RESERVOIR
6974024A01
€ 99.50
12
5966704700
ref: 12
DIAPHRAGM
5966704700
€ 8.00
13-1
6966924A00
ref: 13-1
MODEL J/K
CAP
€ 12.00
13-2
6966924A01
ref: 13-2
MODEL L/M/N
CAP
6966924A01
€ 12.00
13-3
5966905D00
ref: 13-3
MODEL P/R/S/T
CAP
5966905D00
€ 13.50
14
6968904A00
ref: 14
SCREW
6968904A00
€ 2.00
15-1
0151706167
ref: 15-1
MODEL J/K/L/M/N/P
BOLT 6X16
0151706167
€ 1.50
15-2
0155006123
ref: 15-2
MODEL R/S/T
BOLT
0155006123
€ 2.50
16
6975019C00
ref: 16
PLATE,RESERVOIR TANK
€ 4.50
17-1
0110706166
ref: 17-1
MODEL J/K/L
BOLT
€ 2.00
17-2
0113406166
ref: 17-2
MODEL M/N/P
BOLT
€ 2.50
17-3
0157006163
ref: 17-3
MODEL R/S/T
BOLT
0157006163
€ 2.50
18
0832121066
ref: 18
MODEL J/K/L
WASHER,LOCK
0832121066
€ 2.00
19
6973119C00
ref: 19
HOSE,RESERVOIR TANK
€ 12.50
20-1
0940016302
ref: 20-1
MODEL J/K/L/M/N/P/R/
CLAMP
0940016302
€ 4.50
20-2
0940113413
ref: 20-2
MODEL T
CLIP
€ 2.50
21-1
6948019C00
ref: 21-1
MODEL J/K
HOSE,REAR BRAKE
€ 67.50
21-2
6948019C10
ref: 21-2
MODEL L/M/N
HOSE COMP,REAR BRAKE
€ 67.50
21-3
6948019C20
ref: 21-3
MODEL P/R/S/T
HOSE,RR BRAKE
€ 67.50
22-1
0936010017
ref: 22-1
MODEL J/K/L/M/N/P
BOLT UNION
0936010017
€ 6.50
22-2
0936010039
ref: 22-2
MODEL R/S
BOLT UNION
€ 6.50
22-3
0936010041
ref: 22-3
MODEL T
BOLT UNION
€ 6.50
23
0916110009
ref: 23
WASHER(10X15X1.5)
0916110009
€ 2.00
24
6924319C00
ref: 24
GUIDE,BRAKE HOSE
€ 3.00
25
0920006037
ref: 25
PIN
0920006037
€ 5.00
26-1
0832221067
ref: 26-1
MODEL J/K/L/M/N/P
WASHER
0832221067
€ 2.00
26-2
0832201063
ref: 26-2
MODEL R/S/T
WASHER
0832201063
€ 2.00
27
0411120158
ref: 27
PIN
0411120158
€ 1.50
