FRONT MASTER CYLINDER (MODEL K/L/M/N/P/R/S/T)

GSX600F 1993 (P) (E01 E02 E21 E22 E25 E34 E53)

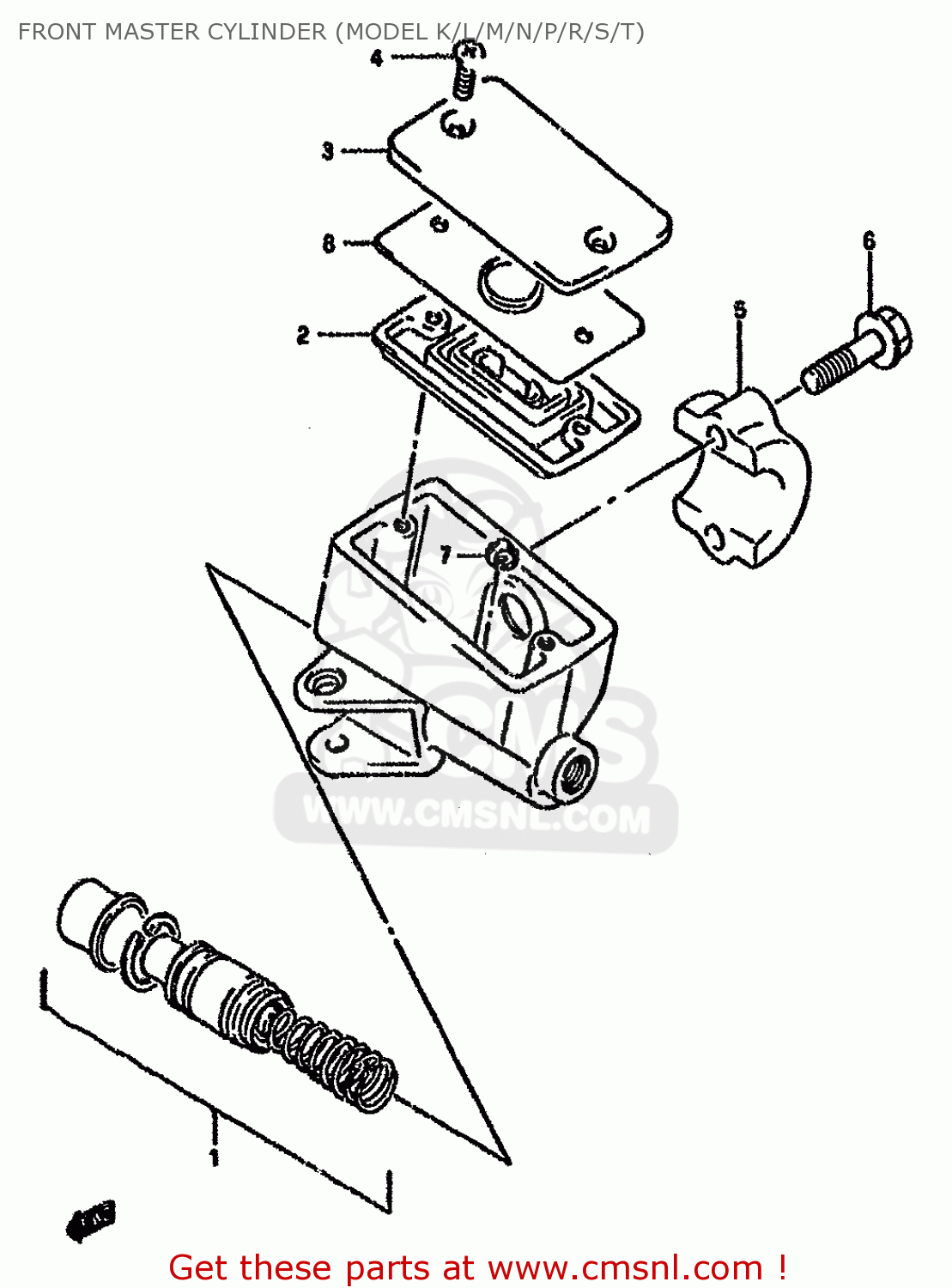

Front master cylinder (model k/l/m/n/p/r/s/t) diagram GSX600F 1993 (P) (E01 E02 E21 E22 E25 E34 E53)

prices are in EUR

ref

part #

description

quantity

5960020C00
ref: 0

CYLINDER ASSY,FR MASTER

€ 262.50

5960045860
ref: 1

PISTON & CUP SET

€ 44.00

5966749460
ref: 2

5966749460

3-1

5966934C00
ref: 3-1
-59669-41C00 W/59668

CAP

€ 30.00

3-2

5966941C00
ref: 3-2

CAP

€ 30.00

6968949300
ref: 4

SCREW

€ 1.50

5967119B00
ref: 5

HOLDER

€ 18.50

5967519C00
ref: 6

BOLT(6X25)

€ 3.00

5966448B00
ref: 7

PROTECTOR

€ 8.00

5966841C00
ref: 8

PLATE,DIAPHRAGM

€ 8.00
