CYLINDER

GSX600F 1999 (X)

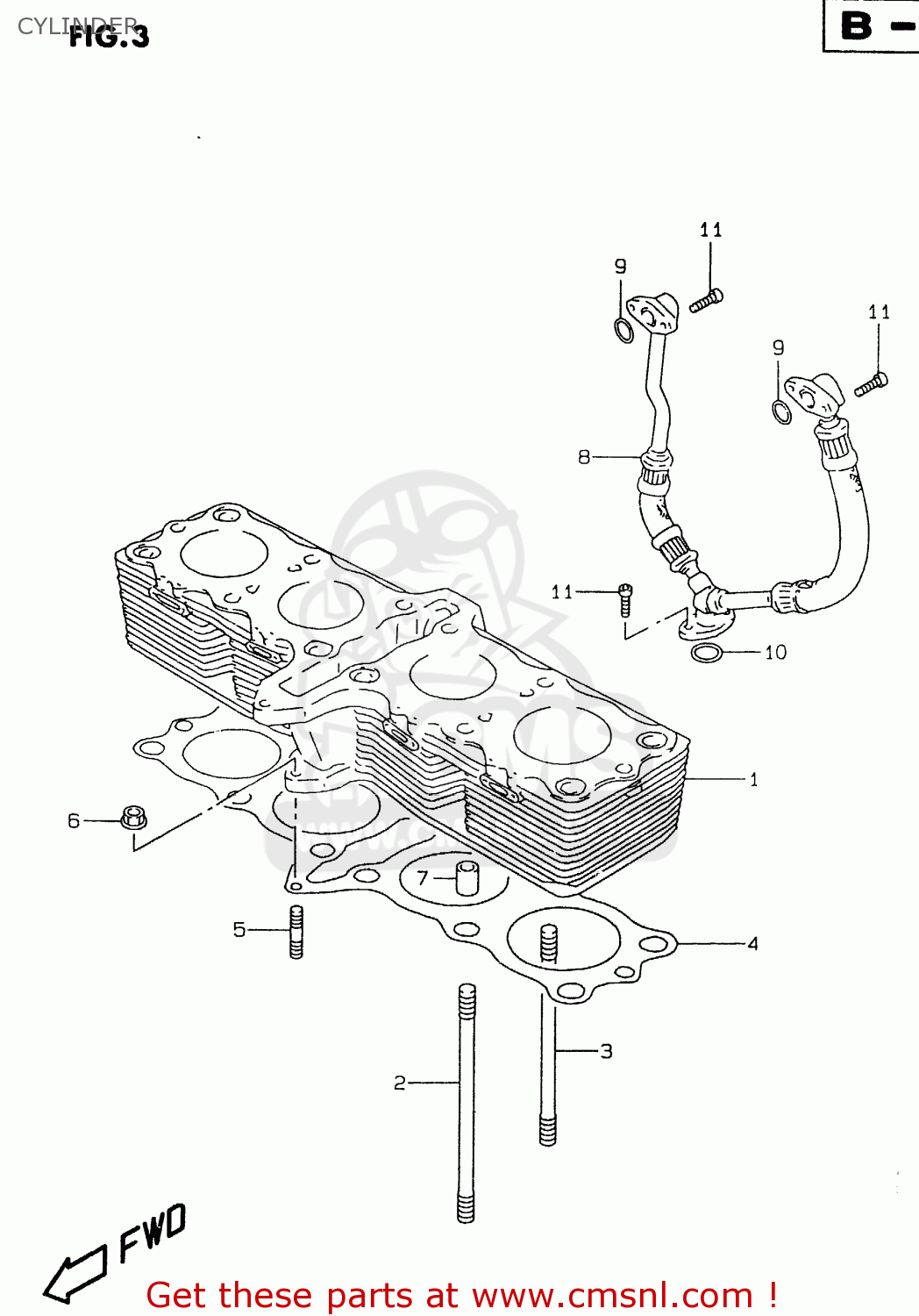

Cylinder diagram GSX600F 1999 (X)

CYLINDER GSX600F 1999 (X)

CYLINDER GSX600F 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

1121026E00
ref: 1

CYLINDER COMP

€ 791.00

2

0910810109
ref: 2

STUD BOLT (L:150)

€ 11.00

3

0910810073
ref: 3

BOLT,STUD

€ 9.50

4

1124127A04
ref: 4

GASKET,CYLINDER (NAS)

€ 20.00

5

0142106203
ref: 5

STUD,M6X1X32

€ 2.50

6

0831610063
ref: 6

NUT

€ 2.50

7

0920613017
ref: 7

PIN(13X10.4X20)

€ 9.00

8

1132827A04
ref: 8

HOSE,OIL HEAD COOLER

€ 241.00

9

0928014011
ref: 9

O RING(D:2.5,ID:13.8)

€ 3.50

10

0928015007
ref: 10

O RING(D:2.4,ID:15.8)

€ 2.00

11

0713006163
ref: 11

BOLT,OIL FILLE

€ 3.00
