AIR CLEANER (SEE NOTE 1)
GSX600FU 1988 (J) GERMANY (E22)

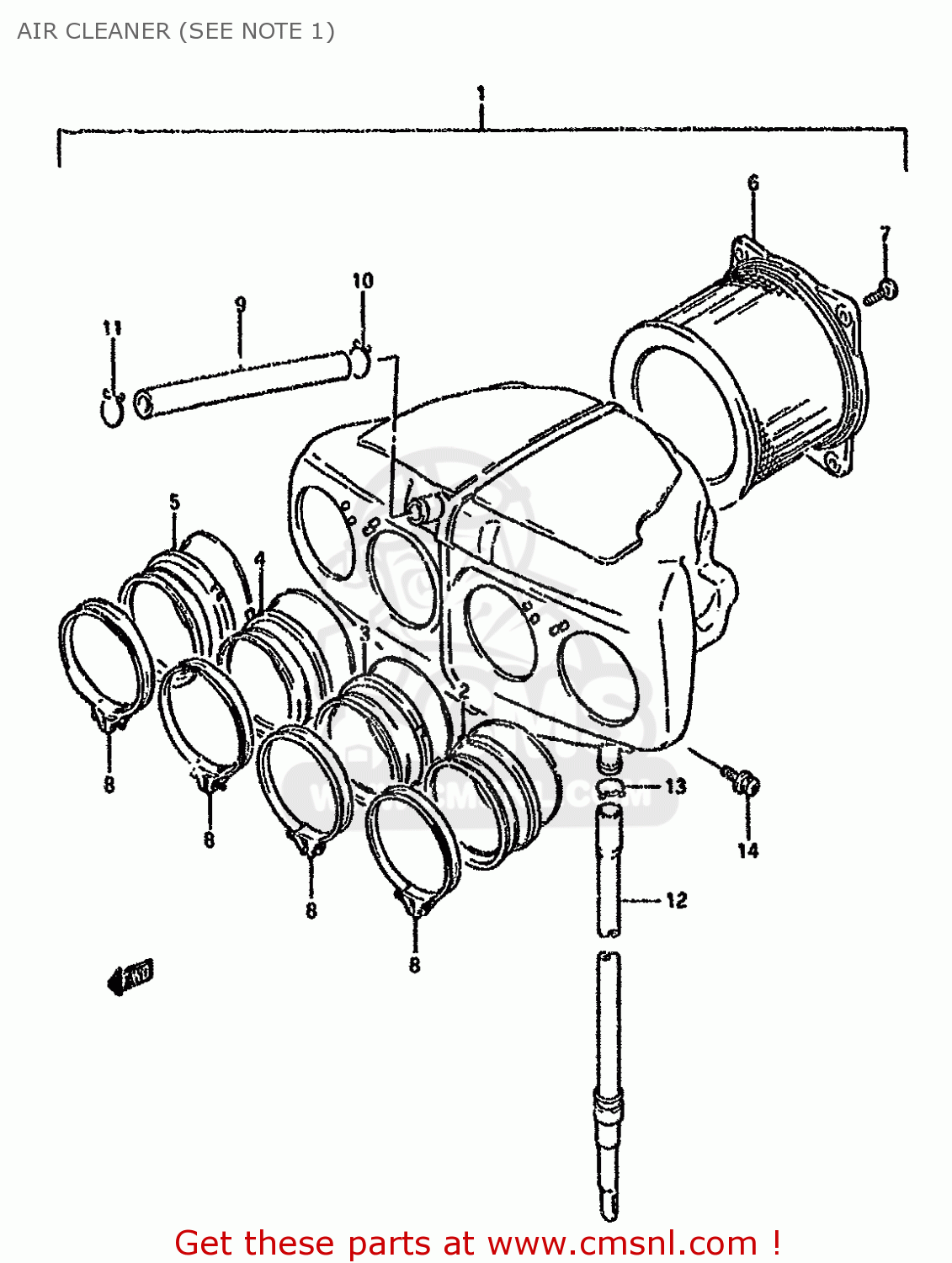

Air cleaner (see note 1) diagram GSX600FU 1988 (J) GERMANY (E22)
AIR CLEANER (SEE NOTE 1) GSX600FU 1988 (J) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370020C01
ref: 1-1
MODEL L/M/N/P SEE NO
CLEANER ASSEMBLY,AIR
€ 233.50
1-2
1370020C03
ref: 1-2
MODEL R/S
CLEANER ASSY,AIR
€ 233.50
1-3
1370020C23
ref: 1-3
MODEL T
CLEANER ASSY, AIR
€ 174.50
2
1388120C01
ref: 2
TUBE,OUTLET,L
€ 24.50
3
1388220C01
ref: 3
TUBE,OUTLET ML
€ 28.50
4
1388320C01
ref: 4
TUBE,OUTLET MR
€ 22.50
5
1388420C01
ref: 5
TUBE,OUTLET,R
€ 24.50
6
1378020C00
ref: 6
FILTER ASSY
€ 43.50
7
0214205123
ref: 7
SCREW 5X12
€ 1.50
8
0940266208
ref: 8
-13826-20C00
CLAMP
€ 6.50
9
1385319C00
ref: 9
TUBE,BREATHER
€ 14.00
10
0940116401
ref: 10
-13828-37300
CLIP
€ 3.00
11
0940114301
ref: 11
CLIP
€ 2.00
12
1387011458
ref: 12
-13870-11477
TUBE,DRAIN
€ 13.50
13
0940113409
ref: 13
-13824-00A00
CLIP
€ 2.50
14
0211276163
ref: 14
SCREW
€ 2.00
