REAR WHEEL (MODEL K/L/M/N/P/R/S/T)

GSX600FU 1991 (M) GERMANY (E22)

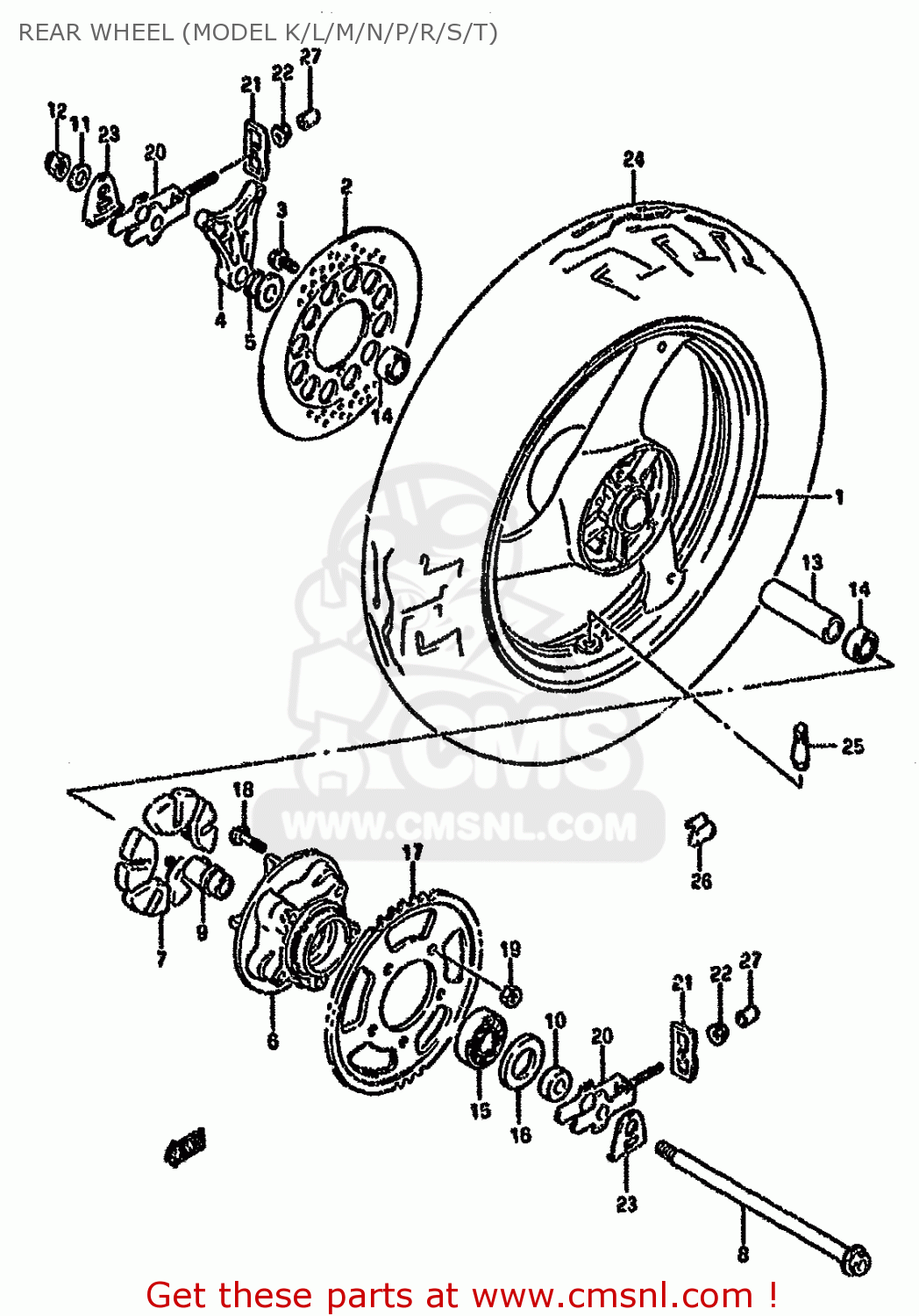

Rear wheel (model k/l/m/n/p/r/s/t) diagram GSX600FU 1991 (M) GERMANY (E22)

REAR WHEEL (MODEL K/L/M/N/P/R/S/T) GSX600FU 1991 (M) GERMANY (E22)
REAR WHEEL (MODEL K/L/M/N/P/R/S/T) GSX600FU 1991 (M) GERMANY (E22)
REAR WHEEL (MODEL K/L/M/N/P/R/S/T) GSX600FU 1991 (M) GERMANY (E22)
prices are in EUR
ref
part #
description
quantity
1-1
6411134C000FR
ref: 1-1
MODEL K FOR 24V,28V
WHEEL,REAR (MT3.50X17)(GOLD)
€ 733.50
1-2
6411134C0038L
ref: 1-2
MODEL K FOR 33J
WHEEL,REAR
€ 717.50
1-3
6411134C0012Z
ref: 1-3
MODEL L FOR 33J MODE
WHEEL,REAR (MT3.50X17)
€ 596.00
1-4
6411134C0028W
ref: 1-4
MODEL L FOR 28V MODE
WHEEL,RR(MT3.50X17)
€ 717.50
1-5
6411134C0035B
ref: 1-5
MODEL N FOR 12F,1MW
WHEEL,REAR (MT3.50X17)
€ 608.50
1-6
6411134C001DR
ref: 1-6
MODEL P FOR 36X MODE
WHEEL,REAR (MT3.50X17)
€ 608.50
1-7
6411134C001TU
ref: 1-7
MODEL R/T FOR 33J
WHEEL,REAR (MT3.50X17)
€ 575.50
1-8
6411134C0034R
ref: 1-8
MODEL S FOR 1ZV
WHEEL,REAR (MT3.50X17)
€ 608.50
1-9
6411134C00Y22
ref: 1-9
MODEL S FOR 33J
WHEEL,REAR (MT3.50X17)
€ 608.50
1-10
6411134C0012R
ref: 1-10
MODEL T FOR 1ZV
WHEEL,REAR (MT3.50X17)
€ 733.50
2-1
6921134C00
ref: 2-1
MODEL K/L/M/N
DISC,REAR BRAKE
€ 232.50
2-2
6921101D00
ref: 2-2
MODEL P/R/S/T
DISC,RR BRAKE
6921101D00
€ 232.50
3-1
0712008305
ref: 3-1
MODEL K/L/M/N/P
BOLT
€ 3.50
3-2
0910608131
ref: 3-2
MODEL R/S/T
BOLT(8X30)
0910608131
€ 3.50
4
6972143400
ref: 4
BRACKET,RR,CALIPER
€ 51.50
5
6474019C00
ref: 5
SPACER,RR AXLE,R
6474019C00
€ 19.00
6
6461117C01
ref: 6
DRUM,RR SPROCKET MOUNTING
6461117C01
€ 159.00
7
6465127A01
ref: 7
ABSORBER,RR HUB SHOCK
6465127A01
€ 6.00
8-1
6471119C10
ref: 8-1
-64711-19C00
AXLE, REAR
6471119C10
€ 48.50
8-2
6471119C00
ref: 8-2
AXLE,REAR
6471119C00
€ 48.50
9
6473334C00
ref: 9
RETAINER,RR SPROCKET DRUM
6473334C00
€ 27.50
10
6475134C00
ref: 10
SPACER,RR AXLE,L
6475134C00
€ 28.00
11
0916017013
ref: 11
WASHER (17X30X3.2)
0916017013
€ 2.00
12
0831921168
ref: 12
NUT 16MM
0831921168
€ 5.00
13
0918017067
ref: 13
SPACER(17.5X25X88)
0918017067
€ 13.50
14
0814363037
ref: 14
BEARING
0814363037
€ 23.00
15
0926225073
ref: 15
BEARING(25X62X17)
0926225073
€ 21.50
16
0928535001
ref: 16
SEAL,OIL(35X62X8)
0928535001
€ 9.00
17-1
6451120C00
ref: 17-1
MODEL K/L/M
SPROCKET,RR(NT:46-530)
6451120C00
€ 73.50
17-2
6451120C21
ref: 17-2
MODEL N/P/R/S/T
SPROCKET,RR(NT:45-530)
6451120C21
€ 95.50
18
0911910037
ref: 18
BOLT
0911910037
€ 6.00
19
0831931107
ref: 19
NUT
0831931107
€ 3.00
20-1
6141020C00
ref: 20-1
MODEL K/L/M/N
ADJUSTER,CHAIN
€ 22.00
20-2
6141020C02
ref: 20-2
MODEL P/R/S/T
ADJUSTER,CHAIN
6141020C02
€ 22.00
21-1
6142120C00
ref: 21-1
MODEL K/L/M/N
PLATE,CHAIN ADJUSTER GUIDE
6142120C00
€ 6.50
21-2
6142120C01
ref: 21-2
MODEL P/R/S/T
PLATE,CHAIN ADJUSTER GUIDE
6142120C01
€ 6.50
22-1
0831931085
ref: 22-1
MODEL K/L/M/N
NUT
€ 2.50
22-2
0831931087
ref: 22-2
MODEL P/R/S/T
NUT
0831931087
€ 2.50
23
6144520C01
ref: 23
WASHER,CHAIN ADJUSTER
6144520C01
€ 7.00
24-1
6511019C10
ref: 24-1
TIRE,RR(140/80-17 69V)
€ 334.00
24-2
6511019C20
ref: 24-2
MODEL S PURCHASE LOC
TIRE 140/80 VB17 V270
€ 334.00
25-1
4313075150
ref: 25-1
MODEL K/L/M-43130-78
VALVE,TIRE
€ 14.50
25-2
4313078030
ref: 25-2
VALVE,TIRE TR413 BS
4313078030
€ 14.50
25-3
4313024A00
ref: 25-3
MODEL M/N/P/R/S-4313
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
25-4
4313024A11
ref: 25-4
MODEL T
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
26-1
5541100A00
ref: 26-1
BALANCER,WHEEL (10G)
€ 6.50
26-2
5541200A01
ref: 26-2
BALANCER,WHEEL (20G)
€ 7.00
26-3
5541300A01
ref: 26-3
BALANCER,WHEEL
€ 4.00
27
6144233300
ref: 27
E22
CAP,CHAIN ADJUSTER
6144233300
€ 6.00
