GSX600FU 1993 (P) GERMANY (E22)

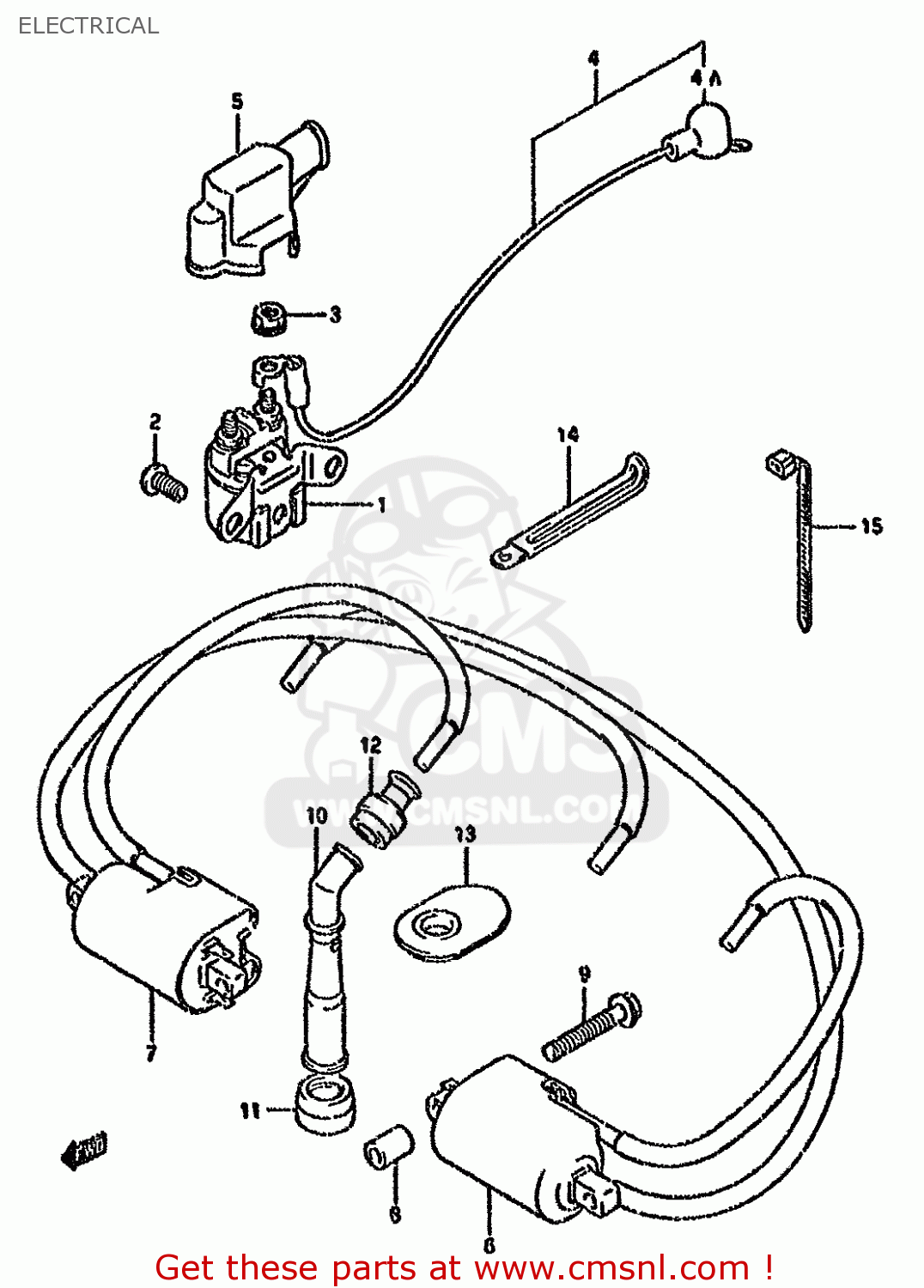

Electrical diagram GSX600FU 1993 (P) GERMANY (E22)
ELECTRICAL GSX600FU 1993 (P) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3180049100
ref: 1
RELAY ASSY,STARTING MOTOR
€ 89.00
2-1
0211206106
ref: 2-1
MODEL J/K/L/M/N/P
SCREW
€ 1.50
2-2
0211206103
ref: 2-2
MODEL R/S/T
SCREW
€ 1.50
3
0836135066
ref: 3
NUT
€ 2.00
4
3381041C00
ref: 4
-33850-19C00
WIRE,STARTER MOTOR LEAD
€ 29.00
4A
3186148B10
ref: 4A
CAP,STARTER MOTOR LEAD
€ 4.50
5-1
3186119C00
ref: 5-1
MODEL J/K/L/M/N/P
COVER,RELAY ASSEMBLY
€ 6.50
5-2
3186110D10
ref: 5-2
MODEL S/T
CAP,STARTER RELAY
€ 6.50
6
3341019C00
ref: 6
COIL ASSEMBLY,IGNITION NO
€ 147.00
7
3342019C00
ref: 7
COIL ASSEMBLY,IGNITION NO
€ 162.50
8
0918006198
ref: 8
SPACER(6.2X12X16)
€ 3.50
9-1
0151706456
ref: 9-1
MODEL J/K/L/M/N/P
SCREW
€ 2.50
9-2
0155006453
ref: 9-2
MODEL R/S/T
BOLT (6X45)
€ 2.50
10
3351048B10
ref: 10
CAP,SPARK PLUG
€ 29.50
11-1
3354127A22
ref: 11-1
MODEL J/K/L/M/N/P
SEAL,SPARK PLUG
€ 7.00
11-2
3354148B00
ref: 11-2
MODEL R/S/T
SEAL,SPARK PLUG
€ 7.00
12
3354238B00
ref: 12
SEAL,HIGH TENSION CORD
€ 4.50
13-1
3354327A21
ref: 13-1
MODEL J/K/L/M/N/P
COVER,SPARK PLUG CAP
€ 12.50
13-2
3354348B00
ref: 13-2
MODEL R/S/T
COVER,SPARK PLUG CAP
€ 12.50
14-1
0940406403
ref: 14-1
MODEL J/K/L/M/N/P
CLAMP
€ 2.50
14-2
0940406431
ref: 14-2
MODEL R/S/T
CLAMP(L:65)
€ 2.50
15
0940718402
ref: 15
CLAMP(L:165)
€ 2.50
