CRANKCASE
GSX600FU 1994 (R) GERMANY (E22)

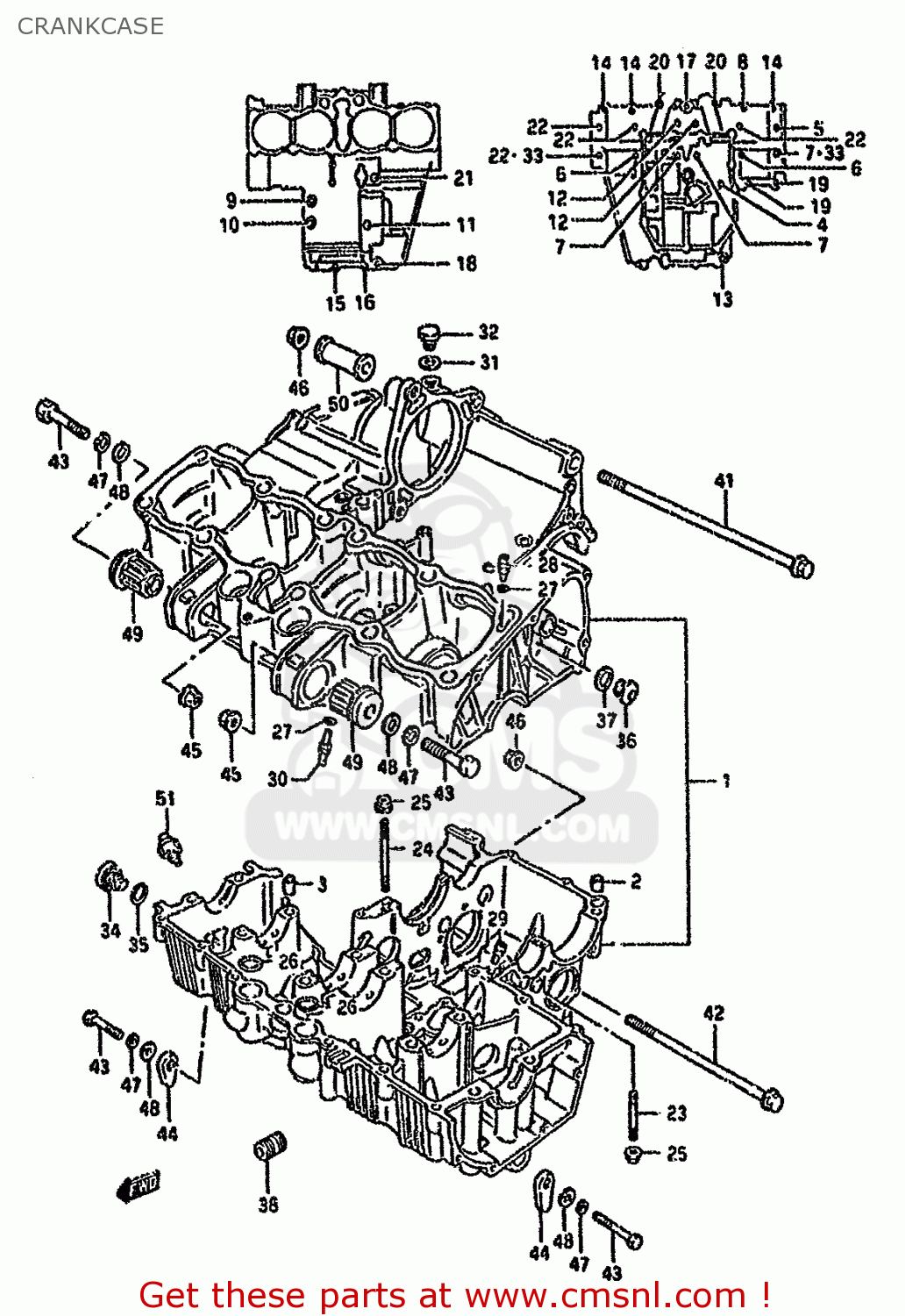

Crankcase diagram GSX600FU 1994 (R) GERMANY (E22)
CRANKCASE GSX600FU 1994 (R) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130019864
ref: 1-1
MODEL J-11300-19863
CRANKCASE SET
€ 1,555.00
1-2
1130043852
ref: 1-2
MODEL K/L/M/N/P-1130
CRANKCASE SET
€ 1,549.50
1-3
1130043853
ref: 1-3
MODEL R/S/T
CRANKCASE SET
€ 1,549.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3-1
0920611005
ref: 3-1
MODEL J/K/L/M/N/P/R/
PIN (11X20)(SUS)
€ 6.50
3-2
0920611017
ref: 3-2
MODEL T
PIN(8.4X11X20)
€ 6.50
4-1
0910306067
ref: 4-1
MODEL J/K/L/M/N/P
BOLT(6X105)
€ 3.50
4-2
0910306163
ref: 4-2
MODEL R/S/T
BOLT(6X105)
€ 4.00
5
0910308097
ref: 5
BOLT(8X105)
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
€ 3.00
8-1
0151706354
ref: 8-1
MODEL J/K/L/M/N/P
BOLT 6X35
€ 2.50
8-2
0155006353
ref: 8-2
MODEL R/S/T
BOLT
€ 2.50
9-1
0711006405
ref: 9-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
9-2
0713006403
ref: 9-2
MODEL R/S/T
BOLT
€ 3.50
10-1
0711006505
ref: 10-1
MODEL J/K/L/M/N/P
BOLT
€ 3.00
10-2
0713006503
ref: 10-2
MODEL R/S/T
BOLT,CL.COVER
€ 3.00
11-1
0711006655
ref: 11-1
MODEL J/K/L/M/N
BOLT
€ 4.00
11-2
0713006658
ref: 11-2
MODEL P
BOLT
€ 4.00
11-3
0713006653
ref: 11-3
MODEL R/S/T
BOLT
€ 4.00
12-1
0711008655
ref: 12-1
MODEL J/K/L/M/N/P
BOLT
€ 3.50
12-2
0713008653
ref: 12-2
MODEL R/S/T
BOLT
€ 3.50
13-1
0151708605
ref: 13-1
MODEL J/K/L/M/N/P
BOLT 8X60
€ 3.50
13-2
0155008603
ref: 13-2
MODEL R/S/T
BOLT
€ 3.50
14-1
0151706354
ref: 14-1
MODEL J/K/L/M/N/P
BOLT 6X35
€ 2.50
14-2
0155006353
ref: 14-2
MODEL R/S/T
BOLT
€ 2.50
15-1
0151706404
ref: 15-1
MODEL J/K/L/M/N/P
BOLT
€ 2.00
15-2
0155006403
ref: 15-2
MODEL R/S/T
BOLT
€ 2.00
16
0155006407
ref: 16
BOLT
€ 2.50
17-1
0151706505
ref: 17-1
MODEL J/K/L/M/N/P
BOLT 6X50
€ 2.00
17-2
0155006503
ref: 17-2
MODEL R/S/T
BOLT
€ 2.00
18-1
0151706605
ref: 18-1
MODEL J/K/L/M/N/P
BOLT ,6X60
€ 2.50
18-2
0155006603
ref: 18-2
MODEL R/S/T
BOLT
€ 2.50
19-1
0151706557
ref: 19-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
19-2
0155006553
ref: 19-2
MODEL R/S/T
BOLT, HYDRAULIC UNIT NO.2
€ 2.00
20-1
0151706705
ref: 20-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
20-2
0155006703
ref: 20-2
MODEL R/S/T
BOLT
€ 2.50
21-1
0151706805
ref: 21-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
21-2
0155006803
ref: 21-2
MODEL R/S/T
BOLT
€ 2.50
22
0910308105
ref: 22
BOLT(8X95)
€ 3.00
23
0142106408
ref: 23
STUD BOLT
€ 2.50
24
0142106608
ref: 24
STUD BOLT
€ 2.50
25-1
0915906017
ref: 25-1
MODEL J/K/L/M/N/P
NUT
€ 2.50
25-2
0831610063
ref: 25-2
MODEL R/S/T
NUT
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
€ 2.00
28
0949314002
ref: 28
JET,AIR
€ 8.00
29
0949324010
ref: 29
JET
€ 12.00
30
0949380008
ref: 30
JET,OIL GALLERY
€ 8.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
€ 3.50
33
0916808021
ref: 33
GASKET(8.5X17X2.3) (NAS)
€ 3.00
34
0924816003
ref: 34
PLUG
€ 16.50
35
0928017002
ref: 35
O RING(D:2.4,ID:16.8)
€ 3.50
36
0924814005
ref: 36
PLUG,14X12
€ 5.00
37
0916814002
ref: 37
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
38
1659106B00
ref: 38
UNION,OIL STAND
€ 6.00
39
1222819C00
ref: 39
SEE ILLUSTRATION ON
PLATE,CRANK THRUST
€ 9.50
40-1
1222843411
ref: 40-1
SEE ILLUSTRATION ON
PLATE,CRANK THRUST
€ 8.50
40-2
1222843412
ref: 40-2
PLATE,CRANK THRUST
€ 8.50
40-3
1222843413
ref: 40-3
PLATE,CRANK THRUST
€ 8.00
40-4
1222843414
ref: 40-4
PLATE,CRANK THRUST
€ 9.50
40-5
1222843415
ref: 40-5
BEARING,THRUST
€ 8.50
40-6
1222843416
ref: 40-6
PLATE,CRANK THRUST
€ 9.50
41
0910310151
ref: 41
BOLT(10X175)
€ 14.50
42-1
0910310237
ref: 42-1
MODEL J/K/L/M/N/P
BOLT(10X130)
€ 5.50
42-2
0910310122
ref: 42-2
MODEL R/S/T
BOLT(10X130)
€ 9.50
43-1
0110710555
ref: 43-1
MODEL J/K/L/M/N/P
BOLT 10X55
€ 3.50
43-2
0158010553
ref: 43-2
MODEL R/S/T
BOLT
€ 3.00
44
0915910020
ref: 44
NUT
€ 7.50
45-1
0831616105
ref: 45-1
MODEL J/K/L/M/N/P
NUT
€ 2.00
45-2
0831610103
ref: 45-2
MODEL R/S/T
NUT
€ 2.00
46-1
0915910044
ref: 46-1
MODEL J/K/L/M/N/P
NUT (10MM)
€ 4.00
46-2
0915910058
ref: 46-2
MODEL R/S/T
NUT
€ 4.00
47
0832121104
ref: 47
MODEL J/K/L/M/N/P
WASHER,LOCK
€ 3.00
48
0832221105
ref: 48
MODEL J/K/L/M/N/P
WASHER 10MM
€ 2.50
49
1168106B00
ref: 49
BUSH,ENGINE MOUNTING
€ 26.00
50-1
1161106B01
ref: 50-1
MODEL J/K
SPACER,ENGINE MOUNT
€ 10.00
50-2
1161020C00
ref: 50-2
MODEL L/M/N/P/R/S/T
SPACER,ENGINE MOUNT(L27)
€ 10.00
51
3782033D00
ref: 51
-37820-33200
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
