SEAT

GSX600FU 1999 (X)

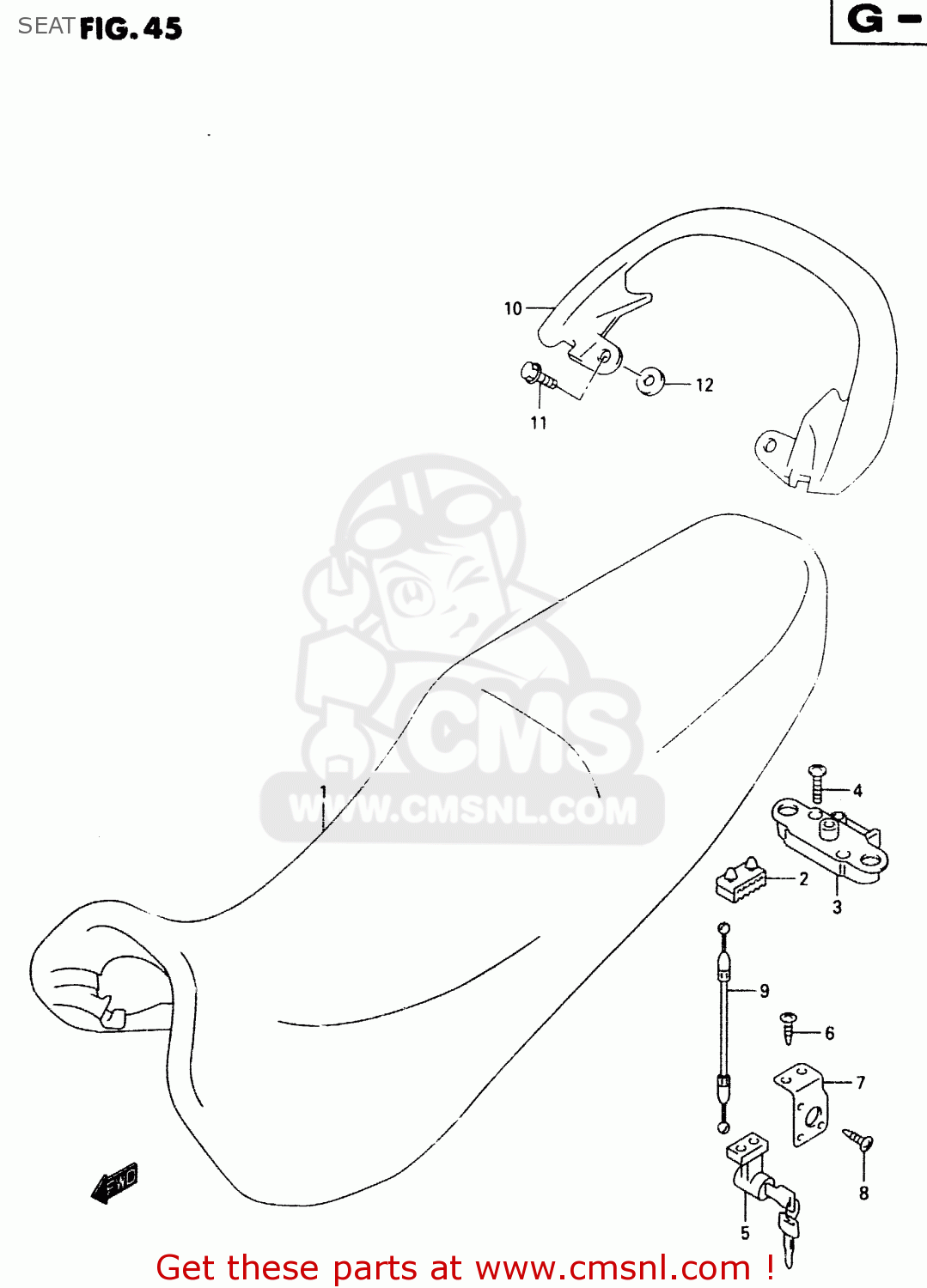

Seat diagram GSX600FU 1999 (X)

SEAT GSX600FU 1999 (X)

SEAT GSX600FU 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

4510008F00V09
ref: 1

SEAT ASSEMBLY

€ 363.50

2

4514931300
ref: 2

CUSHION,SEAT(40X20X15)

€ 2.00

3

4522020A01
ref: 3

BRACKET,SEAT SUPPORT,RIGHT

€ 79.50

4

0212206303
ref: 4

SCREW

€ 2.00

5

9570031840
ref: 5

LOCK SET,SEAT

€ 57.00

6

0154705103
ref: 6

BOLT

€ 2.50

7

4528903F00
ref: 7

BRACKET,SEAT LOCK

€ 6.00

8

0314114123
ref: 8

SCREW

€ 2.00

9

4528025D00
ref: 9

CABLE,SEAT LOCK

€ 11.00

10-1

4621103F1028V
ref: 10-1

HANDLE,PILLION RIDER

€ 144.00

10-2

4621103F10Y3G
ref: 10-2

HANDLE,PILLION

€ 130.00

10-3

4621103F10Y4E
ref: 10-3

HANDLE,PILLION RIDER

€ 172.00

11

0181008253
ref: 11

BOLT

€ 2.00

12

0932014006
ref: 12

CUSHION

€ 3.50
