FUEL COCK (MODEL T)
GSX600FU2 1989 (K) GERMANY (E22)

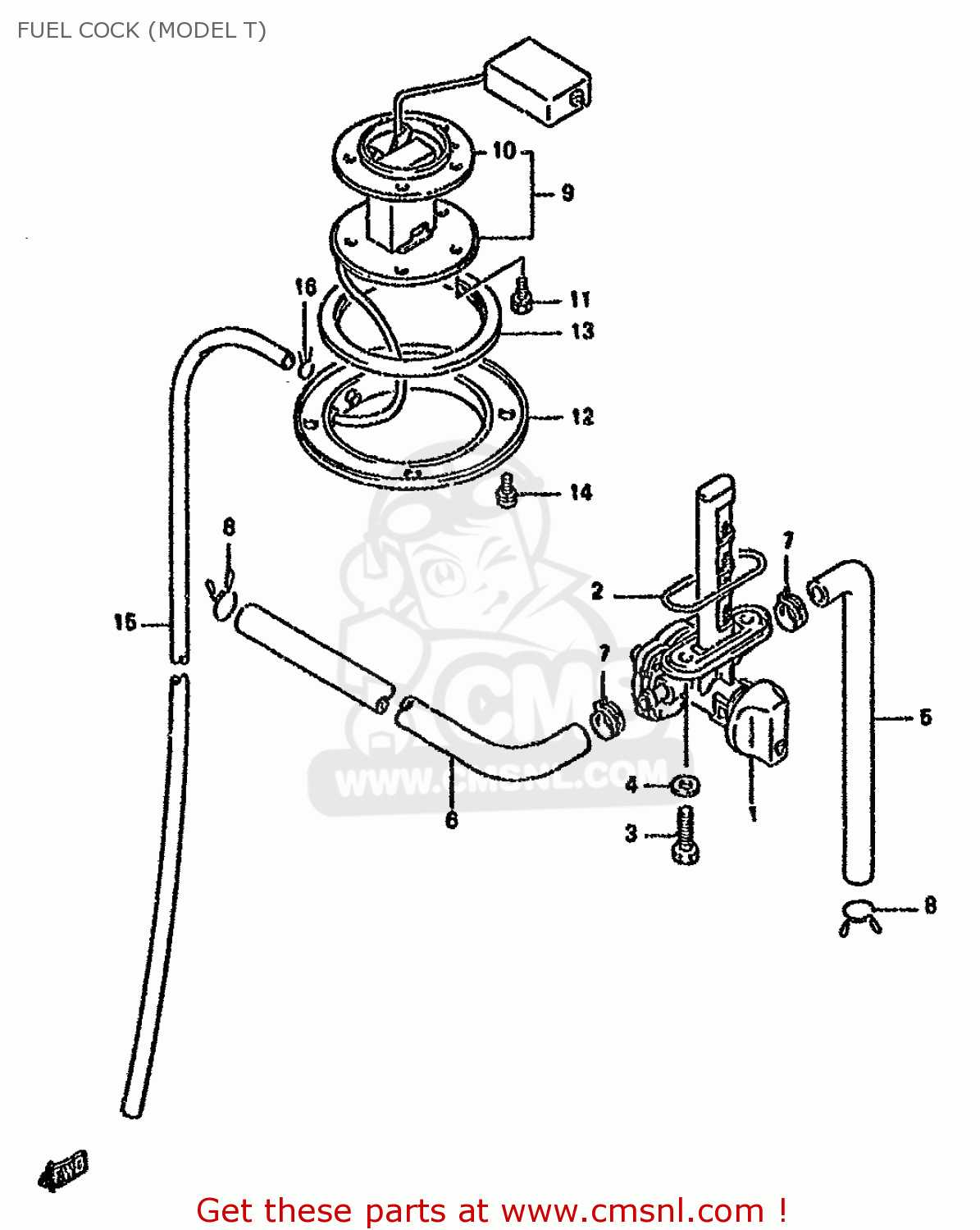

Fuel cock (model t) diagram GSX600FU2 1989 (K) GERMANY (E22)
FUEL COCK (MODEL T) GSX600FU2 1989 (K) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
4430020C00
ref: 1
COCK ASSY,FUEL
€ 128.00
2
4434849170
ref: 2
O RING
€ 3.50
3
0912806057
ref: 3
BOLT(6X20)
€ 2.00
4
0916806026
ref: 4
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
5
0934307502
ref: 5
HOSE (7X12X150)
€ 19.00
6
0934307503
ref: 6
HOSE (7X12X330)
€ 19.00
7
0940111407
ref: 7
CLIP
€ 2.50
8
0940112403
ref: 8
CLIP
€ 2.00
9
3481019C00
ref: 9
GAUGE ASSY,FUEL LEVEL SENDER
€ 88.00
10
3482549001
ref: 10
GASKET,FUEL LEVEL GAUGE (NAS)
€ 22.50
11
0157005103
ref: 11
BOLT
€ 2.00
12
3488540A00
ref: 12
PLATE,FUEL DRAIN
€ 21.00
13
3488840A00
ref: 13
GASKET,FUEL DRAIN PLATE (NAS)
€ 9.00
14
0157005083
ref: 14
BOLT
€ 2.00
15
093525082300B
ref: 15
HOSE(5X8.2X2000)
€ 13.00
16
0940108401
ref: 16
CLIP
€ 1.50
13-2
0157005083
ref: 13-2
MODEL S
BOLT
€ 2.00
14
093525082300B
ref: 14
HOSE(5X8.2X2000)
€ 13.00
15
0940108401
ref: 15
CLIP
€ 1.50
