STAND
GSX600FU2 1992 (N) GERMANY (E22)

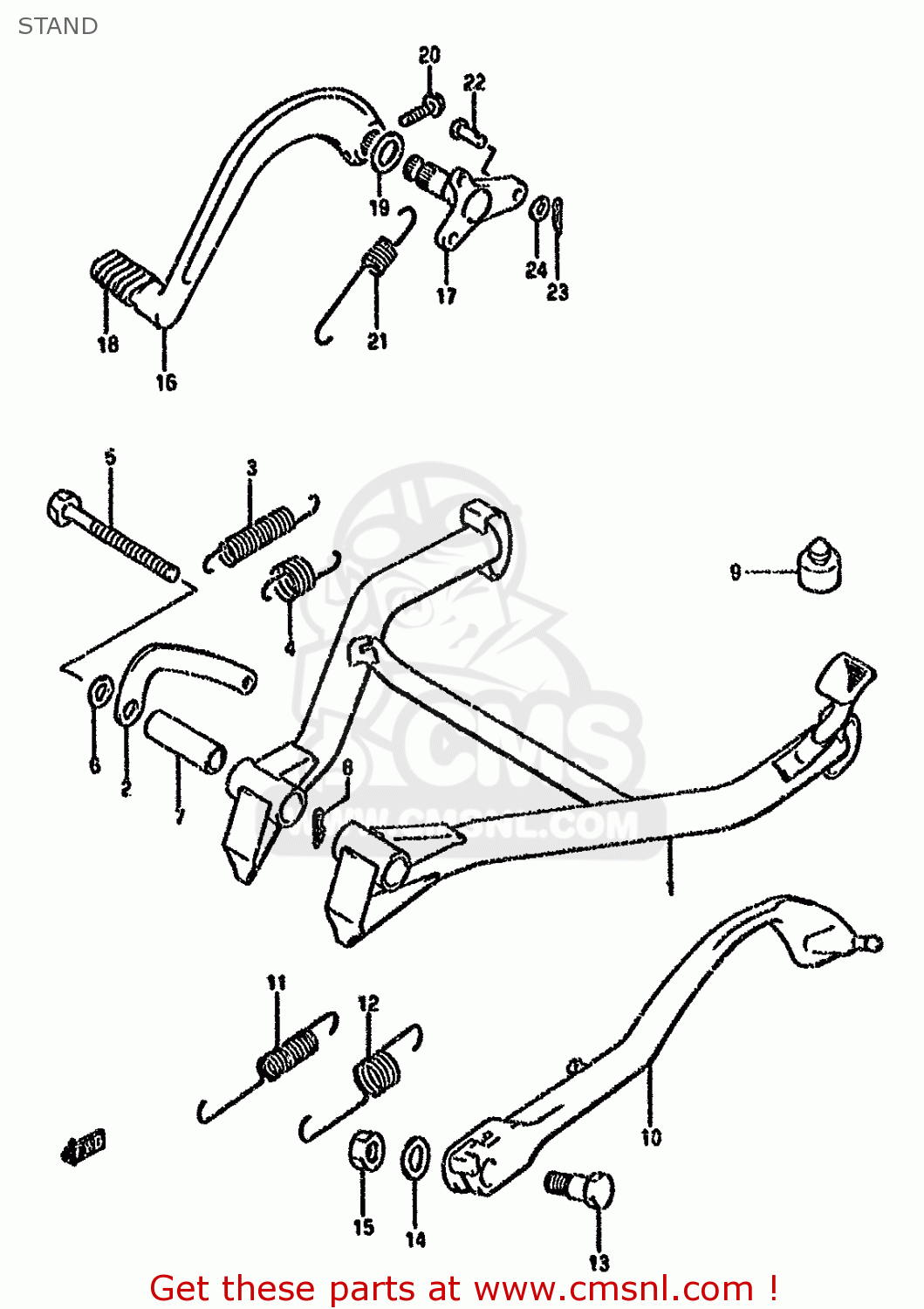

Stand diagram GSX600FU2 1992 (N) GERMANY (E22)
STAND GSX600FU2 1992 (N) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
4210019840
ref: 1-1
MODEL J/K
STAND,CENTER
€ 190.50
1-2
4210019841
ref: 1-2
MODEL L/M
STAND,CENTER
€ 190.50
1-3
4210019842
ref: 1-3
MODEL N/P
STAND,CENTER
€ 190.50
1-4
4210019843
ref: 1-4
MODEL R/S/T
STAND SET,CENTER
€ 190.50
2
4225119C00
ref: 2
HOOK,CTR STAND SPRING
€ 5.50
3
0944315039
ref: 3
SPRING
€ 7.50
4
0944322009
ref: 4
SPRING
€ 18.00
5-1
0910110035
ref: 5-1
MODEL J/K
BOLT 10X63
€ 6.50
5-2
0911710029
ref: 5-2
MODEL L/M/N/P
BOLT(10X63)
€ 6.50
5-3
0158010603
ref: 5-3
MODEL R/S/T
BOLT
€ 3.50
6
0832101107
ref: 6
MODEL J/K
WASHER,LOCK
€ 2.00
7
0918010040
ref: 7
SPACER(10X16X38.8)
€ 3.00
8-1
0938510001
ref: 8-1
MODEL J/K/L/M/N
CLIP
€ 1.50
8-2
0938510005
ref: 8-2
MODEL P
CLIP
€ 1.50
9
0932110017
ref: 9
CUSHION
€ 5.50
10-1
4231019C00
ref: 10-1
MODEL J/K
STAND,SIDE
€ 68.00
10-2
4231019C01
ref: 10-2
MODEL L/M/N/P/R/S/T
STAND,PROP
€ 68.00
11
0944312036
ref: 11
SPRING
€ 7.50
12
0944319010
ref: 12
SPRING
€ 6.00
13
0911110036
ref: 13
BOLT(10X38)
€ 5.50
14
0822112224
ref: 14
SHIM
€ 2.00
15-1
0831022105
ref: 15-1
MODEL J/K/L/M/N/P
NUT
€ 2.00
15-2
0914010043
ref: 15-2
MODEL R/S
NUT
€ 2.00
15-3
0915910097
ref: 15-3
MODEL T
NUT
€ 5.00
16-1
4311019C00
ref: 16-1
MODEL J/K/L/M/N/P/R
PEDAL,BRAKE
€ 115.00
16-2
4311019C01
ref: 16-2
MODEL S/T
PEDAL,BRAKE
€ 115.00
17
4312019C00
ref: 17
BOSS,BRAKE ROD
€ 30.00
18
4315104701
ref: 18
RUBBER,BRAKE PEDAL
€ 6.00
19
4321204A00
ref: 19
WASHER,BRAKE PEDAL
€ 2.00
20-1
0154706257
ref: 20-1
MODEL J/K/L/M/N/P
BOLT
€ 2.50
20-2
0154706253
ref: 20-2
MODEL R/S/T
SCREW
€ 2.50
21
0944313028
ref: 21
SPRING
€ 20.50
22
0920006037
ref: 22
PIN
€ 5.00
23
0411120158
ref: 23
PIN
€ 1.50
24
0832201067
ref: 24
WASHER
€ 2.00
