GEAR SHIFTING
GSX600FU2 1995 (S) GERMANY (E22)

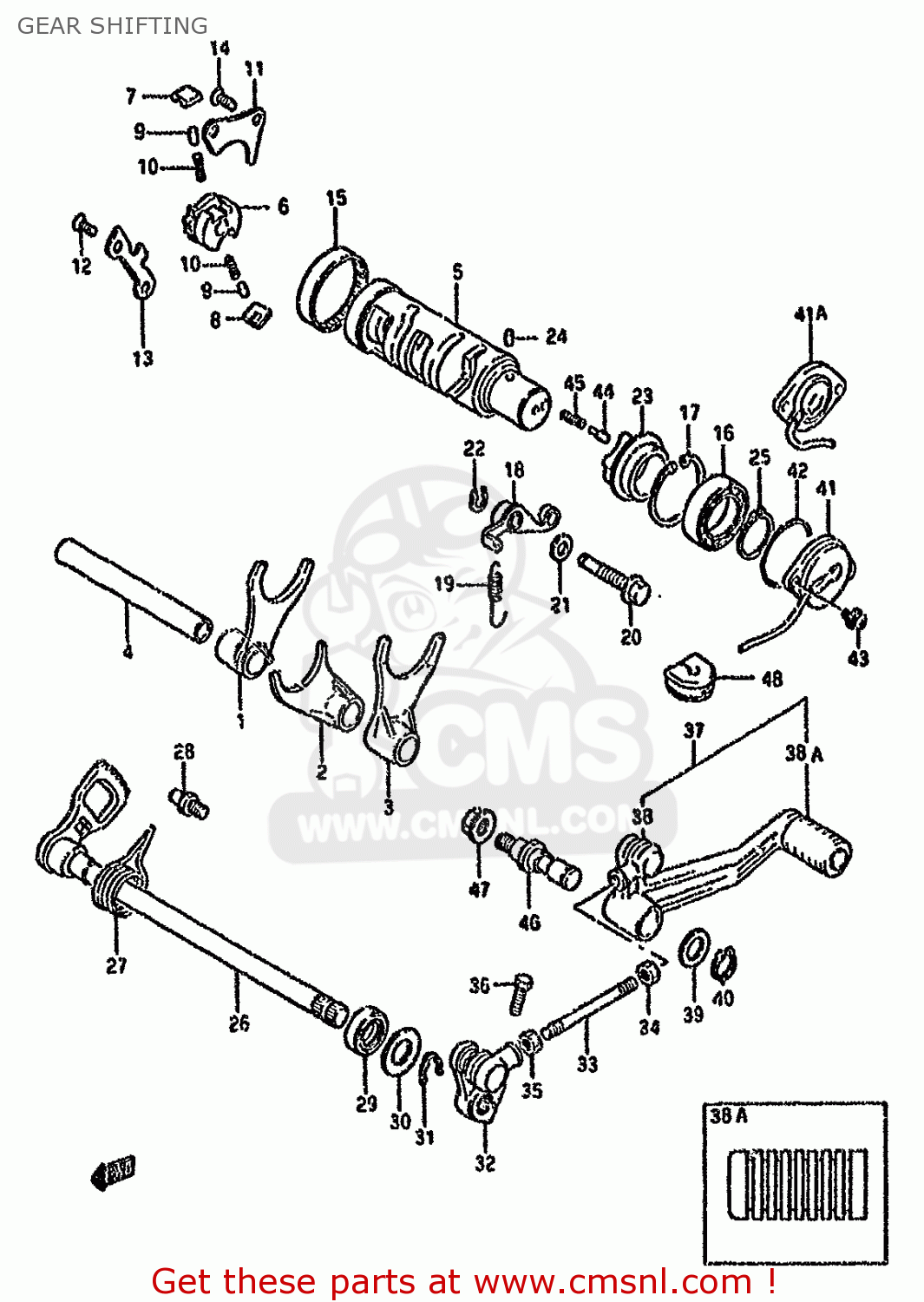

Gear shifting diagram GSX600FU2 1995 (S) GERMANY (E22)
GEAR SHIFTING GSX600FU2 1995 (S) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
2521127A00
ref: 1
FORK,GEAR SHIFT NO.1
€ 102.50
2
2522127A01
ref: 2
FORK,GEAR SHIFT NO.2
€ 83.50
3
2523127A00
ref: 3
FORK,GEAR SHIFT NO.3
€ 84.00
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
€ 23.50
5
2531027A02
ref: 5
CAM,GEAR SHIFT
€ 196.50
6
2532231301
ref: 6
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
€ 1.50
10
0944004003
ref: 10
SPRING
€ 1.50
11
2533131301
ref: 11
LIFTER,GEAR SHIFT PAWL
€ 7.00
12-1
0212206128
ref: 12-1
MODEL J/K/L/M/N/P/R
SCREW
€ 3.00
12-2
0212206123
ref: 12-2
MODEL S/T
SCREW
€ 3.00
13
2534127A00
ref: 13
GUIDE,GEAR SHIFT CAM
€ 8.50
14-1
0212206128
ref: 14-1
MODEL J/K/L/M/N/P/R
SCREW
€ 3.00
14-2
0212206123
ref: 14-2
MODEL S/T
SCREW
€ 3.00
15
0926343001
ref: 15
BEARING(43X49X12)
€ 30.00
16
0811369050
ref: 16
BEARING
€ 36.00
17
0833141426
ref: 17
CIRCLIP
€ 1.50
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
€ 13.00
19
0944309031
ref: 19
SPRING
€ 4.00
20
2535327A00
ref: 20
SHAFT,GEAR SHIFT CAM STOPPER
€ 5.50
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
€ 2.00
22
0833131086
ref: 22
CIRCLIP
€ 2.00
23
2538138400
ref: 23
PLATE,STOPPER
€ 22.00
24
0422104069
ref: 24
PIN
€ 2.00
25
0833131256
ref: 25
CIRCLIP
€ 2.00
26-1
2551019C00
ref: 26-1
MODEL J/K/L/M/N/P/R/
SHAFT,GEAR SHIFT
€ 91.50
26-2
2551019C01
ref: 26-2
MODEL T
SHAFT,GEAR SHIFT
€ 91.50
27
0944426017
ref: 27
SPRING
€ 5.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
OIL SEAL
€ 7.00
30
0916012020
ref: 30
WASHER (12.5X27X1.6)
€ 2.00
31
0833131126
ref: 31
-09384-12001
CIRCLIP,12 MM
€ 2.00
32
2552019C02
ref: 32
ARM,GEAR SHIFT LINK
€ 53.50
33-1
2552527A10
ref: 33-1
MODEL J/K/L/M/N/P/R
ROD,GEAR SHIFT LINK
€ 6.00
33-2
2552527A20
ref: 33-2
MODEL S
ROD,GEAR SHIFT LINK
€ 6.00
33-3
2552527A30
ref: 33-3
MODEL T
ROD,GEAR SHIFT LINK
€ 6.00
34
0914006011
ref: 34
NUT
€ 1.50
35-1
0831011067
ref: 35-1
MODEL J/K/L/M/N/P
NUT 6MM
€ 2.50
35-2
0831000067
ref: 35-2
MODEL R/S/T
NUT
€ 2.50
36-1
0110706257
ref: 36-1
MODEL J/K/L/M/N/P
BOLT
€ 2.00
36-2
0150006257
ref: 36-2
MODEL R/S/T
BOLT
€ 2.00
37
2560019C04
ref: 37
-25600-19C03
LEVER ASSY,GEAR SHIFT
€ 81.00
38
2552647000
ref: 38
COVER,DUST
€ 3.50
38A
2565220C00
ref: 38A
RUBBER,GEAR SHIFT PEDAL
€ 8.00
39
0916012011
ref: 39
WASHER(12.5X20X1)
€ 1.50
40
0833131126
ref: 40
CIRCLIP,12 MM
€ 2.00
41
3772048B00
ref: 41
MODEL J/K/L/M/N/P/R/
TERMINAL BASE ASSY,NEUTRAL
€ 57.00
41A
3772020C00
ref: 41A
MODEL T
BASE ASSY,GEAR SHIFT TERMINAL
€ 88.50
42-1
0928036001
ref: 42-1
MODEL J/K/L/M/N/P
O RING(D:2.4,ID:36.5)
€ 4.50
42-2
0928035006
ref: 42-2
MODEL R/S/T
O RING(D:2.4,ID:35.5)
€ 4.00
43-1
0913805003
ref: 43-1
MODEL J/K/L/M/N/P
SCREW
€ 1.50
43-2
0211275163
ref: 43-2
MODEL R/S/T
SCREW
€ 2.50
44
0920905011
ref: 44
PIN(5X15.5)
€ 2.00
45
0944004010
ref: 45
SPRING
€ 1.50
46
2561720A00
ref: 46
SHAFT,GEAR SHIFT LEVER
€ 37.00
47-1
0831616108
ref: 47-1
MODEL J/K/L/M/N/P
NUT
€ 2.00
47-2
0831610103
ref: 47-2
MODEL R/S/T
NUT
€ 2.00
48
3388527A01
ref: 48
GROMMET,LEADWIRE
€ 20.50
