REAR SWINGING ARM
GSX600FU2 1996 (T) GERMANY (E22)

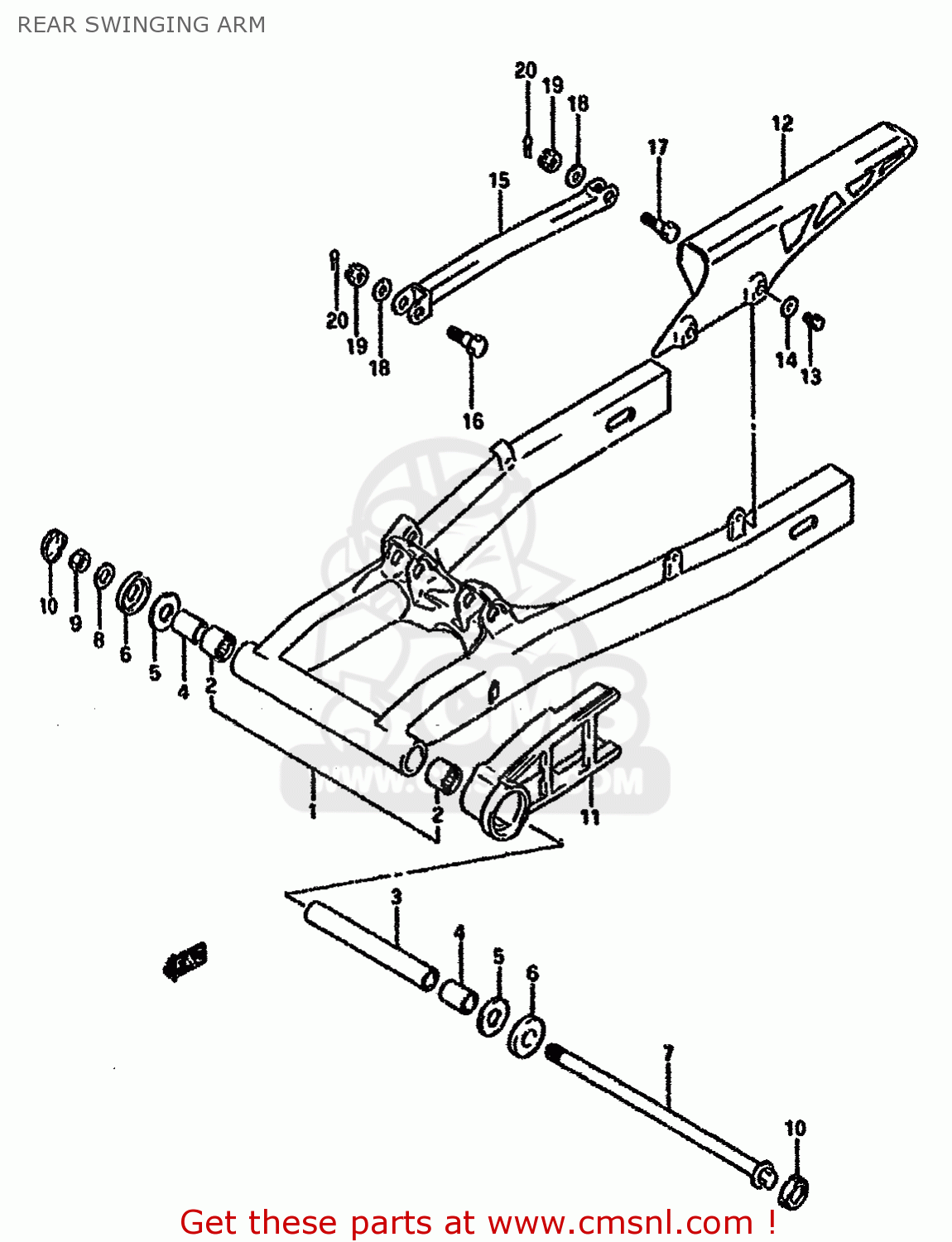

Rear swinging arm diagram GSX600FU2 1996 (T) GERMANY (E22)
REAR SWINGING ARM GSX600FU2 1996 (T) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100019C0113L
ref: 1-1
MODEL J
SWING ARM ASSEMBLY,REAR
€ 469.00
1-2
6100019C1013L
ref: 1-2
MODEL K/L/M/N/P/R/S/
SWINGINGARM ASSY,RR
€ 456.50
2
0926322017
ref: 2
BEARING(22X29X30)
€ 18.50
3
6128219C00
ref: 3
SPACER,RR SWGARM PIVOT CTR
€ 16.50
4
6125145001
ref: 4
SPACER,RR SWGARM PIVOT
€ 12.50
5
0821114341
ref: 5
WASHER
€ 3.00
6
6126245002
ref: 6
CVR,RR SWGARM DUST SEAL(OD:40)
€ 4.50
7
6121119C00
ref: 7
SHAFT,REAR SWING ARM PIVOT
€ 19.50
8
0916014015
ref: 8
WASHER(14X27X3)
€ 4.00
9-1
0915914013
ref: 9-1
MODEL J/K/L/M/N/P
NUT
€ 8.50
9-2
0915914019
ref: 9-2
MODEL R/S/T
NUT
€ 8.50
10
6122243400
ref: 10
CAP,SWINGINGARM PIVOT
€ 4.00
11-1
6127319C00
ref: 11-1
MODEL J
BUFFER,CHAIN TOUCH DEFLECTOR
€ 46.00
11-2
6127320C00
ref: 11-2
MODEL K/L/M/N/P/R/S/
BUFFER,CHAIN TOUCH DEFENSE
€ 24.50
12
6131027A01
ref: 12
CASE,CHAIN
€ 48.00
13-1
0151706105
ref: 13-1
MODEL J/K
BOLT
€ 2.50
13-2
0214206104
ref: 13-2
MODEL L/M/N/P
SCREW
€ 2.00
13-3
0214206123
ref: 13-3
MODEL R/S/T
SCREW 6X12
€ 2.00
14
0916906026
ref: 14
WASHER
€ 2.00
15
6431019C00
ref: 15
TORQUE LINK,REAR
€ 20.50
16
0911110016
ref: 16
BOLT(10X41)
€ 6.50
17
0910110036
ref: 17
BOLT(10X35)
€ 4.50
18
0916010069
ref: 18
WASHER (10X18X3.2)
€ 2.00
19-1
0831441108
ref: 19-1
MODEL J/K/L/M/N/P
NUT
€ 2.50
19-2
0831440103
ref: 19-2
MODEL R/S/T
NUT
€ 2.50
20
0411120208
ref: 20
PIN 20X20
€ 1.50
