CLUTCH

GT250 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

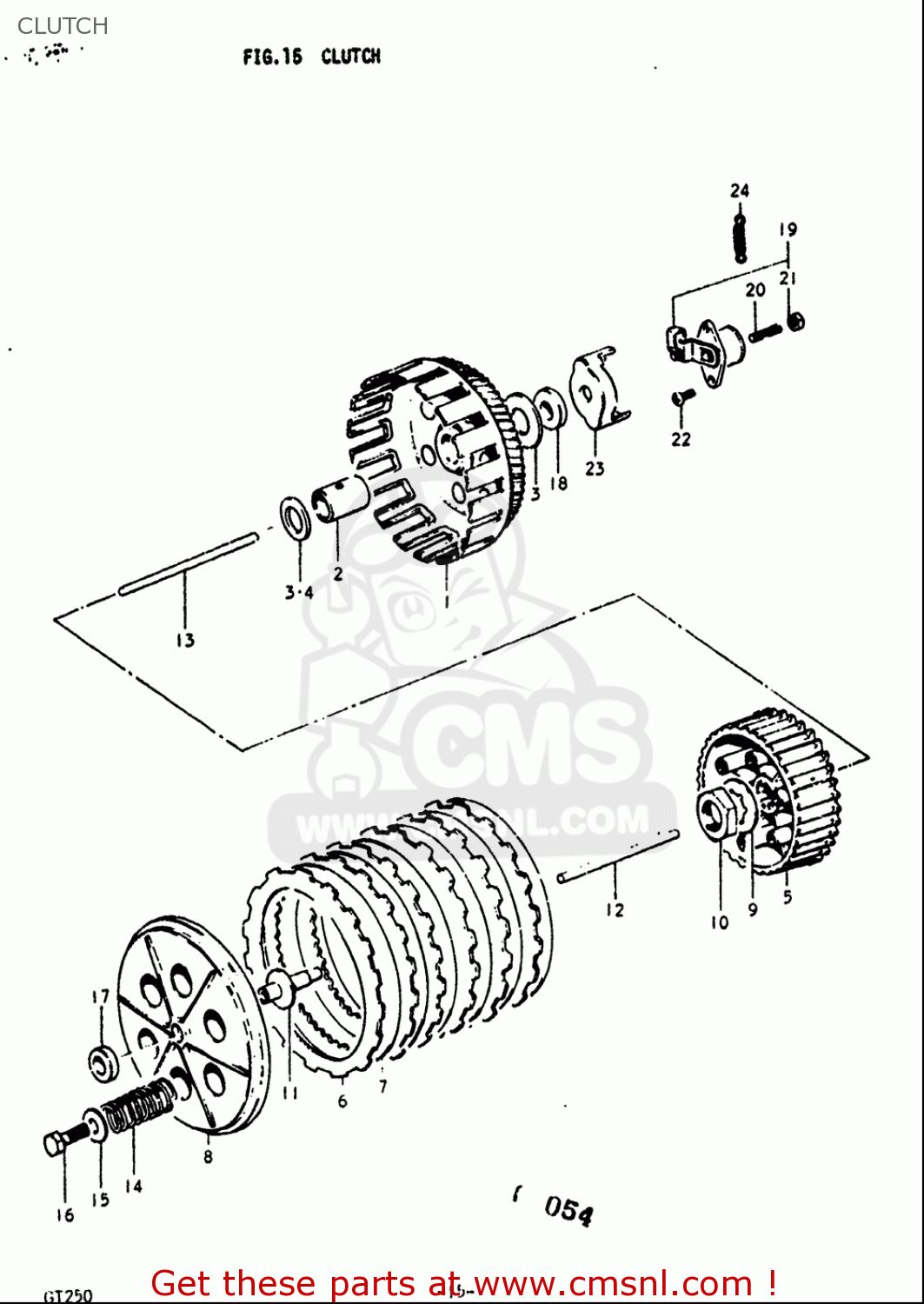

Clutch diagram GT250 1973 1974 1975 1976 1977 (K) (L) (M) (A) (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

2125113E00
ref: 2

SPACER,PRIMARY DRIVEN GEAR

€ 11.50

3-1

0916020028
ref: 3-1

WASHER(20X38X2)

€ 6.50

3-2

0821125443
ref: 3-2

WASHER

€ 3.00

6-2

2144237401
ref: 6-2

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

7-1

2145131000
ref: 7-1

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

7-2

2145131000
ref: 7-2

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

0916720009
ref: 9

WASHER,LOCK

€ 3.00

0914020001
ref: 10

NUT

€ 3.50

2311110000
ref: 12

ROD,CLUTCH PUSH

€ 7.50

2311118001
ref: 13

ROD, CLUTCH PUSH B

€ 11.50

14-2

0944019004
ref: 14-2

SPRING

€ 3.00

0916006066
ref: 15

WASHER(6.5X20X1.6)

€ 2.00

0150006167
ref: 16

BOLT

€ 3.00

0928410002
ref: 17

SEAL,OIL (10X17X5)

€ 3.50

0928506005
ref: 18

SEAL,OIL (6X30X5)

€ 5.00

0913406010
ref: 20

SCREW(6X25)

€ 3.00

0831000067
ref: 21

NUT

€ 2.50

0211206127
ref: 22

SCREW

€ 2.00

0944308001
ref: 24

SPRING

€ 3.00
