PILOT LAMP BOX
GV1200GLF MADURA 1986 (G) USA (E03)

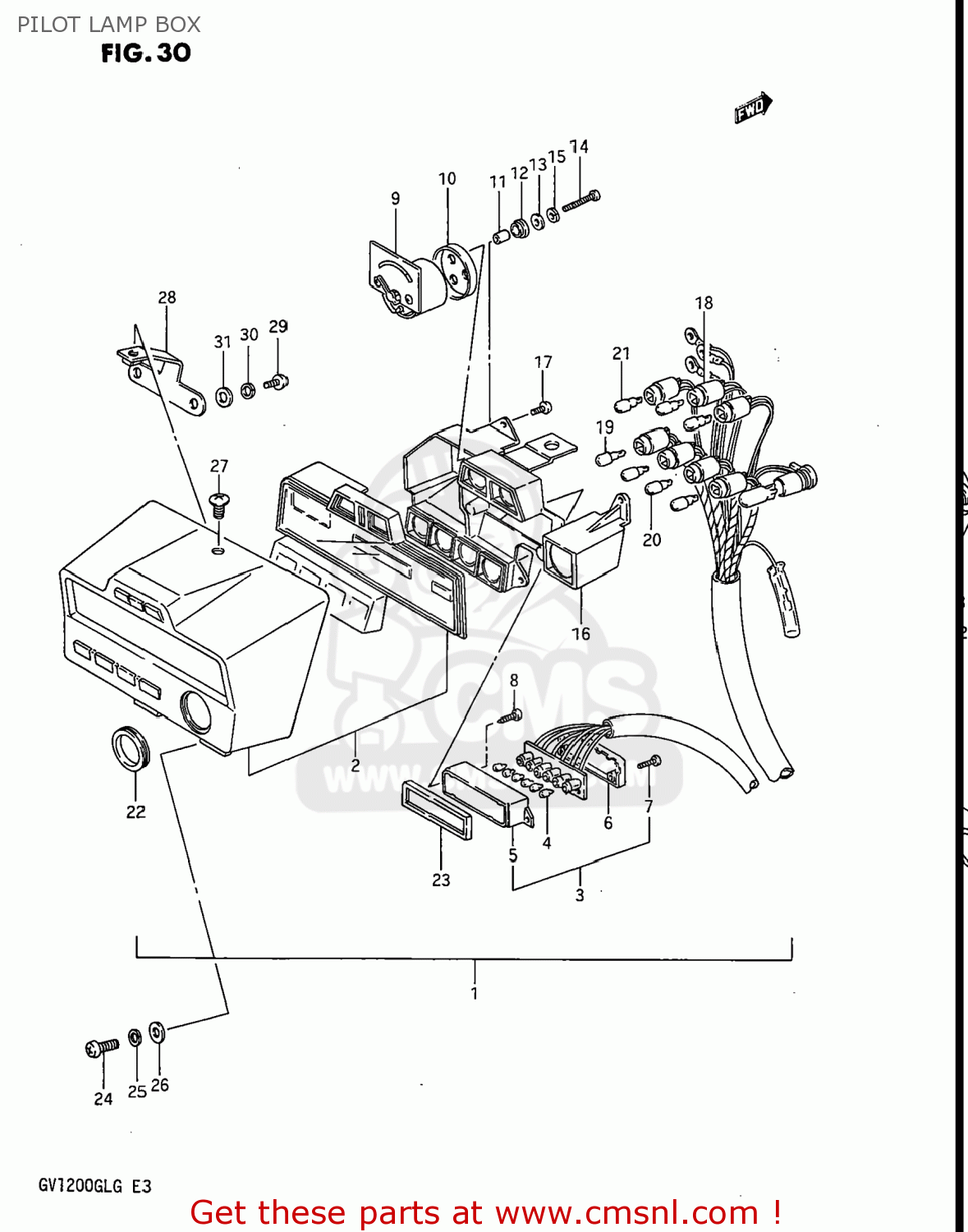

Pilot lamp box diagram GV1200GLF MADURA 1986 (G) USA (E03)
PILOT LAMP BOX GV1200GLF MADURA 1986 (G) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3638005A00
ref: 1
BOX ASSEMBLY,PILOT LAMP
€ 161.00
2
3630005850
ref: 2
COVER SET,PILOT BOX
€ 57.00
3
3645005A00
ref: 3
INDICATOR,GEAR POSITION
€ 77.00
4
0947112071
ref: 4
BULB(14V1.12W)
€ 5.00
5
3645205A00
ref: 5
CASE,GEAR INDICATOR
€ 13.00
6
3645445100
ref: 6
COVER,LWR
€ 7.00
7
3645645100
ref: 7
03511-03146
SCREW,GEAR INDICATOR
€ 2.00
8
3645633220
ref: 8
35625-01A00
SCREW,INDICATOR
€ 1.50
9
3442005A00
ref: 9
METER,WATER TEMPERATURE
€ 60.50
10
3639105A00
ref: 10
PAD
€ 4.00
11
3639705A00
ref: 11
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.50
12
3638405A00
ref: 12
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.50
13
3438433220
ref: 13
WASHER,FUEL METER
€ 2.00
14
0211203306
ref: 14
SCREW
€ 0.00
15
0832121036
ref: 15
08321-2103B
LOCK WASHER
€ 1.50
16
3638305A00
ref: 16
CASE,PILOT BOX,LOWER
€ 20.50
17
0214203126
ref: 17
SCREW
€ 2.00
18
3639405A00
ref: 18
SOCKET,PILOT LAMP
€ 59.50
19
0947112103
ref: 19
BULB(12V3W,T6.5)
€ 2.50
20
0947112108
ref: 20
BULB(12V1.7W,T6.5)
€ 2.00
21
0947112028
ref: 21
BULB(12V3.4W,T10)
€ 3.50
22
3639505A00
ref: 22
CUSHION
€ 3.00
23
3639605A00
ref: 23
GASKET
€ 4.00
24
0211206165
ref: 24
02112-0616A
SCREW
€ 2.00
25
0832121064
ref: 25
08321-0106A
WASHER,LOCK
€ 2.00
26
0832221064
ref: 26
08322-0106B
WASHER
€ 2.00
27
0214206125
ref: 27
02142-0612A
SCREW 6X12
€ 2.00
28
3639805A00
ref: 28
NO PRODUCT DESCRIPTION AVAILABLE
€ 3.00
29
0211205125
ref: 29
02112-0512A
SCREW
€ 1.50
30
0832121055
ref: 30
08321-0105A
WASHER,LOCK
€ 3.00
31
0832221055
ref: 31
08322-0105A
WASHER,5MM
€ 2.50
