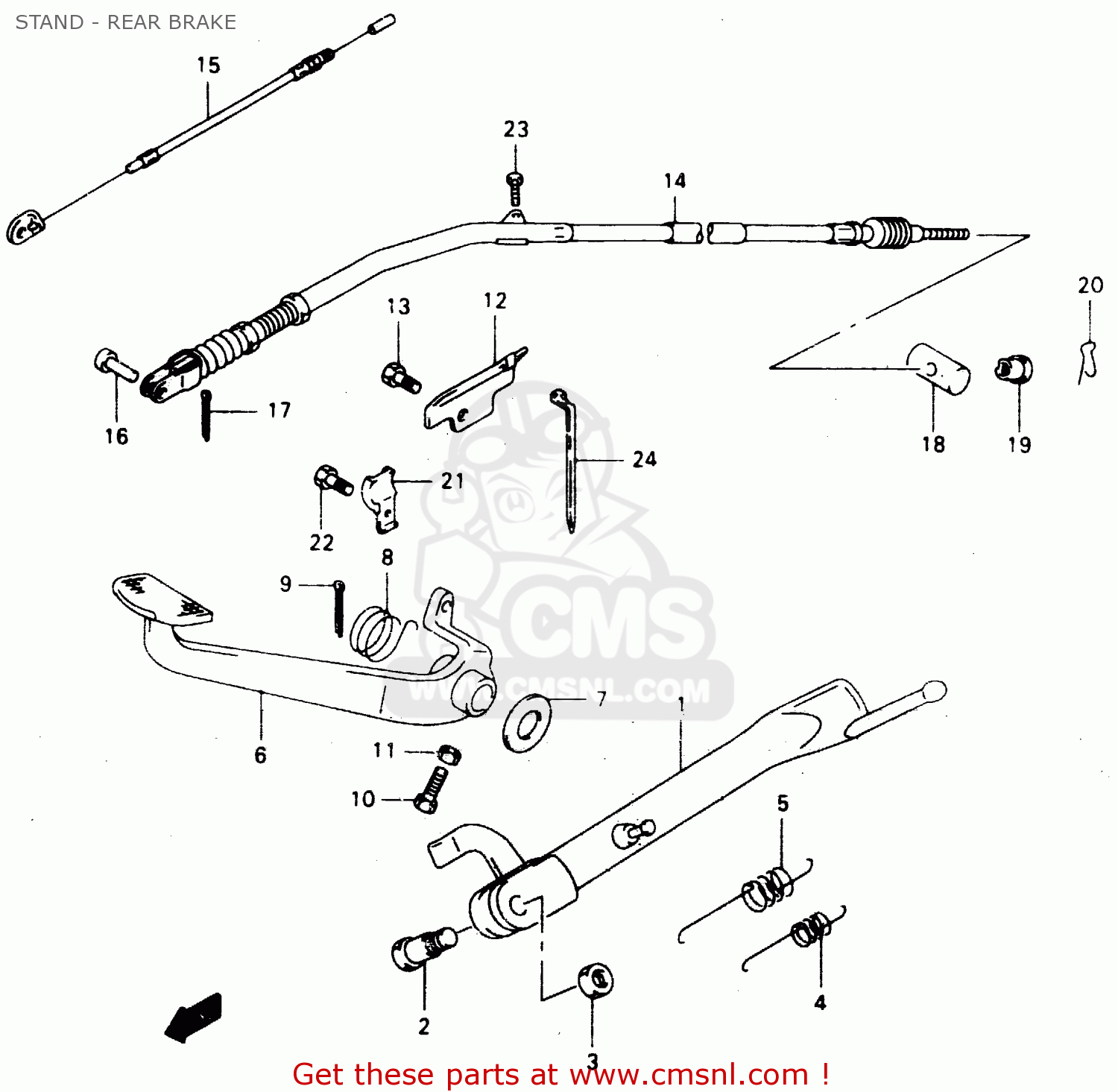

STAND - REAR BRAKE - GZ125U 1999 (X) (E01)

ref

part #

description

quantity

1

4231012F00
ref: 1

STAND,PROP

€ 48.50

2

0911110027
ref: 2

BOLT(10X34)

€ 3.50

3

0915910097
ref: 3

NUT

€ 5.00

4

0944314066
ref: 4

SPRING

€ 5.00

5

0944319012
ref: 5

SPRING

€ 5.50

6

4311012F00
ref: 6

PEDAL,BRAKE

€ 65.50

7

0916016043
ref: 7

WASHER(16.5X22X1)

€ 2.00

8

0944831034
ref: 8

SPRING

€ 5.50

9

0411130308
ref: 9

COTTER PIN

€ 1.50

10

0150006207
ref: 10

BOLT

€ 2.00

11

0831000067
ref: 11

NUT

€ 2.50

12

4313112F00
ref: 12

GUARD,BRAKE CABLE

€ 7.00

13

0155006103
ref: 13

BOLT

€ 2.50

14

5851012F00
ref: 14

CABLE COMP,REA

€ 113.00

15

5883012F00
ref: 15

CABLE,STOP LAMP SWITCH

€ 31.00

16

0920005001
ref: 16

PIN(L:17.5)

€ 1.50

17

0411120158
ref: 17

PIN

€ 1.50

18

0920913018
ref: 18

PIN(13X18)

€ 3.50

19

0915006014
ref: 19

NUT

€ 3.50

20

0938506012
ref: 20

CLIP

€ 2.00

21

5862112F00
ref: 21

GUIDE,RR BRAKE CABLE

€ 8.00

22

0155006123
ref: 22

BOLT

€ 2.50

23

0713006163
ref: 23

BOLT,OIL FILLE

€ 3.00

24

0940714407
ref: 24

CLAMP(L:145)

€ 4.00

STAND - REAR BRAKE

all assemblies
