JR50 1985 (F) USA (E03)

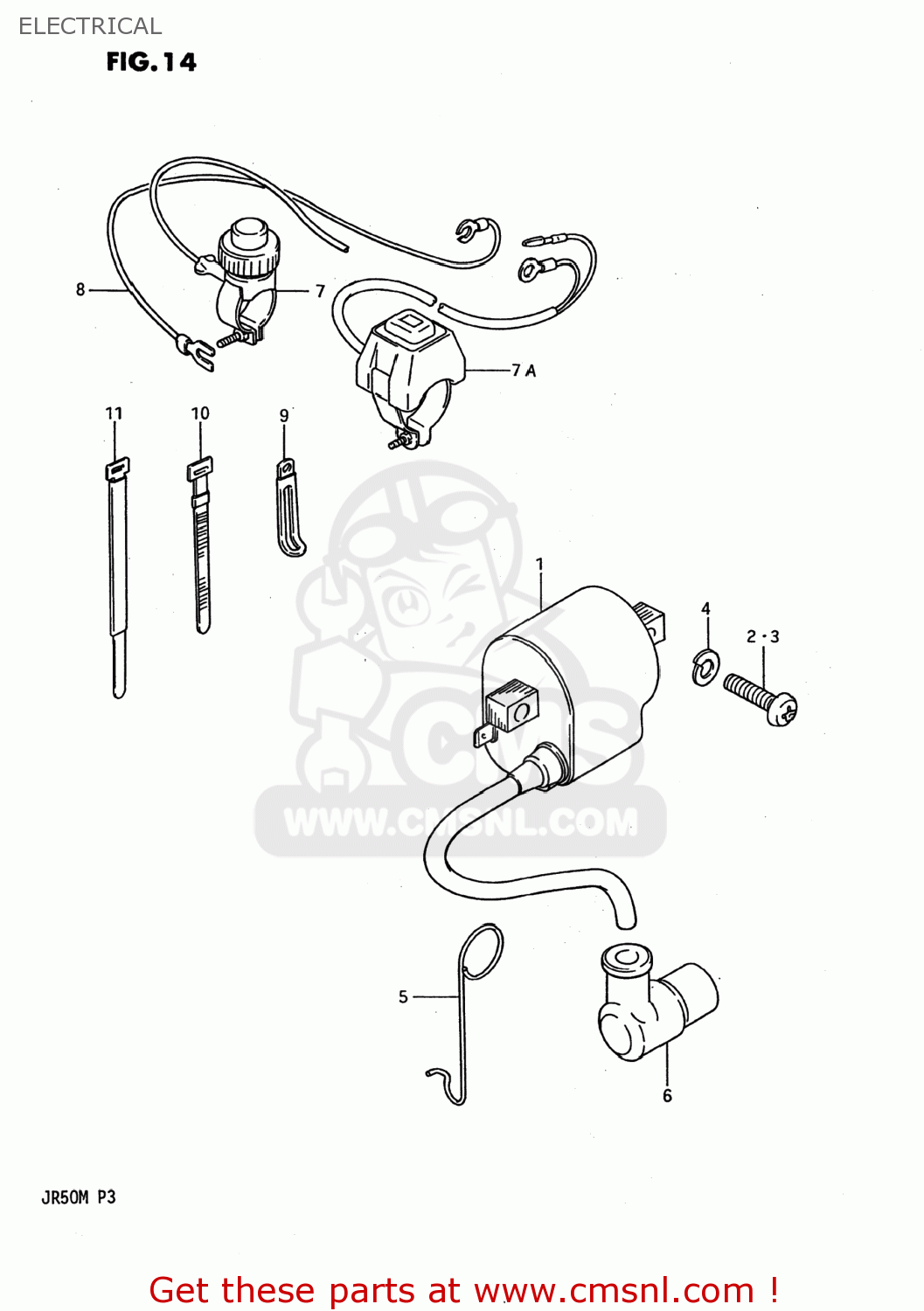

Electrical diagram JR50 1985 (F) USA (E03)
ELECTRICAL JR50 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3341017310
ref: 1
33410-35340
COIL ASSEMBLY,IGNITION
€ 190.50
2
0211206208
ref: 2
02112-06207
SCREW
€ 2.00
3
0211206258
ref: 3
02112-06257
SCREW
€ 2.00
4
0832121067
ref: 4
08321-01067
WASHER,LOCK
€ 2.50
5
5862604410
ref: 5
CLIP
€ 0.00
6
3351041111
ref: 6
33510-20A02
CAP,SPARK PLUG
€ 23.00
7
3782004440
ref: 7
37820-14X50
SWITCH ASSEMBLY
€ 24.50
7A
3782027C00
ref: 7A
37820-14X50
SWITCH ASSEMBLY
€ 24.50
8
3685104410
ref: 8
36851-41200
WIRE
€ 6.00
9
0940406402
ref: 9
09404-06432
CLAMP
€ 2.50
10
0940712402
ref: 10
CLAMP(L:120)
€ 3.00
11
0940718301
ref: 11
CLAMP
€ 6.00
