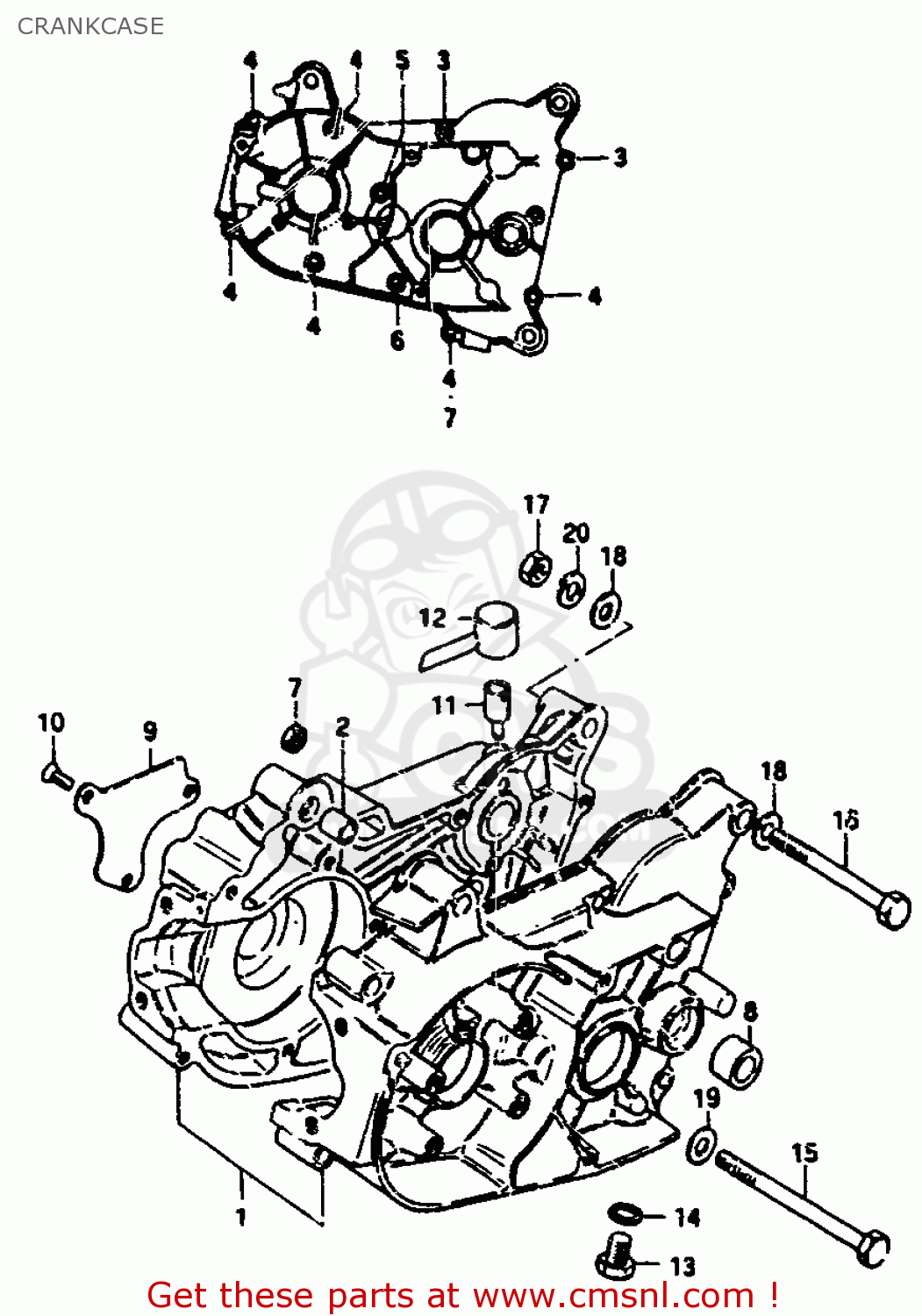

CRANKCASE

ref

part #

description

quantity

1

1130004840
ref: 1

CRANKCASE ASSEMBLY

€ 291.00

2

0421111129
ref: 2

PIN

€ 2.00

3

0211206308
ref: 3

SCREW 6X30

€ 2.50

4

0211206357
ref: 4

SCREW

€ 2.50

5

0211206407
ref: 5

SCREW

€ 2.00

6

0211206558
ref: 6

SCREW

€ 2.50

7

0831011067
ref: 7

NUT 6MM

€ 2.50

8

0930410005
ref: 8

BUSH

€ 6.00

9

1252104000
ref: 9

PLATE,OIL RESERVOIR

€ 6.50

10

0212204108
ref: 10

SCREW

€ 2.50

11

2482109000
ref: 11

PLUG,TRANSMISSION BREATHER

€ 5.50

12

2482220000
ref: 12

GASKET (NAS)

€ 16.00

13

0924710001
ref: 13

PLUG

€ 3.00

14

0916810002
ref: 14

GASKET(10X14X3.6) (NAS)

€ 2.00

15

0110708858
ref: 15

BOLT

€ 2.50

16

0110708708
ref: 16

BOLT

€ 2.50

17

0831012088
ref: 17

NUT

€ 2.00

18

0832211088
ref: 18

WASHER

€ 2.00

19

0916008030
ref: 19

WASHER

€ 2.50

20

0832121088
ref: 20

LOCK WASHER

€ 2.00
