CYLINDER

JR50 1987 (H)

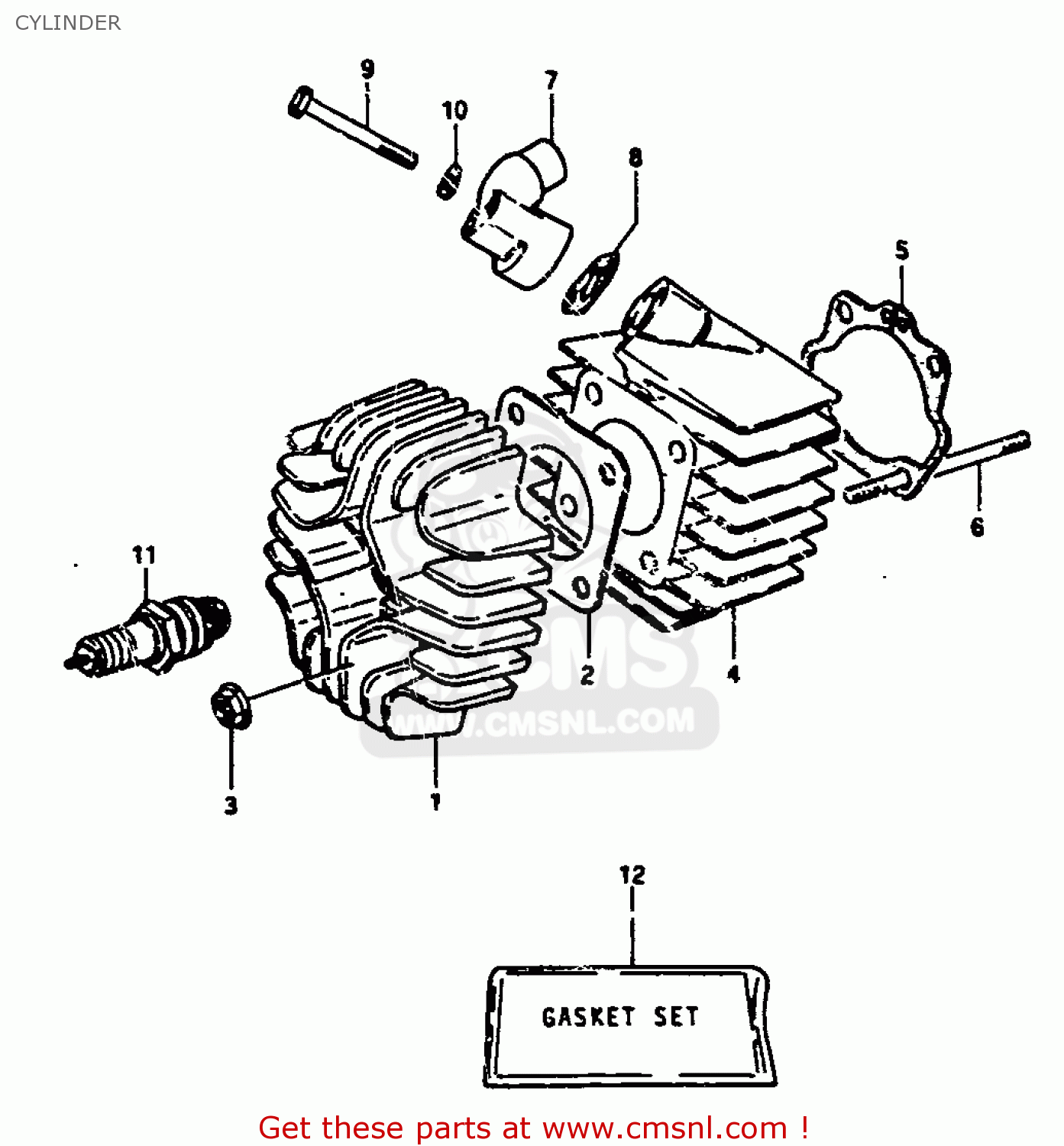

Cylinder diagram JR50 1987 (H)

CYLINDER JR50 1987 (H)

CYLINDER JR50 1987 (H)

prices are in EUR

ref

part #

description

quantity

1

1111104001
ref: 1

HEAD,CYLINDER

€ 47.00

2

1114104000
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 4.50

3

0915906017
ref: 3

NUT

€ 2.50

4

1121104001
ref: 4

CYLINDER

€ 116.50

5

1124104000
ref: 5

GASKET,CYLINDER (MCA)

€ 4.00

6

0142106908
ref: 6

STUD BOLT

€ 4.50

7

1311104001
ref: 7

PIPE,INTAKE

€ 12.50

8

1312104000
ref: 8

GASKET (NAS)

€ 4.00

9

0110706458
ref: 9

BOLT

€ 2.00

10

0832121067
ref: 10

WASHER,LOCK

€ 2.50

11-1

0948200290
ref: 11-1

PLUG,SPARK(BP4H)

€ 7.50

11-2

0948200138
ref: 11-2

SPARK PLUG W14FP

€ 2.50

12

1140004830
ref: 12
OPT

GASKET SET (MCA)

€ 28.50
