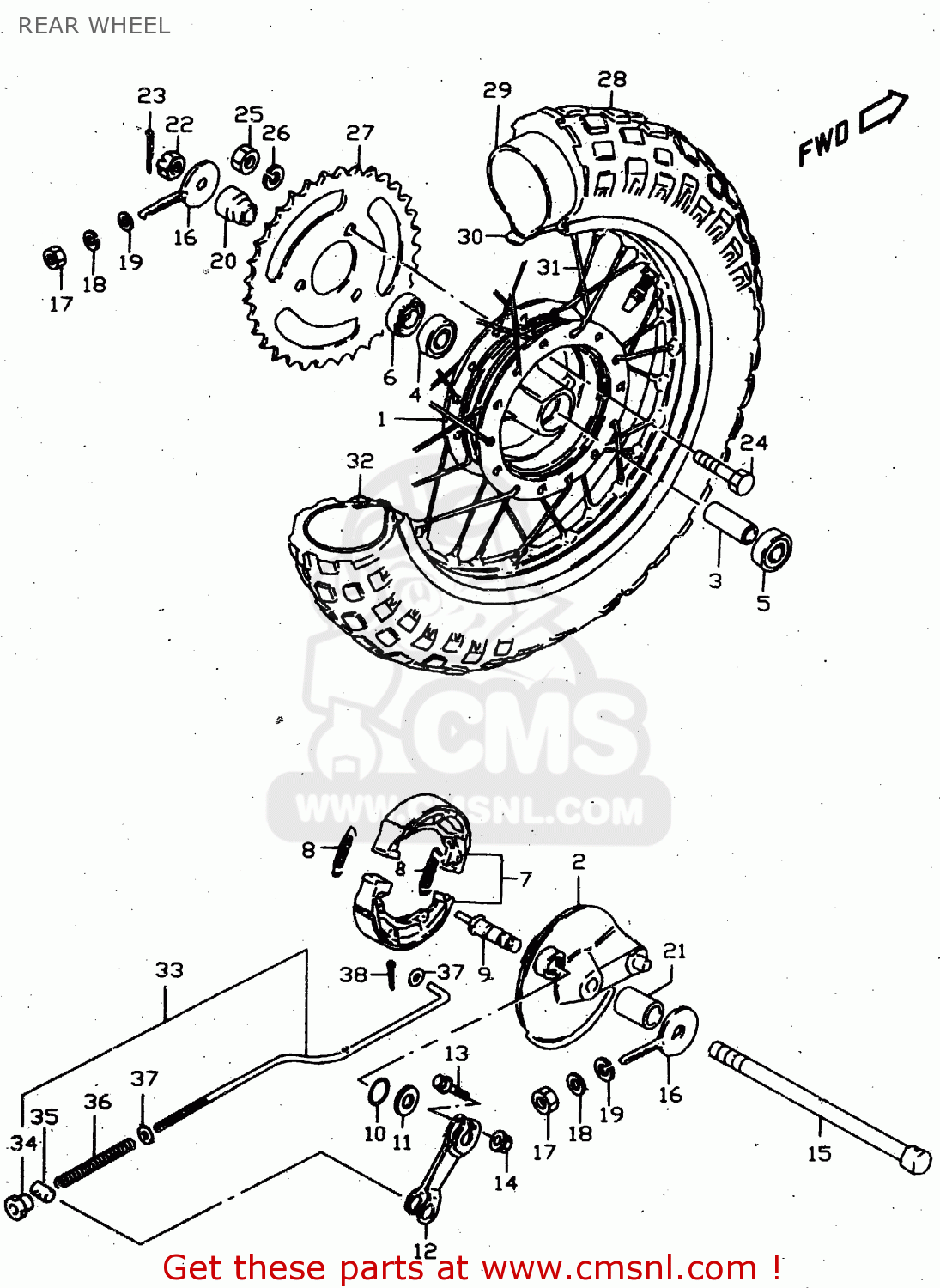

REAR WHEEL

ref

part #

description

quantity

1

6411004400
ref: 1

HUB,RR WHEEL

€ 157.00

2

6421004400
ref: 2

PANEL,RR BRAKE ANCHOR

€ 36.50

3

0918010149
ref: 3

SPACER(10.2X16X55)

€ 4.50

4

0926210015
ref: 4

BEARING(10X26X8)

€ 12.00

5

0814360007
ref: 5

BEARING

€ 8.50

6

0928415004
ref: 6

SEAL,OIL(15X27X6)

€ 4.50

7

6440004811
ref: 7

SHOE & SPRING SET (NAS)

€ 19.00

8

0944307025
ref: 8

SPRING(L:35.8)

€ 2.50

9

5444104001
ref: 9

CAM,BRAKE

€ 8.50

10

0928010013
ref: 10

O RING(D:2.4,ID:9.6)

€ 5.50

11

0916010121
ref: 11

WASHER(10.5X18X1)

€ 2.00

12

6445104000
ref: 12

LEVER,RR BRAKE CAM

€ 24.50

13

0155005253
ref: 13
MODEL T

BOLT

€ 1.50

13

0216205303
ref: 13
MODEL V/W/X

SCREW

€ 2.00

14

0831610053
ref: 14

NUT

€ 2.50

15

5471104410
ref: 15

AXLE,RR

€ 27.50

16

6141104000
ref: 16

ADJUSTER,CHAIN

€ 4.50

17

0831000063
ref: 17

NUT 6MM

€ 2.00

18

0832101063
ref: 18

LOCK WASHER

€ 2.00

19

0832201063
ref: 19

WASHER

€ 2.00

20

6475104410
ref: 20

SPACER,RR AXLE,L

€ 4.50

21

6474104410
ref: 21

SPACER,RR AXLE,R

€ 3.00

22

0914110006
ref: 22

NUT

€ 2.50

23

0411120208
ref: 23

PIN 20X20

€ 1.50

24

0910508011
ref: 24

BOLT(8X36)

€ 2.00

25

0831000083
ref: 25

NUT

€ 1.50

26

0916208008
ref: 26

WASHER,LOCK

€ 2.00

27

6451104411
ref: 27

SPROCKET,RR

€ 22.50

28

5510004410
ref: 28

TIRE

€ 141.50

29

5520004410
ref: 29

TUBE,INNER

€ 17.00

30

5526104410
ref: 30

PROTECTOR,INNER TUBE

€ 4.50

31

5530004820
ref: 31

SPOKE SET,RR

€ 51.50

32

5531104410
ref: 32

RIM,WHEEL

€ 269.00

33

4330004410
ref: 33

ROD ASSY,RR BRAKE

€ 6.00

34

0915005003
ref: 34

NUT

€ 3.50

35

0920910001
ref: 35

PIN,10X19

€ 2.00

36

0944009004
ref: 36

SPRING

€ 2.00

37

0832201053
ref: 37

WASHER

€ 2.50

38

0411120158
ref: 38

PIN

€ 1.50

all assemblies
