FRAME/FOOTREST
JR50 2001 (K1) USA (E03)

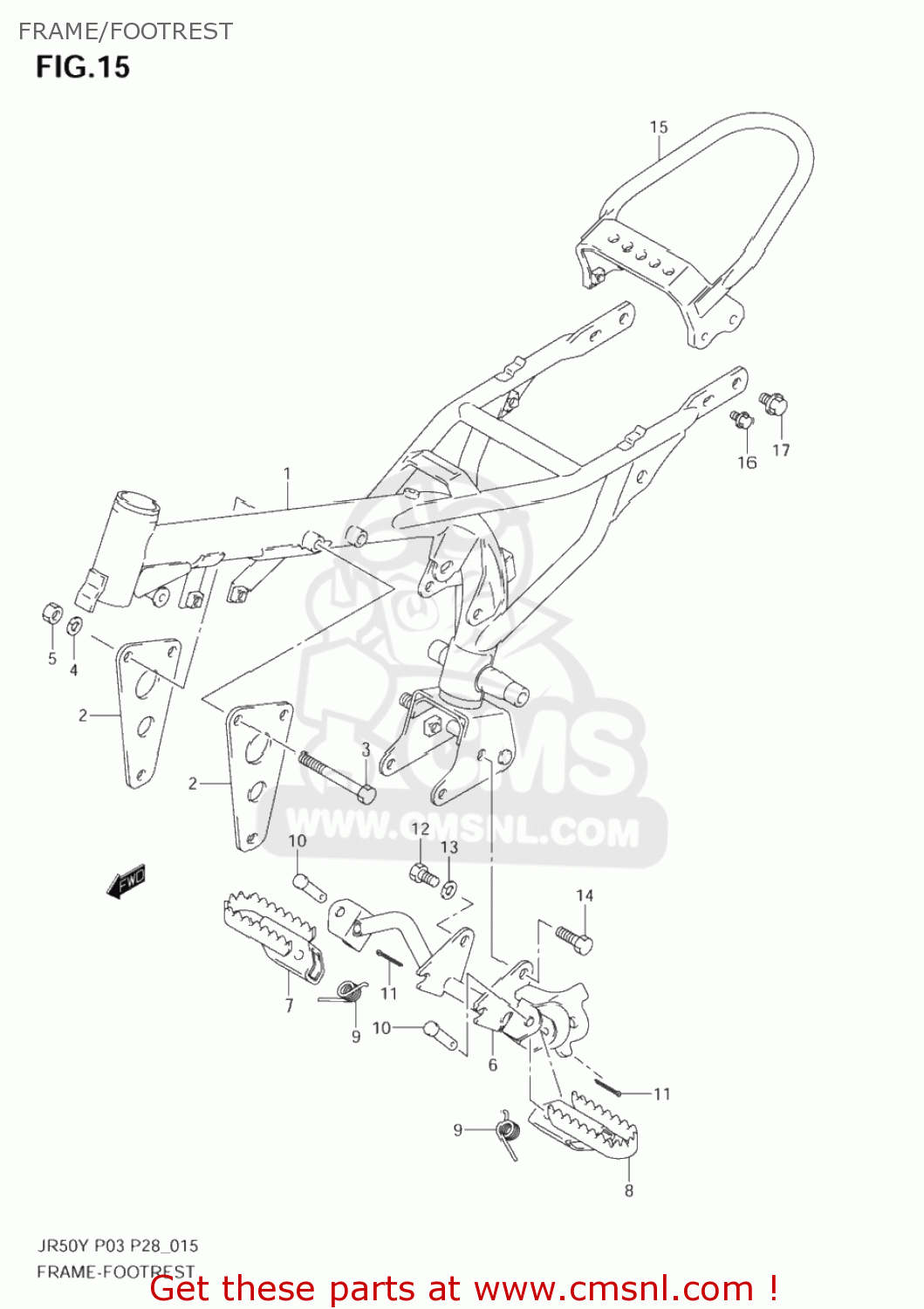

Frame/footrest diagram JR50 2001 (K1) USA (E03)
FRAME/FOOTREST JR50 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110009AA0019
ref: 1
FRAME(BLACK)
€ 0.00
2
4199104410
ref: 2
PLATE,ENG MTG
€ 0.00
3
0150008703
ref: 3
01500-0870B
BOLT
€ 2.50
4
0832101083
ref: 4
08321-0108A
LOCK WASHER
€ 2.50
5
0831000083
ref: 5
08310-0008A
NUT
€ 1.50
6
4351004411
ref: 6
BAR,FR FOOTREST
€ 22.50
7
4355046000019
ref: 7
FOOTREST,FR,R
€ 9.00
8
4356046000019
ref: 8
FOOTREST,FR,L
€ 9.00
9
0944814012
ref: 9
SPRING
€ 3.00
10
0920008002
ref: 10
PIN
€ 2.00
11
0411120158
ref: 11
04111-2015A
PIN
€ 1.50
12
0150008163
ref: 12
01500-0816B
BOLT
€ 2.00
13
0832101083
ref: 13
08321-0108A
LOCK WASHER
€ 2.50
14
0910008143
ref: 14
BOLT(8X14)
€ 2.50
15
4398009AA0
ref: 15
GRIP,RR
€ 0.00
16
0155006103
ref: 16
01550-0610A
BOLT
€ 2.50
17
0155008123
ref: 17
01550-0812A
BOLT
€ 3.50
