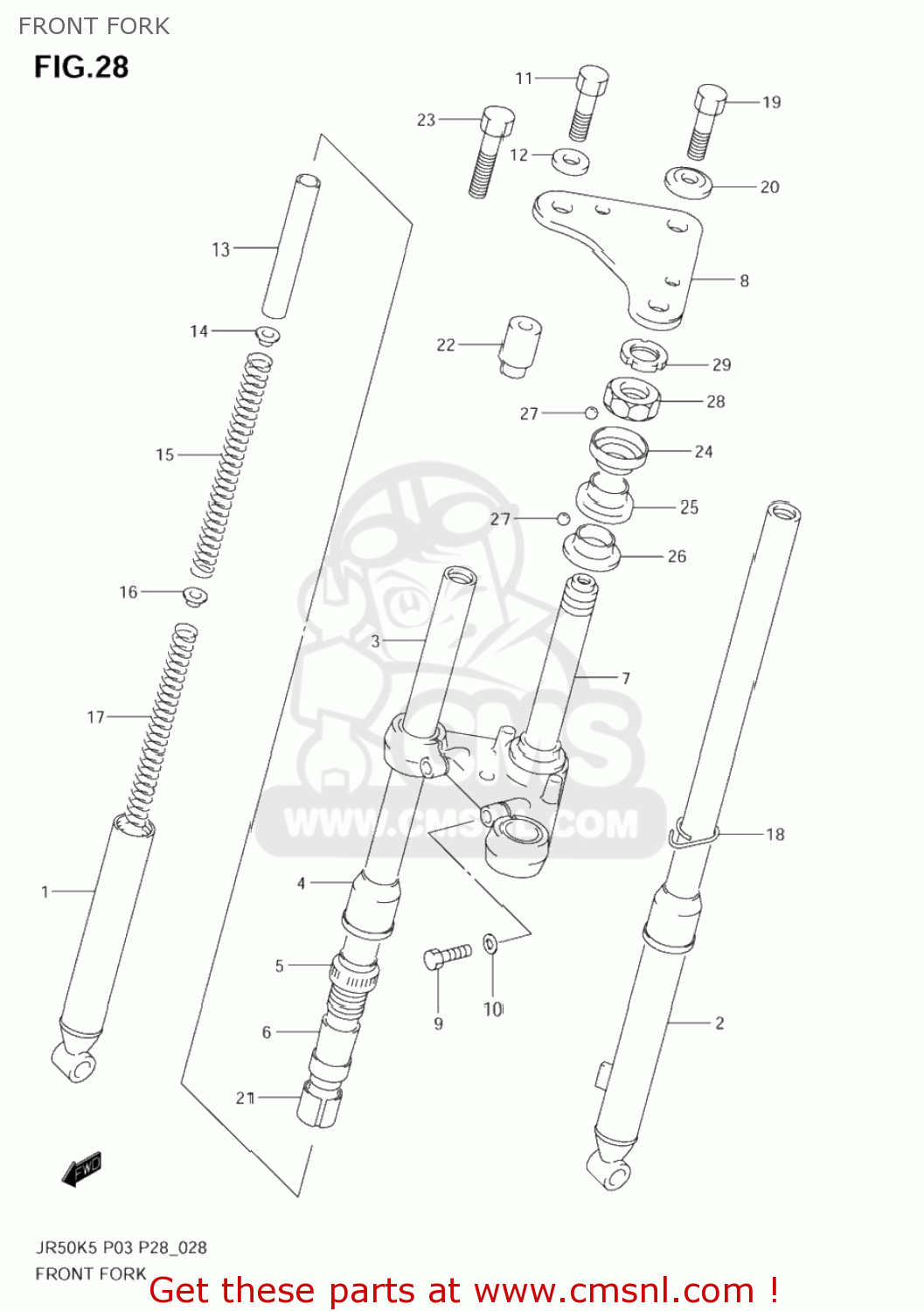

FRONT FORK

ref

part #

description

quantity

511000443013L
ref:

FORK ASSY,FR

€ 288.50

1

511300441113L
ref: 1

TUBE,OUTER,R

€ 0.00

2

511400441113L
ref: 2

TUBE,OUTER,L

€ 0.00

3

5111004420
ref: 3

TUBE,INNER

€ 39.50

4

5117304410
ref: 4

SEAL,DUST

€ 7.50

5

5115004410
ref: 5

NUT,OUTER

€ 10.50

6

5119304410
ref: 6

STOPPER

€ 2.50

7

5141004430
ref: 7

STEM,STEERING

€ 54.00

8

5131004430
ref: 8

HEAD,STEERING STEM

€ 16.00

9

0150008257
ref: 9

BOLT

€ 2.50

10

0832101087
ref: 10

WASHER,LOCK

€ 2.00

11

5135204420
ref: 11

BOLT

€ 2.50

12

5135607010
ref: 12

WASHER,STEERING STEM HEAD

€ 5.00

13

5117604420
ref: 13

SPACER

€ 0.00

14

5117204420
ref: 14

GUIDE,SPRING

€ 0.00

15

5117104420
ref: 15

SPRING,NO.1

€ 0.00

16

5117204410
ref: 16

GUIDE,SPRING NO.2

€ 4.00

17

5118404420
ref: 17

SPRING,NO.2

€ 0.00

18

5157204410
ref: 18

CLIP

€ 0.00

19

5135104420
ref: 19

BOLT

€ 3.50

20

5135604420
ref: 20

WASHER(33.5X10.5X4.2)

€ 3.00

21

5112104430
ref: 21

BUSH,SLIDE(33221-00801)

€ 6.50

22

5233104420
ref: 22

SPACER,FR FORK INNER TUBE

€ 8.50

23

0910010302
ref: 23

BOLT(10X52)

€ 3.50

24

5161119G00
ref: 24

RACE,STEERING INNER UPR

€ 8.00

25

5161219G00
ref: 25

RACE,STEERING INNER LWR

€ 8.50

26

5162229C10
ref: 26
51622-29C20

RACE,STEERING,OUTER,LOWER

€ 4.50

27

0611105004
ref: 27

BALL

€ 1.50

28

5162102200
ref: 28
51621-16A01

RACE,STEERING,OUTER,UPPER

€ 7.00

29

9980010420
ref: 29

NUT

€ 7.50
